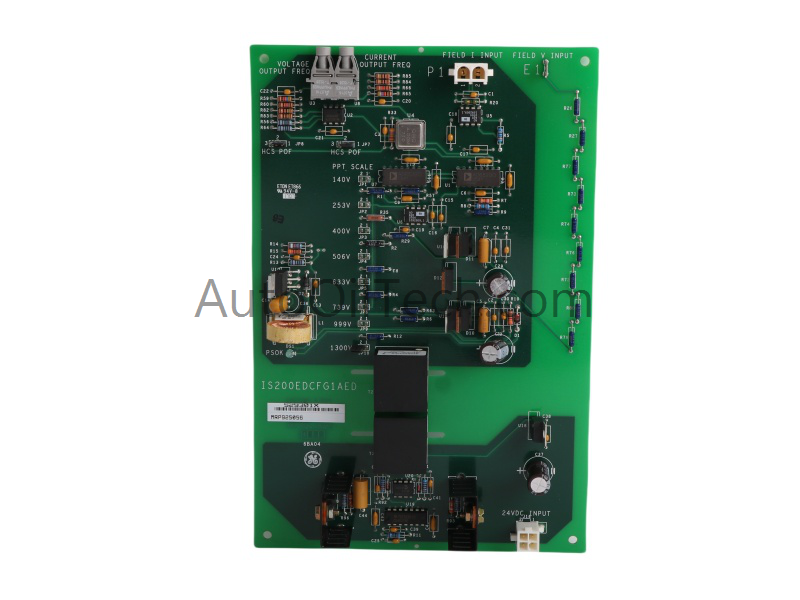

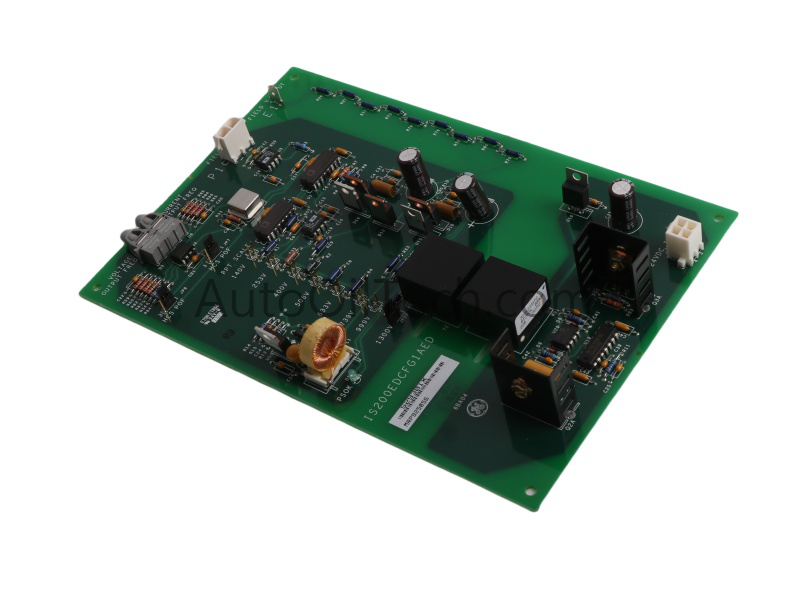

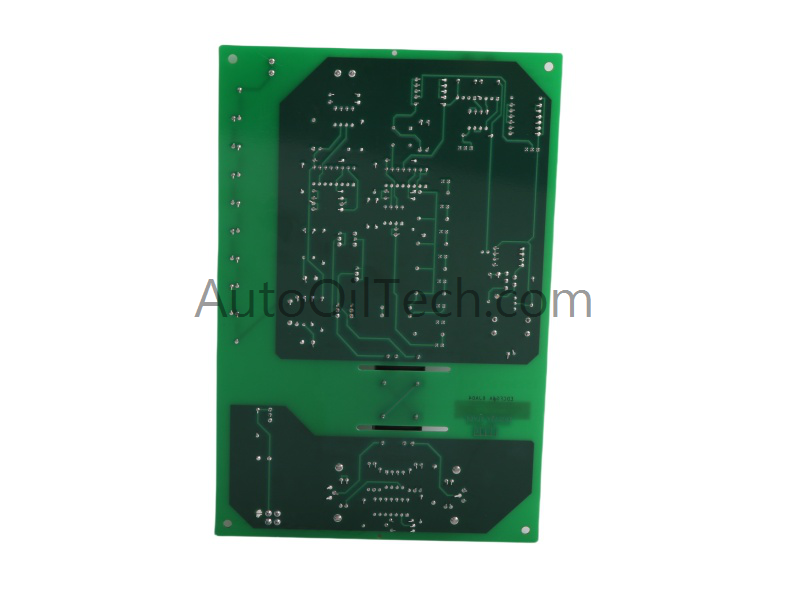

GE IS200EDCFG1BAA Exciter DC Feedback Board is a critical component of the EX2100 excitation system, designed to measure field current and voltage across the SCR bridge and provide reliable feedback for turbine generator control.
Specifications:
Manufacturer: General Electric (GE)
Part Number: IS200EDCFG1BAA
Product Type: Exciter DC Feedback Board
Series: EX2100
Country of Manufacture: USA
Size: 15.9 cm (H) × 10.2 cm (W)
Technology: Surface‑mount
Operating Temperature: –30°C to +65°C
Availability: In Stock
Functional Description:
Feedback Measurement: Monitors field current and voltage across the SCR bridge in the EX2100 drive assembly.
Fiber‑Optic Interface: Communicates with the EISB board via high‑speed fiber‑optic link, ensuring voltage isolation and noise immunity.
LED Indicator: Provides visual confirmation of power supply status and board functionality.
Features:
Plastic Fiber Option: Supports up to 10 m connections, ideal for short‑distance control setups.
Hard Clad Silica Fiber Option: Supports up to 90 m connections, suitable for extended layouts.
Minimum Bending Radius: 1.5 inches for both fiber types, ensuring signal integrity during installation.
High Noise Immunity: Fiber‑optic communication minimizes interference in demanding environments.
Robust Reliability: Designed for continuous operation in turbine excitation systems.
