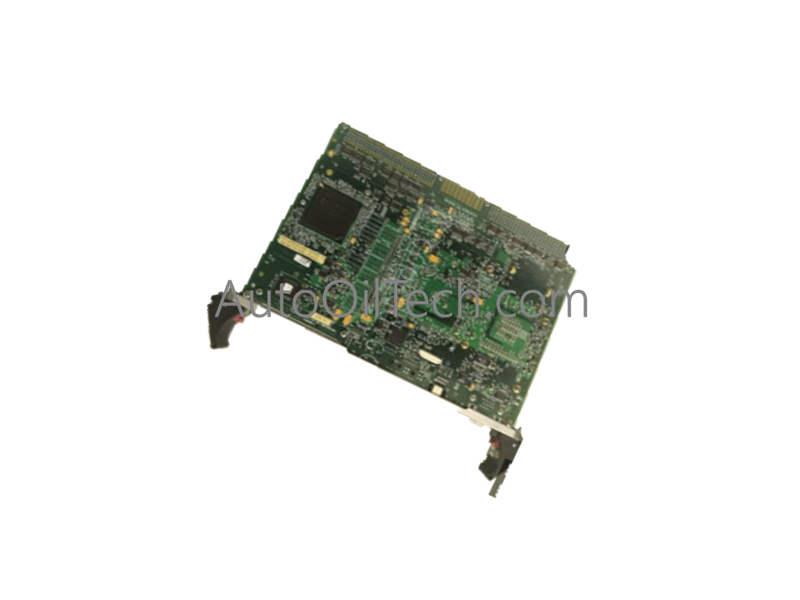

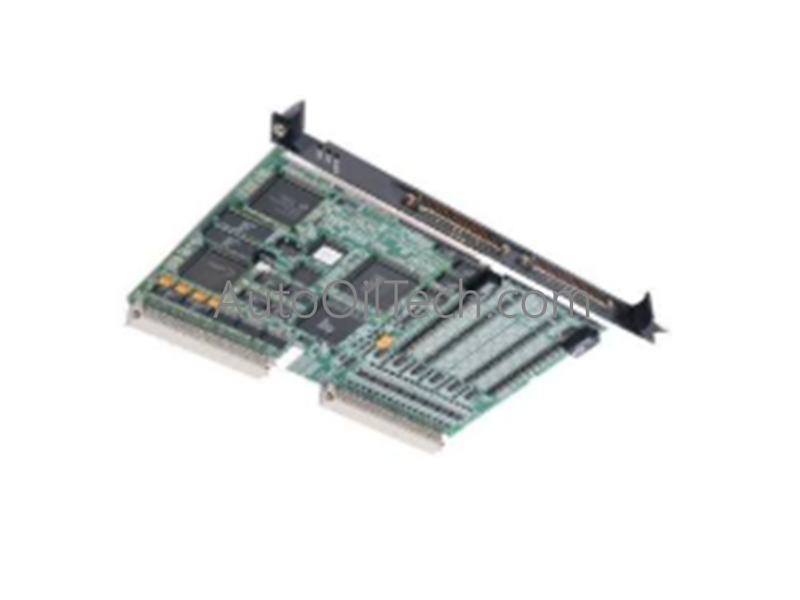

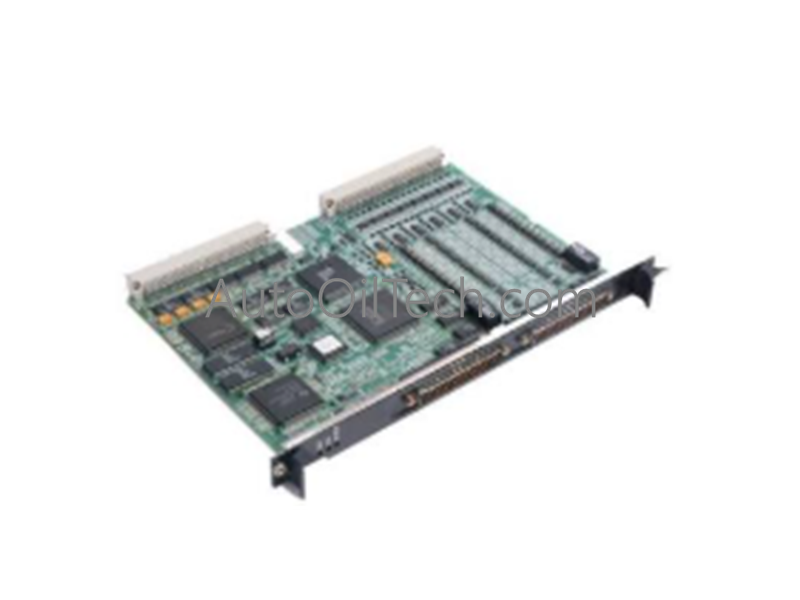

GE IS200ADIIH1ABA Analog Input Interface Module

Configured for high-accuracy signal acquisition in GE Mark VI and Mark VIe ISBus platforms, the GE IS200ADIIH1ABA (IS200ADIIH1ABA Analog Input Interface Module) provides direct electrical execution of analog-to-digital signal conversion. The module serves as the primary IS200ADIIH1ABA Analog Input Interface Module utilized to execute precise monitoring of voltage and current-based turbine sensors across Mark VI and Mark VIe platforms.

Hardware Specifications

Industrial Control and DCS Metrics

• Channel-to-Channel Isolation: The module features an isolation rating of 500 V between individual input channels. This design prevents common-mode noise propagation and ground loops, which is mandatory for maintaining signal integrity in high-EMI environments typical of turbine control cabinets.
• Profinet / EtherNet/IP Deterministic Networks: Integrated into the ISBus architecture, the module supports deterministic data exchange with the turbine controller. It is engineered to maintain consistent scan rates for the 16 differential analog inputs, ensuring that feedback loops for turbine temperature, pressure, and auxiliary drive processes operate with minimal latency.
• I/O Density Scaling: The module supports individual channel configuration for either ±10 V DC or 4–20 mA inputs, providing the I/O flexibility required for complex turbine instrumentation suites. This scalability allows for seamless expansion of analog input density within existing ISBus rack configurations.

Frequently Asked Questions

Q: Is the IS200ADIIH1ABA hot-swappable?

A: No. The IS200ADIIH1ABA is not designed for hot-swapping. The ISBus rack power must be removed and the system state quiesced before module installation or removal to prevent electrical damage to the backplane communication pins or potential disruption of the turbine control bus.

Q: How is the channel configuration for voltage or current inputs performed?

A: Channel configuration is managed via the Mark VI/VIe software toolset. The board supports individual channel software-selectable input types, allowing for a mixed configuration of ±10 V DC and 4–20 mA signals without requiring physical hardware jumpers.

Field Installation Guidelines

• Mechanical Seating: Align the board precisely with the ISBus rack guides before insertion. Ensure the module is fully seated to engage the backplane connector completely; incomplete engagement is a common cause of intermittent analog signal readings or I/O communication fault alarms.
• Shielding and Grounding: Terminate all sensor cable shields at the designated cabinet grounding terminals. Maintain a low-impedance path to ground to ensure that the 500 V channel-to-channel isolation barriers can effectively shunt induced common-mode noise.
• Thermal Management: While the module is rated for up to 65 deg C, ensure that cabinet cooling remains active. Excessive ambient heat in high-density rack configurations can impact the accuracy of the 16-bit A/D conversion if internal thermal limits are approached.
