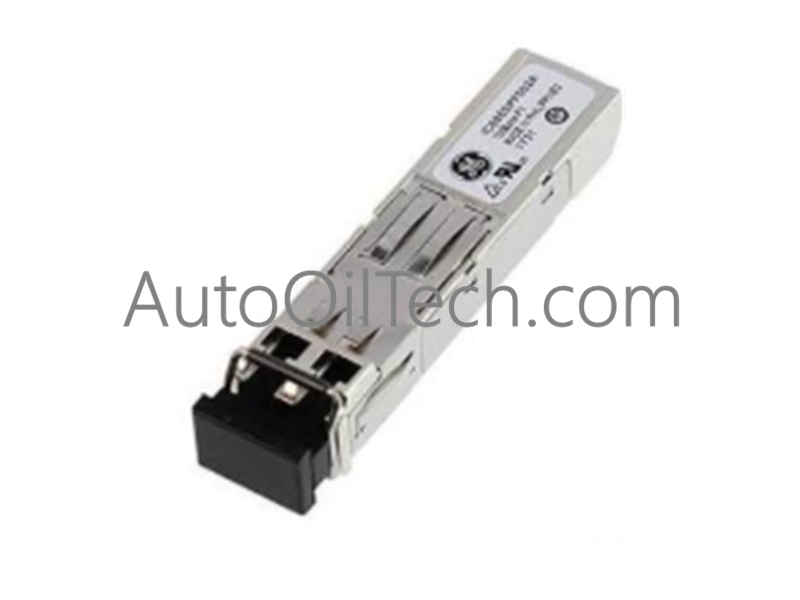

GE IC695SPF002 Transceiver Module
No reviews
في الأوراق المالية!
- Part Number: IC695SPF002
- Brand: General Electric
- Type: Transceiver Module
- Barcode: USA
يشارك
Tags:
GE PACSystem RX3i
,
Transceiver Module
وصف المنتج
Configured for optical network conversion and PROFINET scanner interfacing in PACSystem RX3i platforms, the GE IC695SPF002 (IC695SPF002 SFP Transceiver Module) provides direct physical/electrical execution.
Suffix Breakdown & Model Matrix
| Code / Interface | Hardware Specification |
|---|---|
| IC695 | PACSystem RX3i hardware platform series identifier |
| SPF002 | Small Form-Factor Pluggable (SFP) transceiver module variant |
| MMF Interface | Multi-mode optical fiber interface supporting up to 2 km link distances |
| Dual SFP Cages | Dual optical media sockets supporting 100 Mbps transmission speeds |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC695SPF002 |
| Brand | GE |
| Origin | USA |
| Weight | 0.09 kg (0.19 lbs) |
| Dimensions | Standard SFP Transceiver Form Factor |
| Operating Temp | 0 deg C to 60 deg C (Derated to 57 deg C at 100 Mbps full-load) |
| Power Consumption | 3.3 VDC to 5 VDC internal logic power |
| Medium | Multi-Mode Fiber (MMF) |
| Maximum Distance | 2 km |
| Data Transfer Rate | 100 Mbps |
| Hardware Interfaces | 2 SFP Cages, 2 RJ-45 Ethernet ports |
| Peripheral Features | SD Card slot for PNS configuration transfer, USB firmware port |
Backplane Bus Communication Velocity & Network Synchronization
The optical transceiver module operates within RX3i PROFINET Scanner (PNS) and CPU architectures, converting high-speed copper backplane signals into multi-mode optical bitstreams. Deterministic backplane bus communication velocity is maintained across ring, star, and daisy-chain network topologies without introducing data packet jitter. High-speed I/O density scaling allows synchronized remote rack scanning across 2 km fiber links, while firmware flash compatibility via WinLoader ensures precise network time alignment and protocol execution across PROFINET deterministic networks.
Frequently Asked Questions
Q: What is the primary function of the integrated SD card slot on the host scanner assembly?
A: The SD card stores network device naming parameters, allowing quick configuration transfer to replacement PROFINET Scanner (PNS) modules without requiring a direct PC connection.
Q: What are the thermal operating limitations when running continuous optical communications?
A: The module supports standard operating temperatures up to 60 deg C, but maximum operating temperature limits must be derated to 57 deg C during continuous 100 Mbps transmission.
Q: Can the front panel USB port be utilized for permanent diagnostic monitoring?
A: No, the USB port is designated strictly for temporary firmware upgrades via WinLoader and must not be used as a permanent diagnostic or communication interface.
Field Installation Guidelines
- Ensure the host RX3i rack power supply is fully de-energized or follow ESD hot-swap procedures before inserting the SFP transceiver into the designated scanner cage socket.
- Push the IC695SPF002 transceiver firmly into the SFP cage until the mechanical latch engages with an audible click.
- Remove the protective dust caps from optical transceivers and fiber LC/ST connectors immediately prior to mating to prevent dust particle contamination.
- Maintain fiber optic bend radius limits (minimum 30 mm) along cable routing paths and clean fiber end-faces with lint-free optical wipes prior to final connection.
