  • GE IC693bem330 Communication Scanner Modules

أُوكَازيُون

أُوكَازيُون

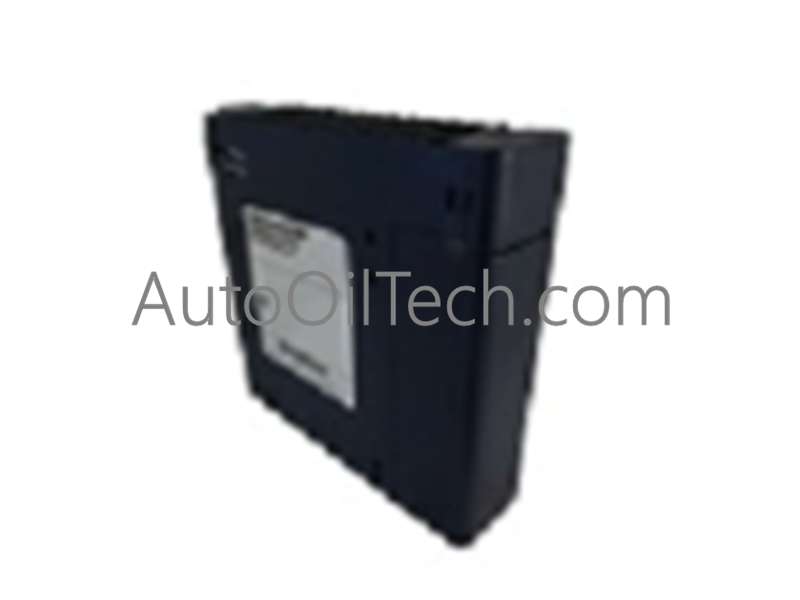

GE IC693bem330 Communication Scanner Modules

في الأوراق المالية!
  • Part Number: IC693bem330
  • Brand: General Electric
  • Type: Communication Scanner Modules
  • Barcode: USA
Tags: Communication Scanner Modules , GE Series 90-30

وصف المنتج

Configured for remote distributed I/O scanning over Factory Instrumentation Protocol (FIP) networks, the GE IC693BEM330 (IC693BEM330 FIP I/O Scanner Module) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

Code Suffix Module Interface & Function Breakdown
IC693 Series 90-30 programmable logic controller hardware family identifier
BEM330 Factory Instrumentation Protocol (FIP) remote I/O scanner module variant
1 MHz FIP WorldFIP protocol communication interface running at 1 MHz data rate
Dual 9-pin D-shell Two female 9-pin D-sub connectors for redundant FIP network channel connections

Hardware Specifications

Parameter Specification
Model IC693BEM330
Brand GE
Origin USA
Weight 0.37 kg (0.81 lbs)
Dimensions Single-slot Series 90-30 Form Factor
Operating Temp 0 deg C to 60 deg C
Power Consumption 609 mA at 5 VDC backplane supply
Protocol Support FIP and WorldFIP (1 MHz transmission rate)
Mounting Location Slot 1 of CPU / Scanner Baseplate
Maximum Modules Up to 19 I/O modules across 2 interconnected baseplates
Communication Ports Two (2) 9-pin D-shell female connectors, one SYNCHRO port (#39-01-4031)
Front Panel Diagnostics CD1, TEN1, CD2, TEN2 LED status indicators

Deterministic Backplane Communication & I/O Density Scaling

The scanner module resides exclusively in Slot 1 of the expansion baseplate to map distributed field data directly to the host CPU. By processing FIP protocol variables at 1 MHz, the unit maintains predictable cycle timing across high I/O density scaling configurations up to 19 expansion cards. Backplane bus communication velocity is optimized to ensure deterministic transfer of discrete and analog I/O points, while firmware flash compatibility maintains synchronous data exchange with Series 90-30, Series 90-70, and remote Bus Interface Units (BIU).

Frequently Asked Questions

Q: What mounting slot restrictions apply to the IC693BEM330 scanner card?

A: The scanner module must be installed strictly in Slot 1 of the CPU or remote scanner baseplate to access the primary backplane control lines.

Q: What is the purpose of the front-panel SYNCHRO connector?

A: The SYNCHRO port terminates the FIP network synchronization cable using a Molex catalog #39-01-4031 connector to preserve timing alignment across network nodes.

Q: What do the front-panel LED indicators signal during operation?

A: CD1 and CD2 indicate Carrier Detection state on FIP Channels 1 and 2, while TEN1 and TEN2 illuminate during active data transmission on their respective channels.

Field Installation Guidelines

  1. Ensure the Series 90-30 rack power supply is fully de-energized prior to inserting the scanner module into Slot 1 of the baseplate.
  2. Align the module circuit board with the Slot 1 guide slots and tilt the top hook into the backplane notch, pressing downward until the bottom connector seats firmly.
  3. Tighten the rear connector seating pin and ensure the Molex SYNCHRO plug is secured if network time synchronization is required.
  4. Route dual 9-pin D-sub FIP communication cables in dedicated wireways separate from high-voltage AC conductors, grounding cable shields at a single point to prevent high-frequency noise interference.
