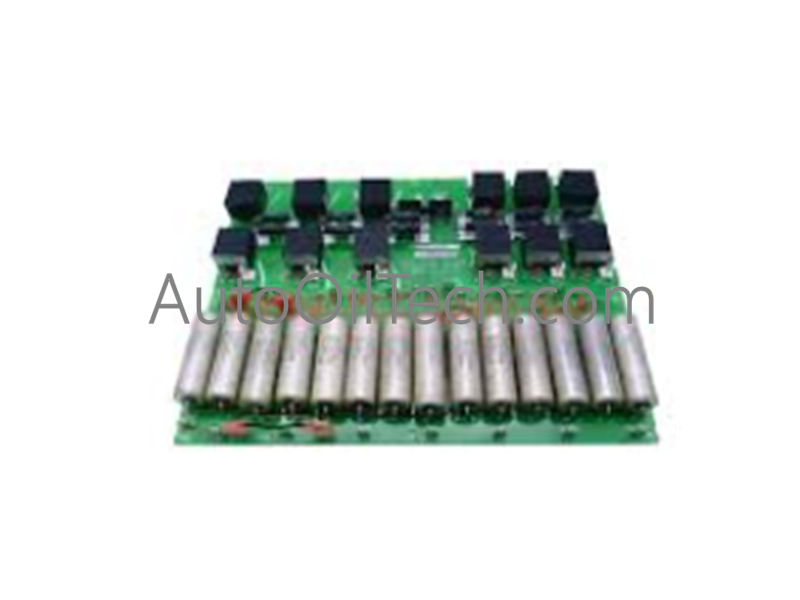

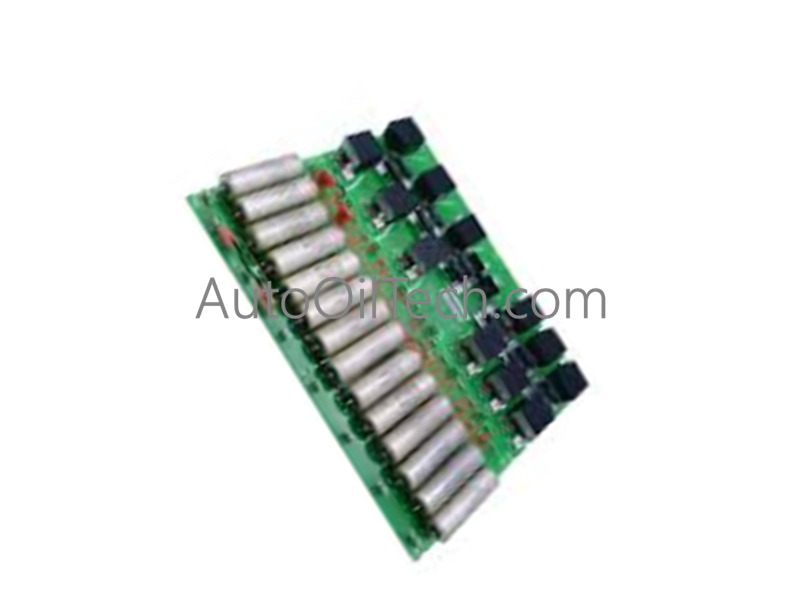

GE IC3600SP0A1D1C Signal Processing Module

The GE IC3600SP0A1D1C, also cataloged as the IC3600SP0A1D1C Signal Processing Module, operates as a dedicated hardware component for signal conditioning and noise filtration within GE Mark I and Mark II turbine control architectures. Configured for legacy platform interface, the GE IC3600SP0A1D1C (IC3600SP0A1D1C Signal Processing Module) provides direct electrical execution of analog signal processing for gas and steam turbine control loops.

Hardware Specifications

Industrial Control and TSI Metrics

• Signal Conditioning and Filtration: The module performs critical conditioning of sensor inputs, including analog filtering to remove high-frequency noise and interference from turbine transducer signals. This processing ensures that the control logic receives clean, stabilized data for real-time turbine management.
• Deterministic Interface Logic: As a core component of the legacy Mark I/II series, the IC3600SP0A1D1C maintains the timing and signal thresholds required for legacy turbine control logic. It bridges the gap between field-side sensors and the primary controller by normalizing signals, which is necessary for maintaining the control integrity of established power generation assets.
• Modular Integration: The board is engineered for integration within legacy turbine control racks. Its physical layout and connector configuration adhere to the original design specifications of the Mark I/II platforms, allowing for direct replacement during system maintenance without requiring modifications to the control cabinet architecture.

Frequently Asked Questions

Q: Is the IC3600SP0A1D1C compatible with modern GE control systems like the Mark VI or VIe?

A: No. This module is specifically engineered for legacy Mark I and Mark II control architectures and lacks the interface requirements and communication protocols needed for integration with the Mark V, VI, or VIe platforms.

Q: What are the primary indicators of a failing IC3600SP0A1D1C module?

A: Common indicators include erratic sensor readings, increased signal noise on the control loop, or failure of the turbine to maintain steady-state speed control. If signal fluctuations occur, verify the integrity of the board’s connections and check for trace degradation before concluding a module failure.

Field Installation Guidelines

• Mechanical Seating: Ensure the PCB is fully seated in the rack slot and that all edge connectors are clean and free of oxidation. High-resistance connections in legacy racks are common and can lead to intermittent signal drops, which trigger turbine protection trips.
• ESD and Handling: Because this module is part of a legacy system, its components may be sensitive to electrostatic discharge. Handle the board by its edges and ensure proper grounding of the technician and the control cabinet during installation.
• Shielding and Grounding: Terminate sensor cable shields at the designated chassis ground bus to minimize electromagnetic noise coupling. A low-impedance connection to the cabinet earth is required for the signal filtering circ
