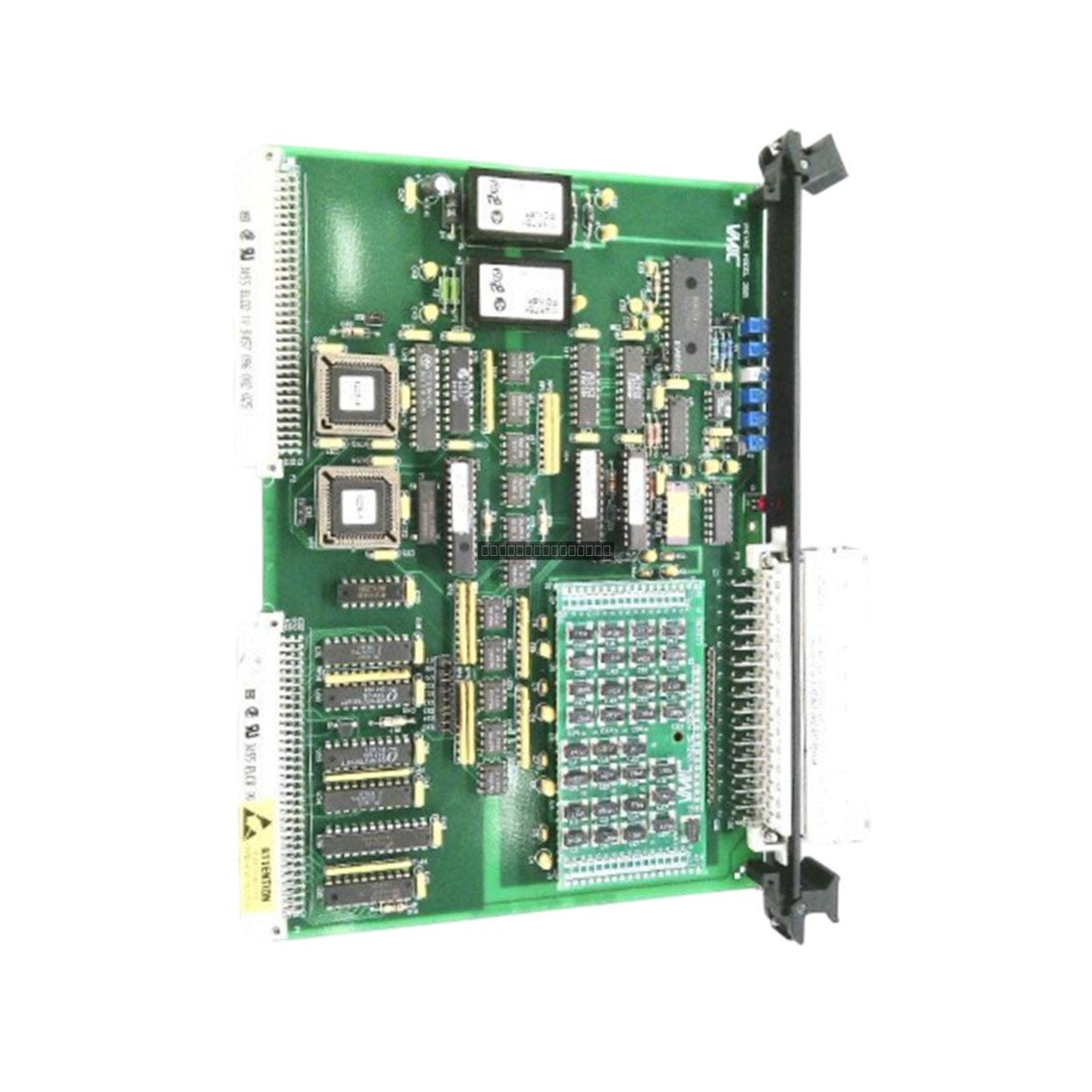

GE Fanuc IC697VAL318 Analog Output Module

Description

The GE Fanuc IC697VAL318 is an eight-channel analog output module engineered for the Series 90-70 programmable logic controller (PLC) family. This module is tasked with converting digital PLC data into precise 4 to 20 mA current signals, providing the necessary control for industrial actuators, process valves, and variable speed drives. Designed for demanding automation environments, it ensures reliable signal transmission and system stability by incorporating high-level galvanic isolation between the output channels and the PLC backplane.

Features

• Eight isolated analog output channels for independent signal control.
• 12-bit resolution for high-accuracy process regulation.
• Standard 4 to 20 mA current loop output compatible with global instrumentation.
• Galvanic isolation to prevent ground loops and protect against electrical surges.
• Removable terminal block design to simplify field maintenance and wiring replacement.
• Optimized for the GE Fanuc Series 90-70 rack-mount architecture.

Applications

This module is widely utilized in heavy industrial sectors requiring robust process control, including:

• Wastewater treatment and fluid management systems.
• Chemical and petrochemical processing plants.
• Power generation and distribution control units.
• Manufacturing automation requiring precise actuator positioning.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
• Verify that the module is fully seated in the backplane slot and secured using the integrated locking mechanisms.
• Use shielded twisted-pair cabling for all analog output connections to minimize EMI/RFI interference.
• Maintain proper grounding practices for the Series 90-70 rack to ensure the effectiveness of the module's galvanic isolation.
• Ensure adequate ventilation within the control cabinet to maintain operating temperatures below 60 degC.

FAQ

Is the IC697VAL318 compatible with other PLC series?

No, this specific module is designed exclusively for the GE Fanuc Series 90-70 PLC architecture and is not cross-compatible with other series such as the 90-30 or RX3i.

Does the module require external power for the current loops?

The module provides isolated output signals; however, please consult your specific loop-powered device documentation to confirm if additional 24V DC power is required for the field instruments connected to the channels.

Can I replace the terminal block while the system is running?

While the terminal block is removable, we recommend following site-specific safety protocols regarding live-circuit maintenance to prevent accidental short-circuits or signal loss during removal.
