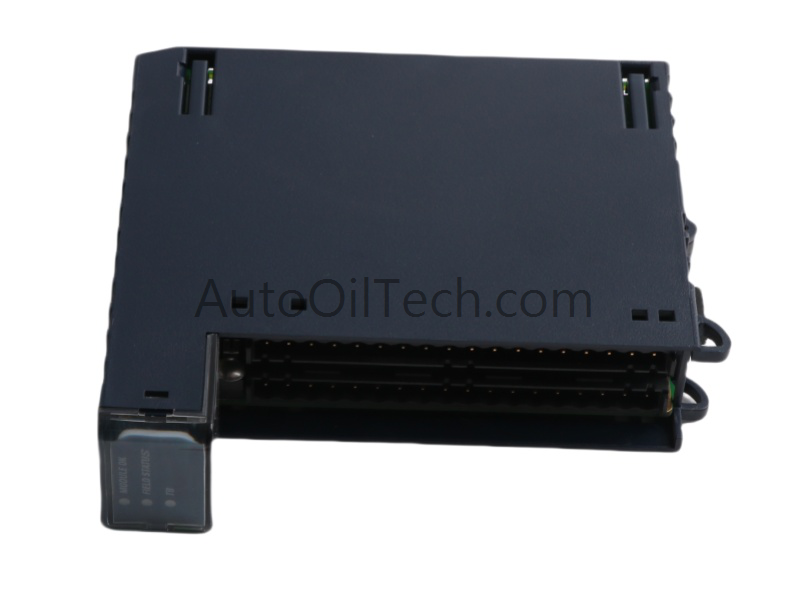

The GE Fanuc IC695ALG112 RX3i Analog Input Module provides high‑accuracy analog signal acquisition with multiple input ranges, ensuring reliable measurement and integration in PACSystems RX3i controllers.
Specifications
Manufacturer: GE Fanuc
Product Number: IC695ALG112
Module Type: Analog Input Module
Input Channels: 16 single‑ended or 8 differential inputs
Input Range: ±10 VDC, 0–20 mA, 4–20 mA configurable
Resolution: 16‑bit A/D conversion
Update Rate: Fast sampling for real‑time control
Input Impedance: High impedance for minimal signal loading
Diagnostics: Channel fault detection and health monitoring
System Compatibility: PACSystems RX3i racks and CPUs
Installation: Rack‑mounted design
Features
Flexible Input Ranges: Supports both voltage and current signals
High‑Resolution Measurement: Ensures precise analog data capture
Channel Density: 16 inputs for compact rack utilization
Noise Filtering: Built‑in suppression for stable readings
Integrated Diagnostics: Simplifies troubleshooting and maintenance
Industrial Reliability: Designed for continuous operation in harsh environments
