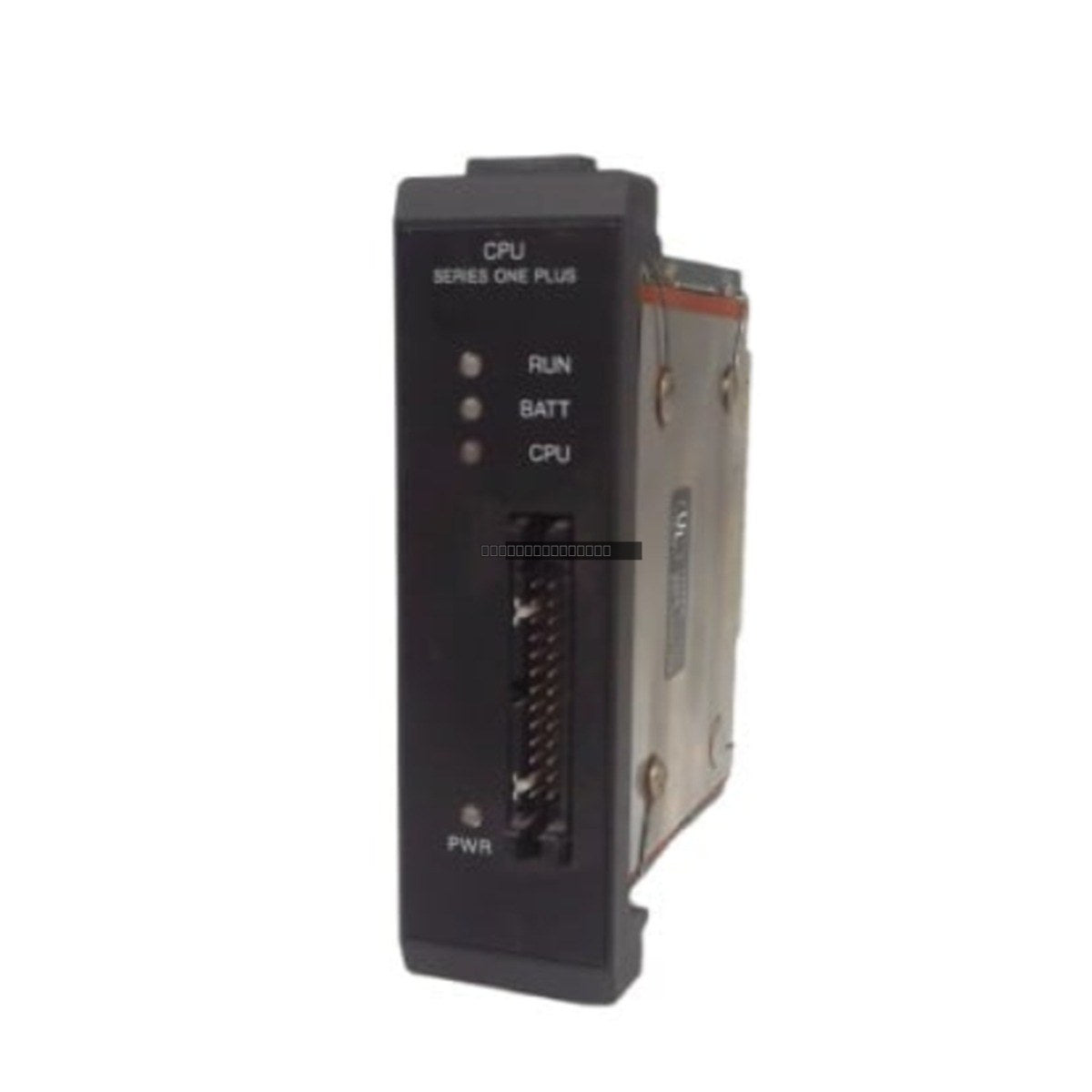

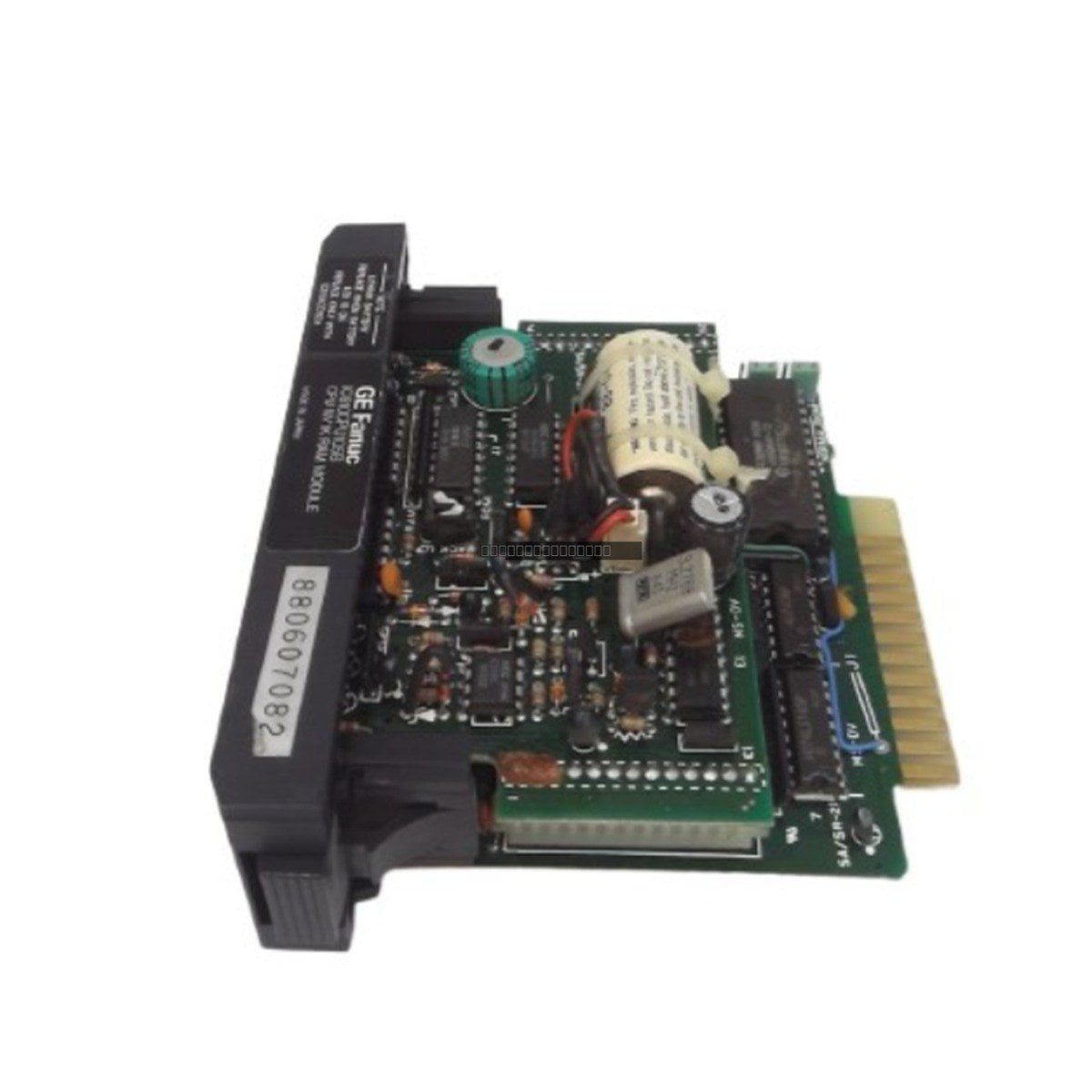

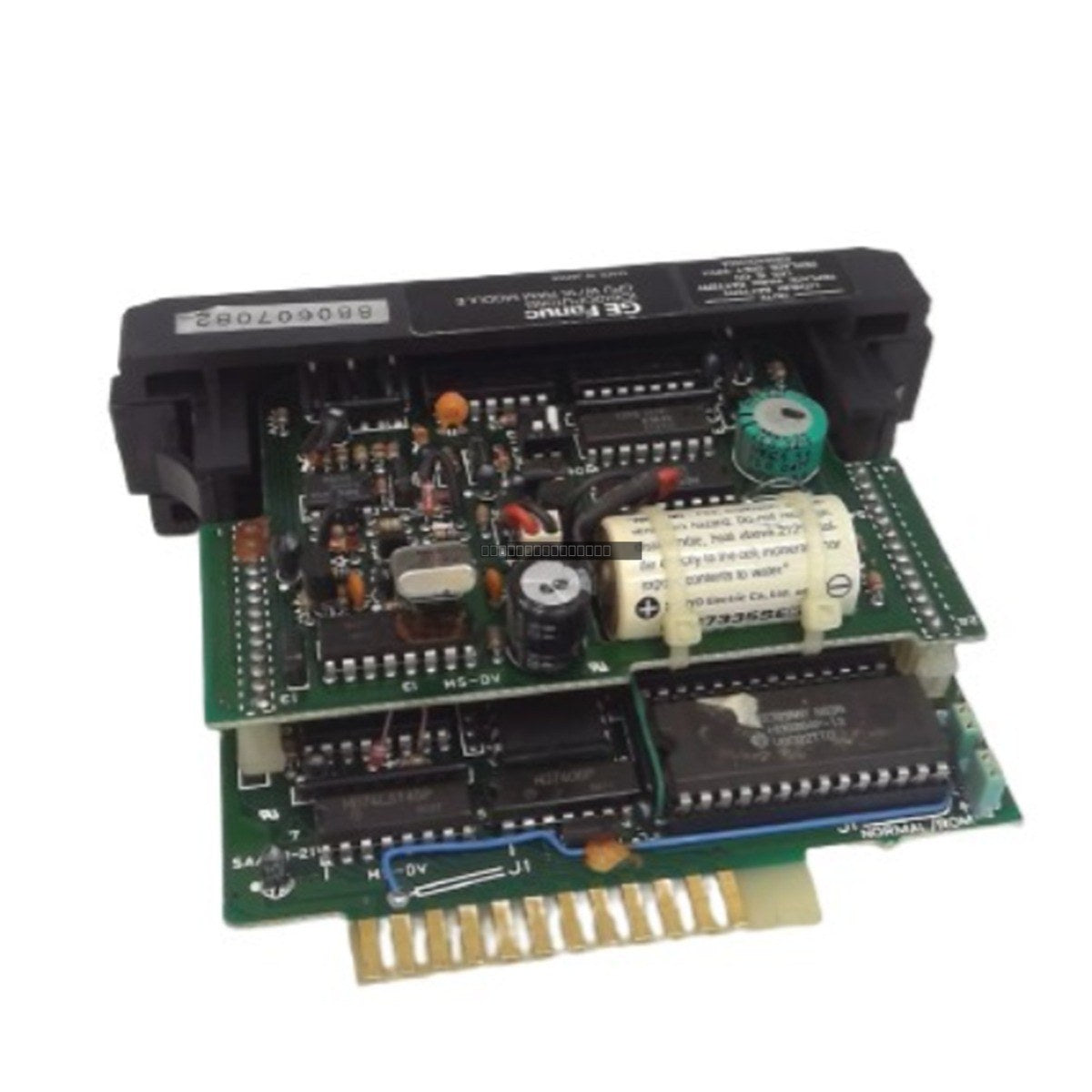

The GE Fanuc IC610CPU105 is a core central processing unit (CPU) module engineered for the Series One programmable logic controller (PLC) system. This module is designed to handle fundamental automation tasks, including machine sequencing, basic process control, and material handling operations. It provides reliable logic execution for small-scale industrial applications, ensuring consistent performance and operational stability within the Series One architecture.
Features
Integrated 1K RAM for efficient program execution.
700 words of primary memory capacity, expandable to 1.7K words for larger application requirements.
Lithium battery-backed memory system to prevent data loss during power interruptions.
Designed for seamless integration with the Series One PLC backplane.
Robust construction suitable for standard industrial manufacturing environments.
Applications
The IC610CPU105 is typically deployed in small-scale automation systems, such as standalone machine control, conveyor systems, and basic process monitoring where compact, reliable logic processing is required.
Technical Specifications
Model
IC610CPU105
Brand
GE Fanuc
Product Line
Series One
RAM
1K
Primary Memory
700 Words
Expanded Memory
1.7K Words
Battery Backup
Integrated Lithium Battery
Operating Temperature
0 to 60 degC
Storage Temperature
-20 to 70 degC
Humidity
5 to 95 percent (non-condensing)
Installation Guidelines
Ensure the PLC system is powered down before inserting or removing the CPU module from the backplane.
Verify that the module is correctly seated in the designated Series One backplane slot to ensure proper electrical contact.
Maintain adequate ventilation around the PLC rack to keep operating temperatures within the specified 0 to 60 degC range.
Handle the module with care to avoid electrostatic discharge (ESD) damage to internal components.
Periodically inspect the lithium battery backup status to ensure data integrity during power loss events.
FAQ
What is the primary function of the IC610CPU105?
The IC610CPU105 acts as the central processor for the GE Fanuc Series One PLC, managing logic execution and data processing for industrial automation tasks.
Can the memory of this module be expanded?
Yes, the primary memory capacity of 700 words can be expanded to 1.7K words to support more complex control logic.
How does the module protect data during power loss?
The module features an integrated lithium battery-backed memory system, which preserves user programs and data tables when main power is unavailable.
