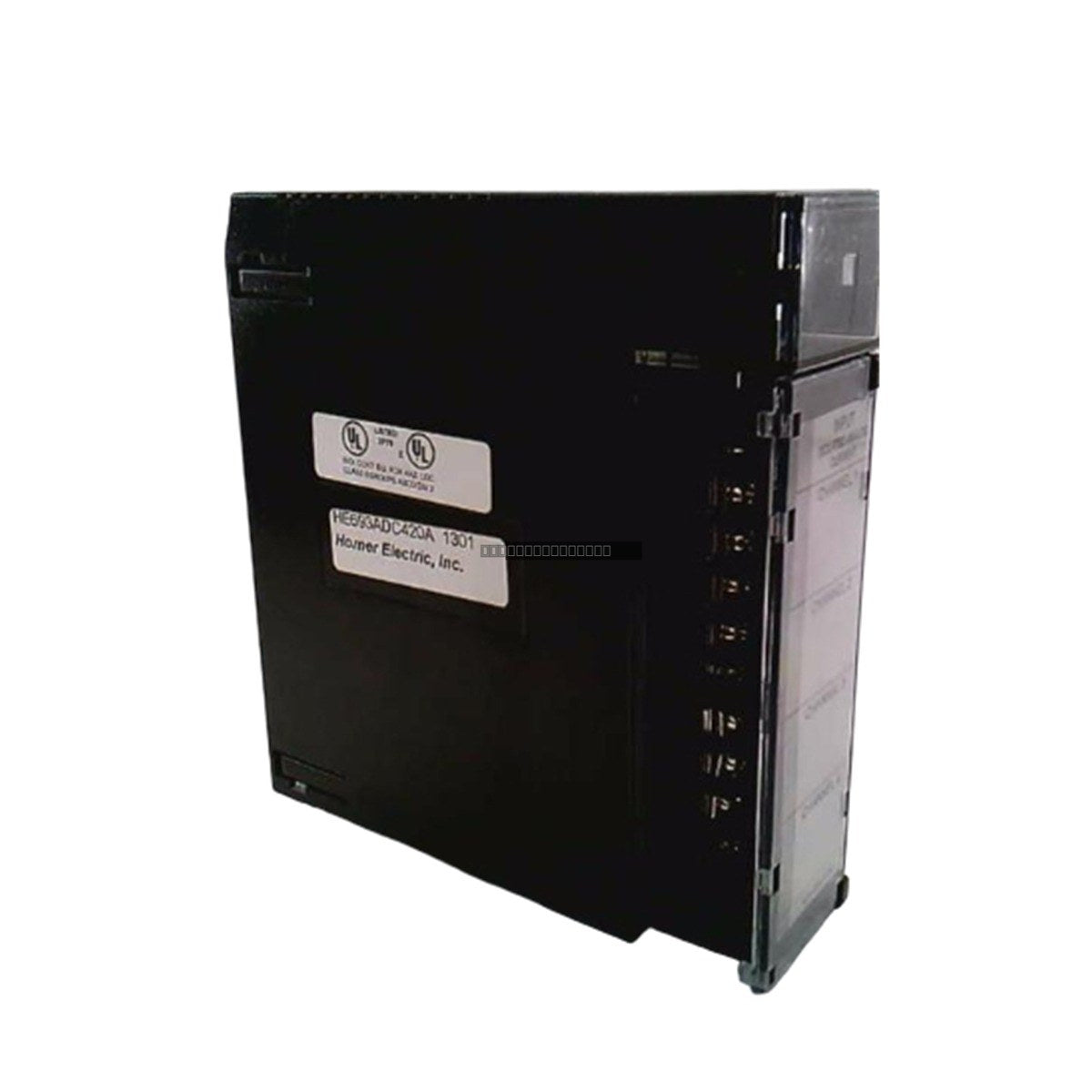

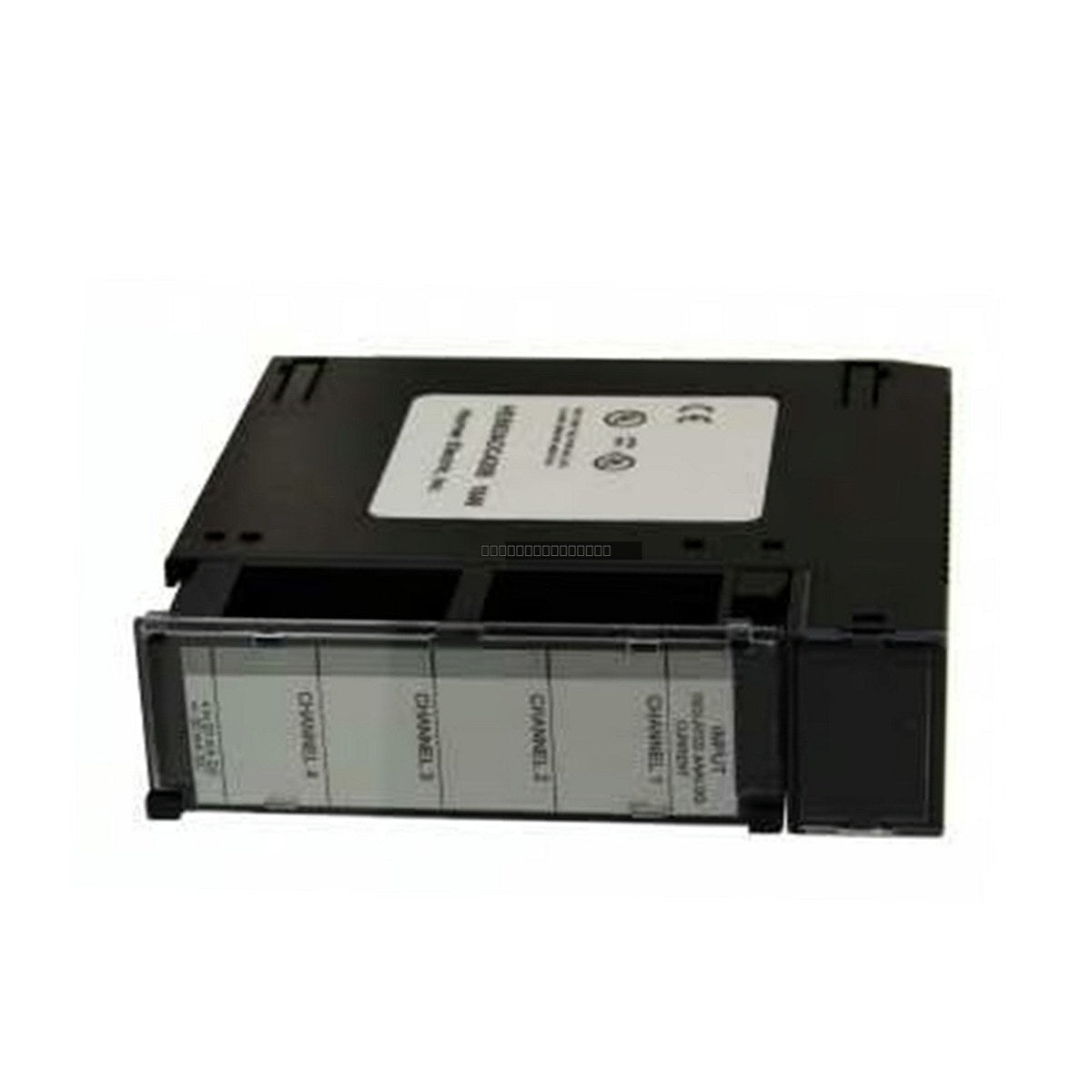

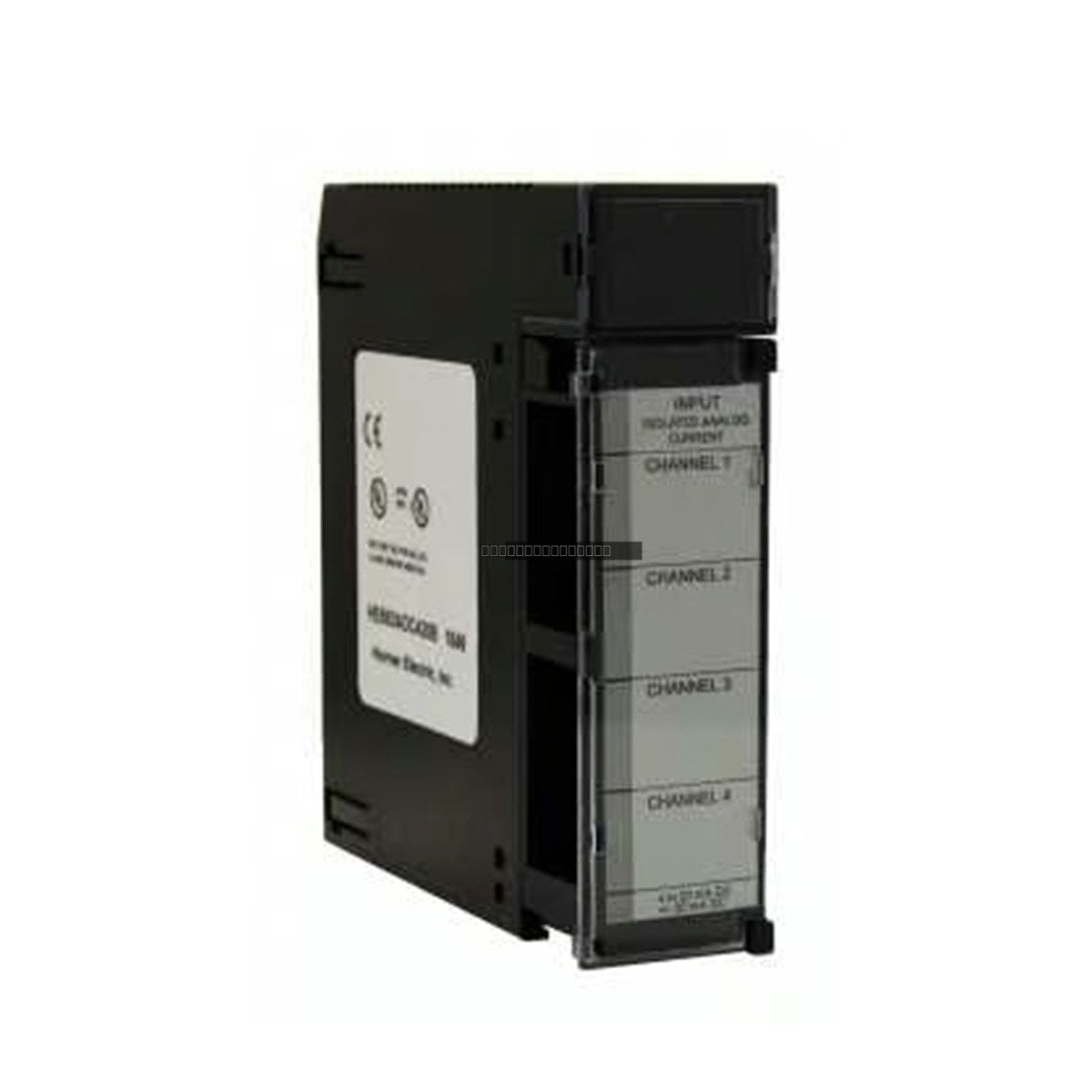

The HE693ADC420 is a high-performance, 4-channel isolated analog input module designed for integration with the GE Fanuc Series 90-30 PLC system. Manufactured by Horner Electric, this module provides precise current signal monitoring with 1500 VAC RMS channel-to-channel and channel-to-ground isolation. It converts incoming current signals into digital values, which are then mapped directly into the %AI table of the PLC CPU, facilitating seamless data acquisition in demanding industrial environments.
Features
Four independent analog input channels.
Configurable input ranges: 4-20 mA or +/- 20 mA.
High-precision 18-bit A/D conversion with 14-bit usable resolution.
1500 VAC RMS isolation for enhanced signal integrity and protection.
Programmable setpoint alarms for each channel, configurable via %AQ output registers.
Direct digital input (%I) feedback when setpoints are reached or exceeded.
Applications
Power generation and substation monitoring.
Heavy industrial processes, including steel and aluminum smelting.
Automated production lines and construction machinery control.
Textile, food processing, and packaging machinery.
Technical Specifications
Model
HE693ADC420
Channels
4
Input Range
4-20 mA, +/- 20 mA
Isolation
1500 VAC RMS
Resolution
18-bit (A/D), 14-bit usable
Update Rate
45 channels/second
Power Consumption
7W (140 mA @ 5V), 1.2W (50 mA @ 24V)
Operating Humidity
5% to 95% (non-condensing)
Installation Guidelines
Power Down: Always disconnect power from the PLC rack before inserting or removing the module to prevent electrical damage.
Mounting: Ensure the module is fully seated in the Series 90-30 backplane slot and secured using the integrated mounting screws.
Wiring: Use shielded twisted-pair cabling for analog signals to minimize EMI/RFI interference. Ensure proper grounding of the shield at the source or rack side according to local electrical codes.
Environment: Maintain adequate ventilation within the cabinet to ensure the module operates within specified temperature limits.
ESD Precautions: Handle the module by its edges or housing; avoid touching the backplane connector pins to prevent electrostatic discharge damage.
FAQs
What is the primary function of the HE693ADC420?
The HE693ADC420 is designed to convert analog current signals into digital data for processing by the GE 90-30 PLC, providing 4 channels of isolated input with programmable alarm setpoints.
How are the alarm setpoints configured?
Alarm setpoints are user-defined and configured within the PLC program using %AQ output registers. When an input exceeds its setpoint, a corresponding %I digital input is energized.
What is the isolation rating of this module?
The HE693ADC420 features 1500 VAC RMS isolation, providing robust protection between channels and between channels and ground.
