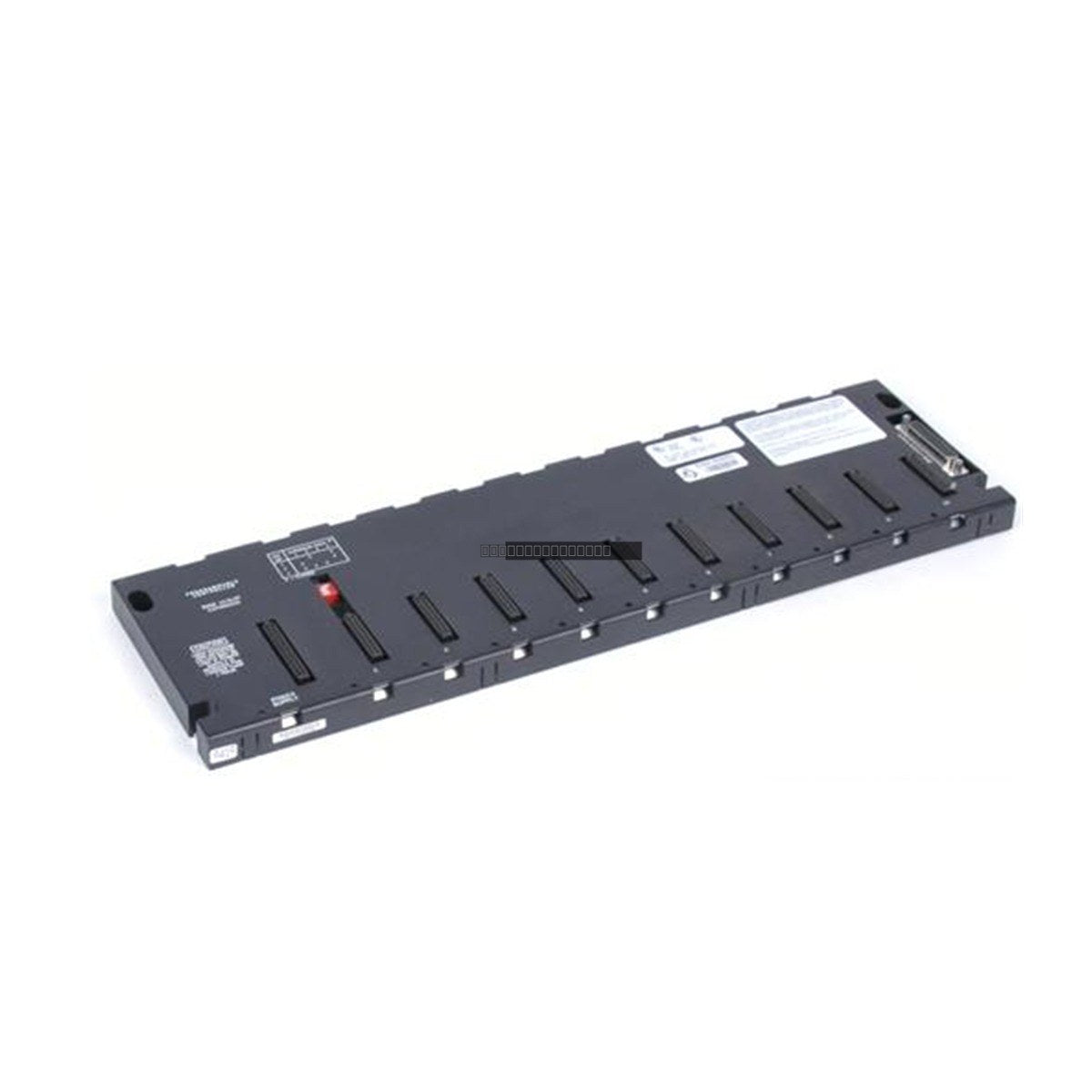

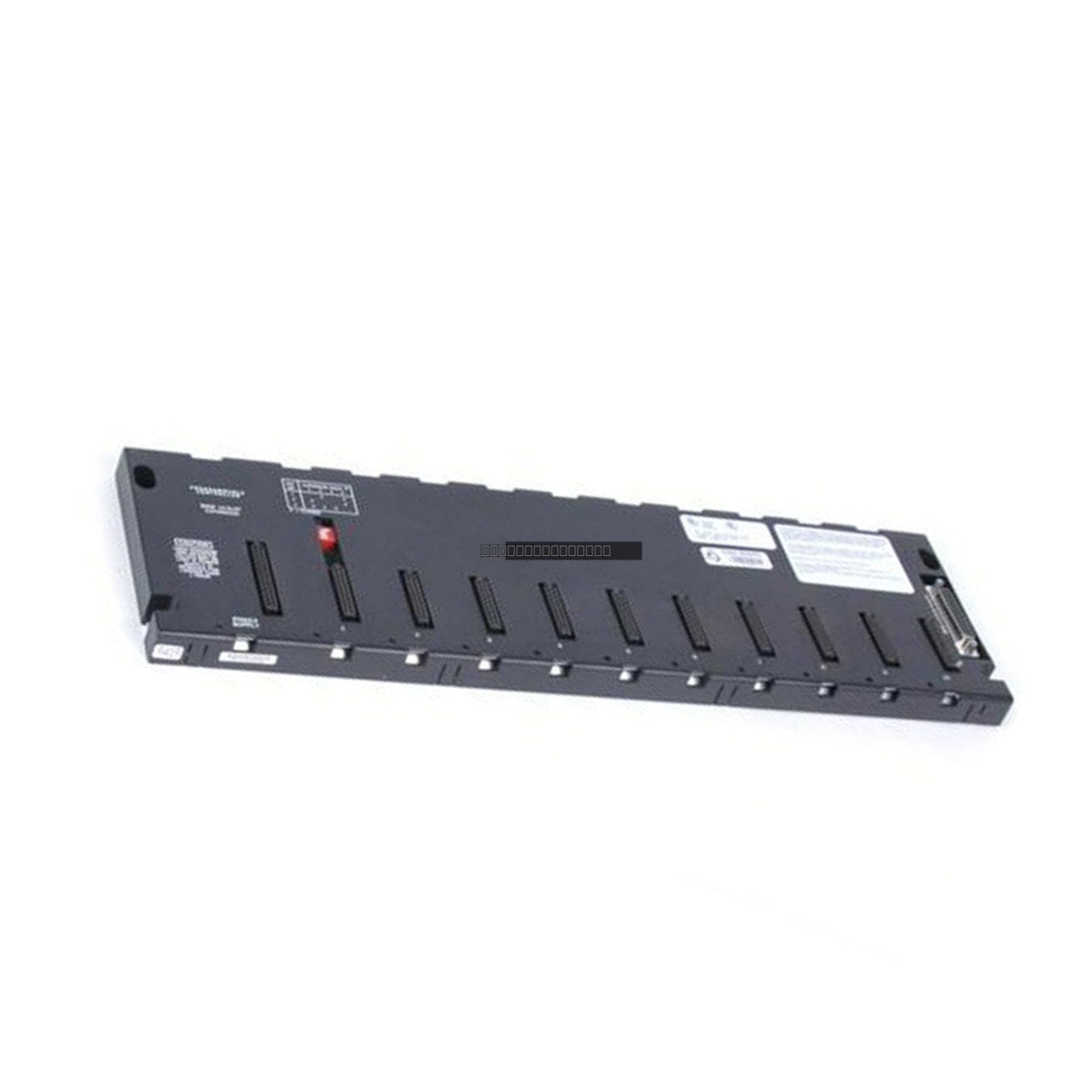

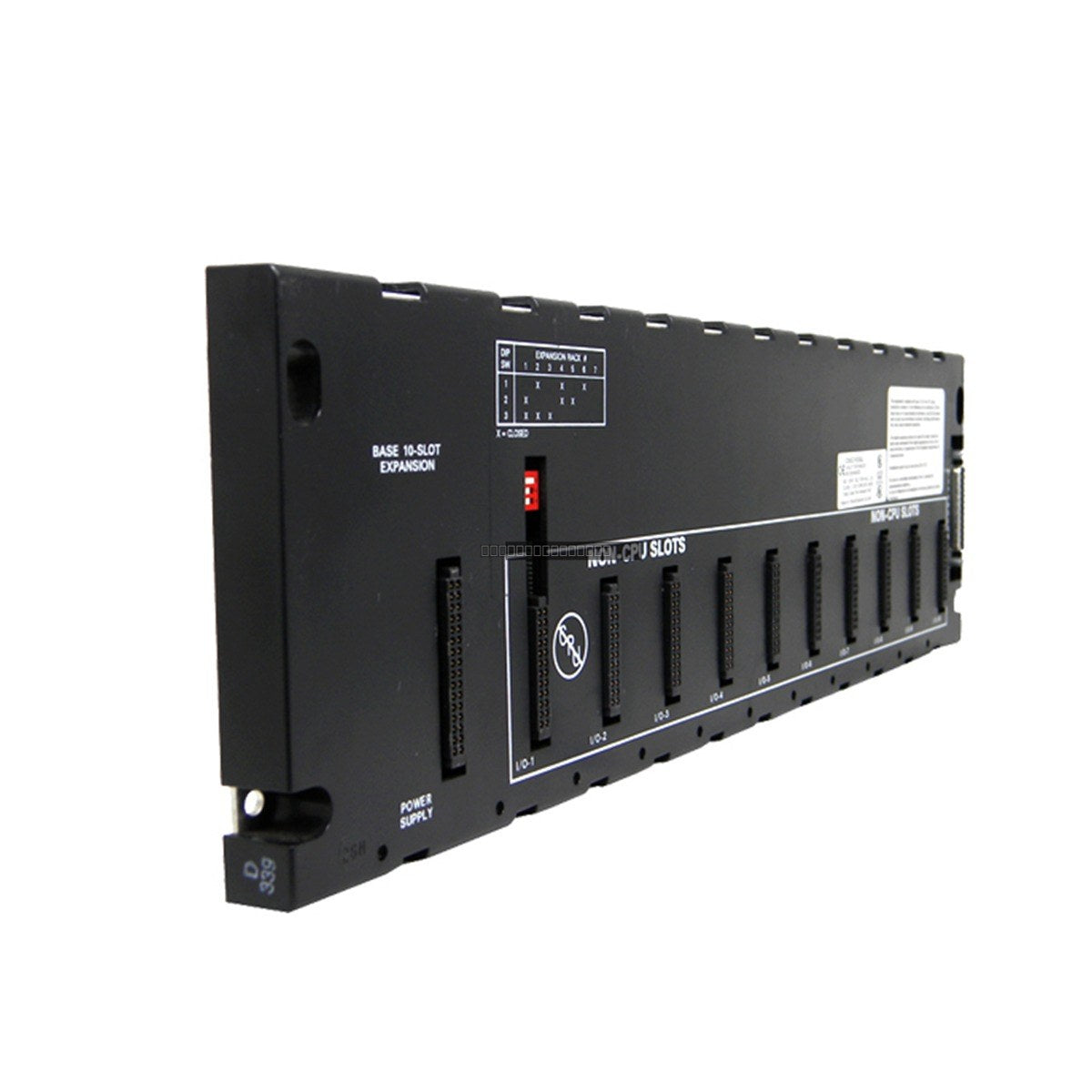

The General Electric IC693CHS392E is a 10-slot expansion baseplate designed for the Series 90-30 PLC system. This unit provides the necessary physical mounting and electrical backplane connectivity to extend the I/O capacity of a Series 90-30 control system. It is specifically engineered to house I/O and option modules, allowing for scalable system architecture in industrial automation applications.
Features
Provides ten (10) slots for I/O and option modules.
Includes a dedicated slot for a power supply module.
Equipped with a 25-pin D-shell female connector for expansion cable connectivity.
Designed for seamless integration with Series 90-30 PLC backplane communication.
Robust construction suitable for standard industrial panel mounting.
Applications
This expansion baseplate is utilized in GE Series 90-30 PLC systems where additional I/O density is required beyond the capacity of the CPU baseplate. It is commonly found in manufacturing, process control, and machine automation environments where modular I/O expansion is necessary to accommodate increased sensor and actuator counts.
Technical Specifications
Model
IC693CHS392E
Series
Series 90-30
Slots
10 I/O Slots
Power Supply Slot
Included
Internal Power Consumption
150 mA at 5 VDC
Expansion Interface
25-pin D-shell female connector
Mounting
Panel Mount
Installation Guidelines
Ensure the power is disconnected from the system before installing or removing any modules from the baseplate.
Mount the baseplate in an indoor environment, ensuring adequate clearance for ventilation and cable routing.
Use appropriate grounding techniques to minimize electromagnetic interference (EMI) and ensure signal integrity.
Secure the baseplate firmly to the panel using the provided mounting holes to prevent vibration-related issues.
When connecting the expansion cable, ensure the 25-pin D-shell connector is fully seated and the locking screws are tightened.
Handle modules with care to prevent electrostatic discharge (ESD) damage to the backplane pins.
FAQ
Does this baseplate support a CPU module?
No, the IC693CHS392E is an expansion baseplate and does not contain a slot for a CPU. It is intended to be used in conjunction with a CPU-capable baseplate to expand the total I/O count of the system.
What is the power requirement for this baseplate?
The baseplate consumes 150 mA at 5 VDC from the power supply module installed in the designated power supply slot.
