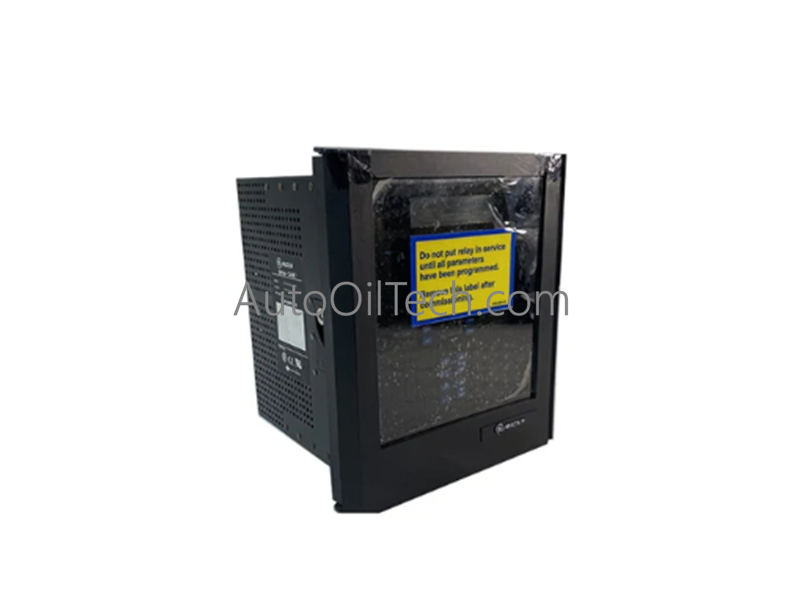

GE F650BFBF1G0HIC Digital Bay Controlle

The GE Fanuc F650BFBF1G0HIC, belonging to the Multilin F650 series, operates as a high-performance digital bay controller designed to protect, control, and automate industrial feeder systems. Integrated within GE's Power Management System 5000 (PMS 5000) architecture, it acts as a central unit for bay-level monitoring, sub-station management, and high-speed electrical system coordination.

Suffix Breakdown & Model Matrix

The F650 series utilizes explicit alphanumeric codes within its ordering matrix to define the integrated hardware options, communication interfaces, and functional firmware baseline:

• F650: Core Feeder Protection and Bay Controller series designation.
• BF: Basic protection plus comprehensive control, automation, and interlocking configurations enabled.
• BF: Standard physical chassis footprint equipped with a vacuum fluorescent display (VFD) and integrated control keypad.
• 1: Standard current transformer (CT) and voltage transformer (VT) analog measuring hardware setup.
• G: Standard processing engine configuration with premium diagnostic automation blocks enabled.
• 0: Standard assembly; no harsh environment conformal coating option applied.
• H: Universal high-voltage control power supply module.
• I: Rear physical communications array featuring integrated copper network interfaces.
• C: Factory manufacturing revision designation.

Hardware Specifications

Industrial Control & Power System Specifications

• Backplane Bus Communication Velocity and Density Scaling The bay controller coordinates high-density logic execution and analog sampling across its internal hardware pipeline. It converts physical network statuses, breaker auxiliary inputs, and analog line measurements into digital registers, executing local protection algorithms and bay interlocking logic concurrently without introducing delays into the upstream supervisory control network.
• PMS 5000 Integration and Deterministic Automation Loops Operating as an intelligent node within the PMS 5000 platform, the controller maintains continuous data exchange paths with central power management stations. The internal firmware processes cyclic control commands and automation scripts deterministically, allowing rapid coordination of automated bus transfer, shedding, and section isolation routines under dynamic fault conditions.

Frequently Asked Questions

Q: What is the operational distinction between a standard feeder relay and the "BF" bay controller configuration?

A: While a standard feeder relay focuses primarily on clearing faults via overcurrent or voltage elements, the "BF" digital bay controller provides comprehensive local automation, programmable logic control (PLC) logic, and synchrocheck capabilities. This allows it to handle complex bay-level breaker control schemes, interlocking equations, and operator manual controls directly from the front faceplate.

Q: How does the F650 controller manage early anomaly detection in feeder distribution networks?

A: The controller tracks real-time power performance factors, phase current unbalance ratios, and harmonic content continuously. By comparing these values against user-configured pre-alarm thresholds, the device logs early signs of insulation degradation or load abnormalities before they escalate into primary faults.
