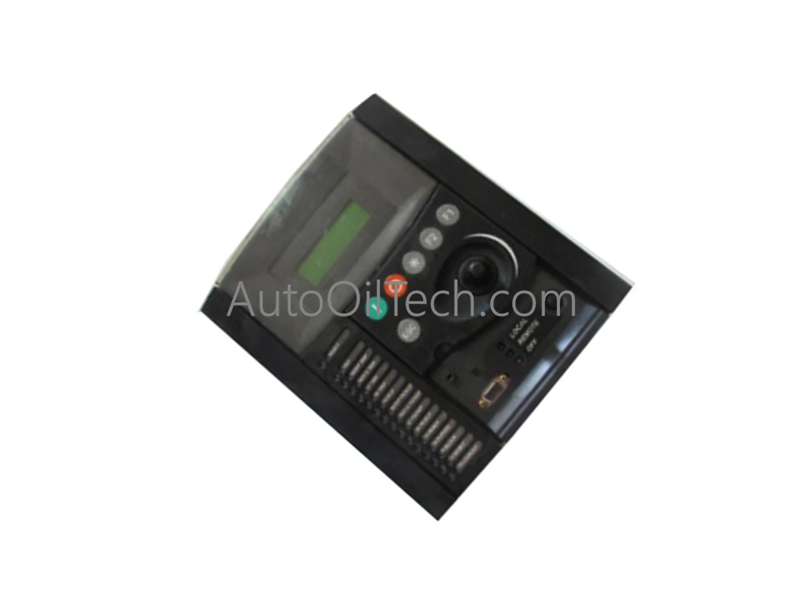

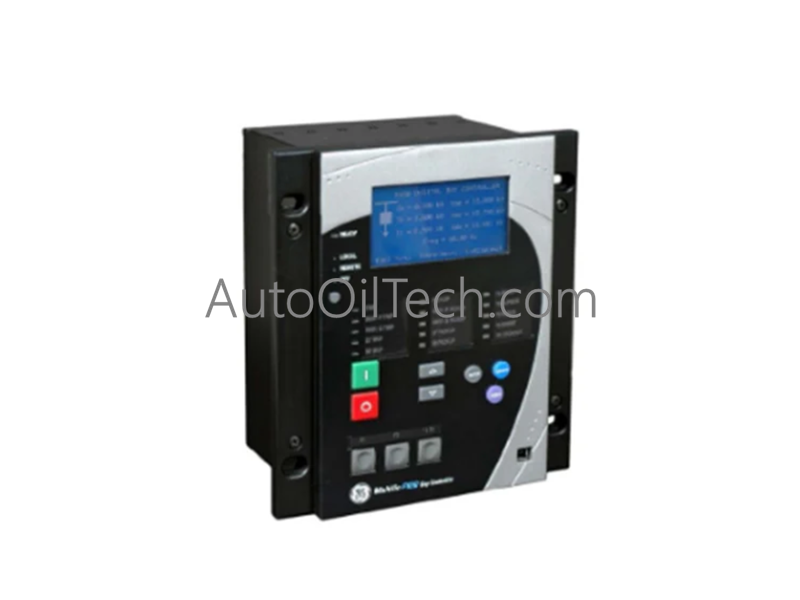

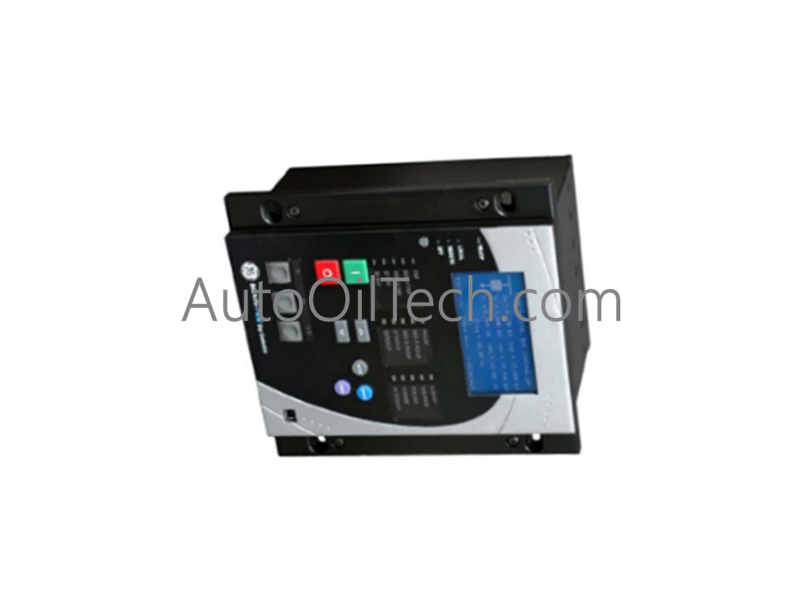

GE F650BABF1G0HI Digital Bay Controller

The GE Multilin F650BABF1G0HI, also cataloged as the F650 Digital Bay Controller, operates as a dedicated hardware component for localized feeder protection, high-speed breaker management, and automated substation control within industrial electrical distribution networks. The hardware converts process inputs into digital metrics to execute automated protection, monitoring, and breaker failure algorithms without control loop lag.

Hardware Specifications

Power System Protection & Substation Network Routing

• Substation Communication Architecture and Protocol Execution The controller handles multi-protocol data delivery across automated electrical networks. It runs parallel processing stacks for Modbus TCP/IP, DNP 3.0, and IEC 60870-5-104 across its 10/100 Base TX Ethernet module, while concurrently managing independent field links over the redundant RS485 serial board. This communication routing allows real-time current, voltage, and breaker status bits to map into local SCADA registers without data corruption or packet collision.
• Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling The processing engine coordinates the high-density internal I/O sampling grid alongside deterministic network traffic. The internal processor scans the 16 digital inputs and 8 outputs located in Slot F, executing custom control logic and interlocking equations in real time. The resulting control states are broadcast over the industrial Ethernet layer to ensure synchronized bay control actions across parallel breaker arrangements.

Frequently Asked Questions

Q: How does the configuration of the Rear Serial and Ethernet boards influence network redundancy?

A: The device utilizes a redundant RS485 serial interface (Option A) to maintain physical link layer availability for legacy RTU loops if one cable path drops. For modern network routing, the 10/100 Base TX port (Option B) establishes clean twisted-pair connection lines straight to industrial Ethernet switches for high-speed master control access.

Q: What are the input parameter tolerances for the HI Auxiliary Voltage power supply module?

A: The HI power card is a universal input module designed for high electrical stability. It accepts DC control bus voltages from 88 to 300 Vdc (nominal 110-250 Vdc) or AC control infrastructure lines from 96 to 250 Vac (nominal 120-230 Vac), allowing it to survive extreme substation battery drops or line surges.
