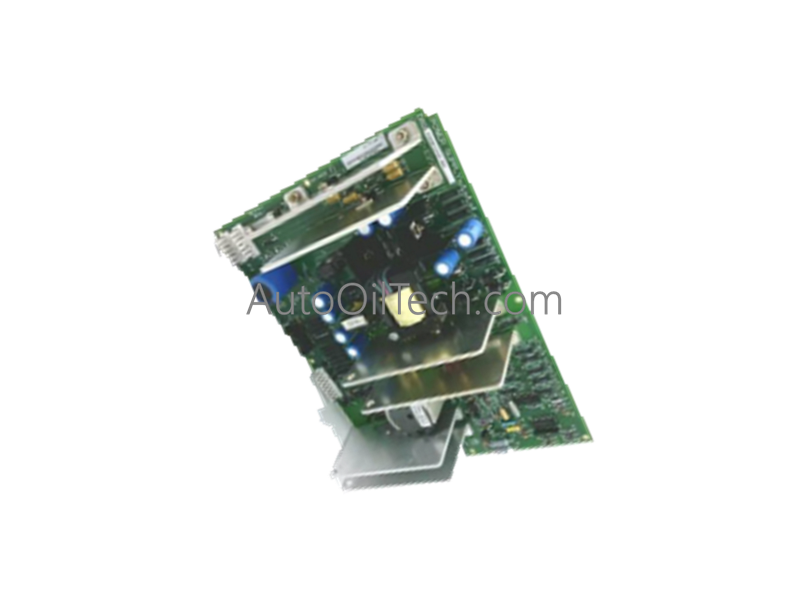

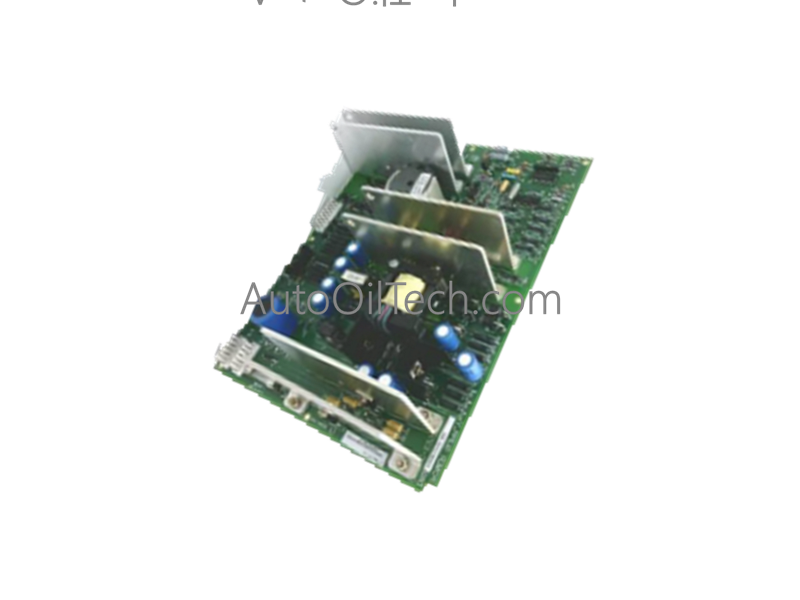

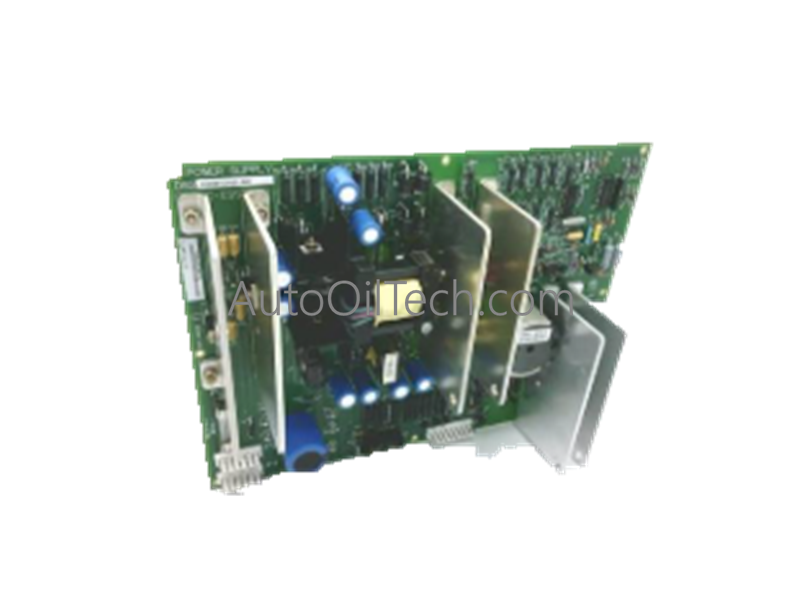

GE DS200TCDAH1B Turbine Control Board

في الأوراق المالية!
  • Part Number: DS200TCDAH1B
  • Brand: General Electric
  • Type: Controller Boards
  • Dimensions: 4.1x12.5x10.5cm
  • Country of Origin: USA
  • Barcode: 8537101190

Additional Specifications

Color / Pattern
  • Black
  • Green
Power Source
  • DC-powered
Communication Protocols
  • Ethernet
Controller Design
  • Compact
  • Modular
Tags: Controller Boards , General Electric Mark V

وصف المنتج

Configured for core control processing in Mark V turbine management networks, the GE DS200TCDAH1B (DS200TCDAH1B Turbine Control Board) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

Suffix Segment Parameter Designation Description & Configuration
DS200 Series Tag Mark V Series assembly and domestic original manufacture location
TCDA Functional Acronym Turbine Control Core Board assembly
G1 Product Grouping Group one architecture variant
B Functional Revision B-rated secondary functional design revision level

Hardware Specifications

Parameter Specification
Model DS200TCDAH1B
Brand GE General Electric
Series Mark V Turbine Control
Origin USA / Global Manufacturing Facility
Weight 2.50 kg
Dimensions Standard Mark V PCB form factor
Operating Temp 0 deg C to +65 deg C
Power Consumption System-dependent internal logic load
Interface Architecture Multi-processor control and power distribution interfacing

Profinet / EtherNet/IP Deterministic Networks and Backplane Communication Velocity

The board utilizes high-velocity backplane communication paths to interface seamlessly with Mark V turbine control architecture. Profinet and EtherNet/IP deterministic network integration capabilities ensure real-time telemetry processing across system input and output channels. I/O density scaling and structured data caching maintain execution stability during dynamic operational cycles, while firmware flash compatibility permits structured software upgrades across system controller nodes.

Frequently Asked Questions

Q: What is the primary function of the DS200TCDAH1B card within the Mark V system?

A: It functions as a core turbine control board, handling central processing tasks and managing data distribution across system racks.

Q: Does the board require any custom configuration jumpers during replacement?

A: Yes. Hardware jumpers and configuration settings must be matched exactly to the replaced board revision layout prior to system startup.

Q: Can this control board be replaced while the turbine control cabinet is powered on?

A: No. All power sources to the rack must be shut down and verified using a meter to prevent electrical shock and backplane damage.

Field Installation Guidelines

  1. Ensure all system power feeds to the Mark V core and associated drive racks are locked out and tested for zero energy state.
  2. Keep the board in its anti-static protective packaging until the exact moment of physical installation inside the cabinet.
  3. Align the card carefully with the designated backplane slot guides and apply even pressure to seat the edge connector completely.
  4. Fasten all mechanical retaining screws and verify all jumper settings against legacy documentation prior to re-energizing the system.
