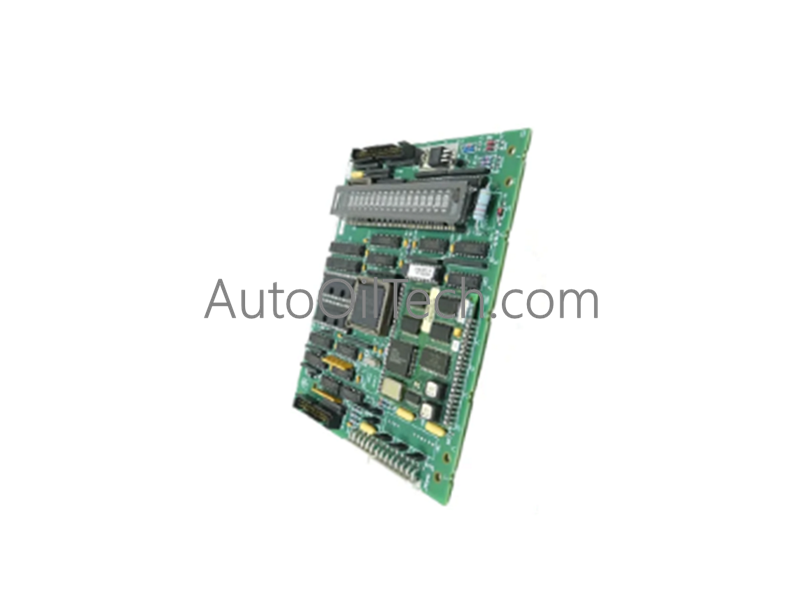

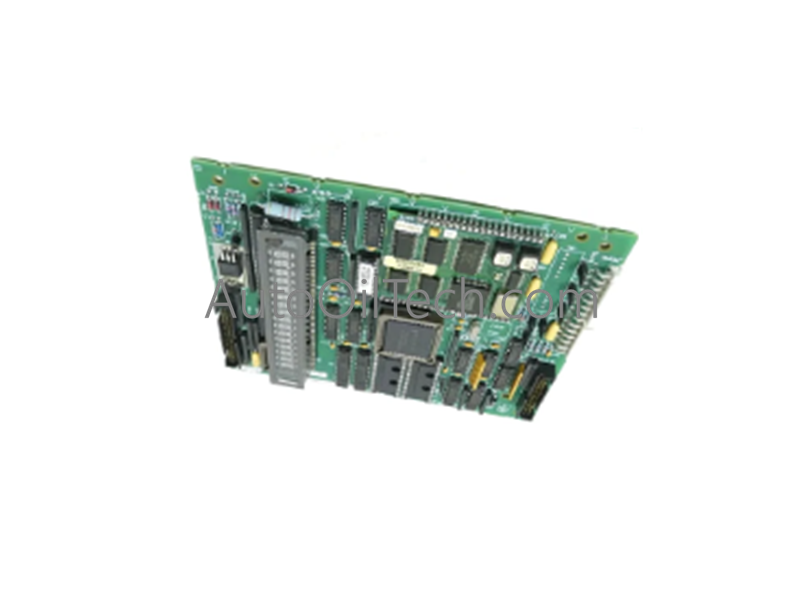

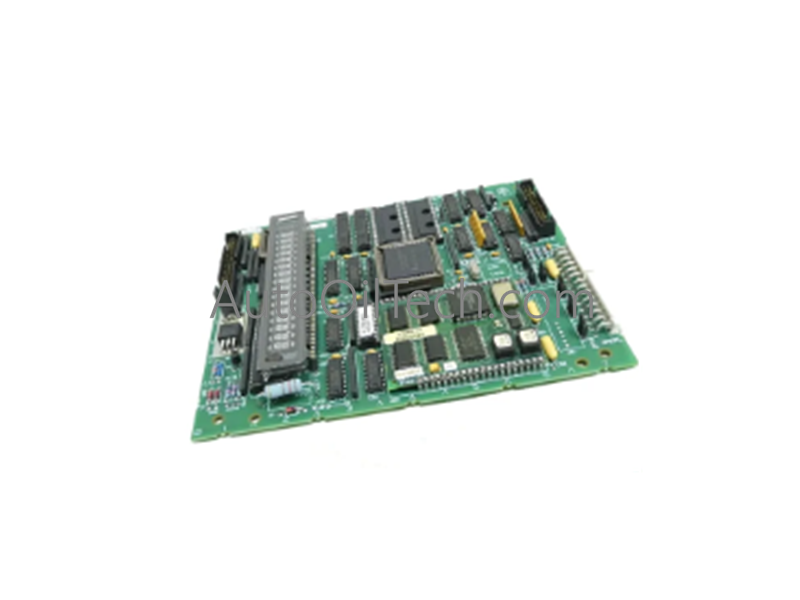

GE DS200TCCBG1BED RTD Input Control Card

The GE DS200TCCBG1BED, also cataloged as the DS200TCCB RTD Input Control Card, operates as a dedicated hardware component for temperature signal acquisition and analog processing within Mark V Speedtronic turbine control systems.

Suffix Breakdown & Model Matrix

Hardware Specifications

GE Industrial Control Characteristics

• Backplane bus communication velocity: The TCCB card facilitates high-speed signal routing between the RTD inputs and the primary control processors. This is mandatory for maintaining the sub-millisecond response times required for turbine thermal monitoring and safety trip logic.
• Profinet / EtherNet/IP deterministic networks: While functioning as an analog control card, the DS200TCCBG1BED provides the conditioned signal inputs necessary for the system to translate field-side temperature data into the deterministic digital values used by the Speedtronic platform.
• I/O density scaling: The card is designed to handle extended analog inputs, allowing for the consolidation of multiple thermal sensors into a single processing core within the Mark V rack assembly.
• Firmware flash compatibility: The TCCB board serves as a core analog processing layer. Verifying the revision-level compatibility (G1BED) against the primary controller's I/O configuration software is mandatory to ensure the correct interpretation of raw RTD data.

Frequently Asked Questions

Q: Can the DS200TCCBG1BED be hot-swapped while the Speedtronic rack is powered?

A: No. Hot-swapping is not supported. Attempting to insert or remove the TCCB card while energized can induce voltage spikes on the backplane, potentially damaging the board's high-sensitivity analog-to-digital converters and causing system-wide control instability.

Q: Is the TCCB board sensitive to thermal gradients within the cabinet?

A: Yes. As an analog processing module, the board is sensitive to localized thermal fluctuations. Proper rack ventilation is mandatory to ensure that measurement accuracy—particularly for CJC-dependent inputs—is maintained within the specified tolerances.

Field Installation Guidelines

• Mounting: Seat the card firmly into the designated Mark V rack slot. The board utilizes standard guides; ensure the module is fully seated until the backplane connectors engage securely to prevent high-resistance connections that manifest as intermittent temperature signal noise.
• Grounding: Secure the board using the integrated mounting hardware to ensure proper chassis ground continuity. A low-impedance connection to the cabinet instrumentation ground is mandatory to mitigate common-mode noise and prevent electromagnetic interference from skewing analog inputs.
• Wiring: Terminate field RTD sensors according to the cabinet terminal schematics. Maintain a minimum separation of 150 mm from high-voltage AC lines. This isolation is mandatory to protect the low-level analog signals from induction and crosstalk, which is critical for precision temperature monitoring in industrial turbine environments.
