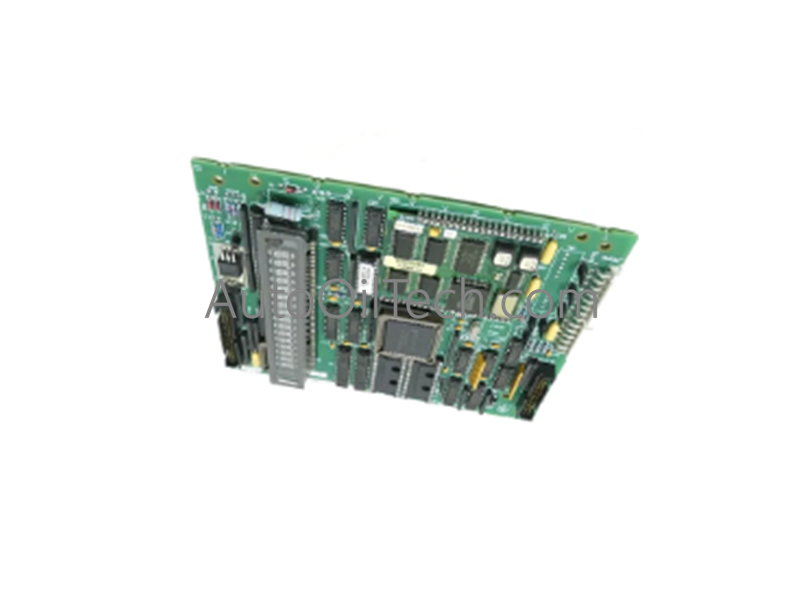

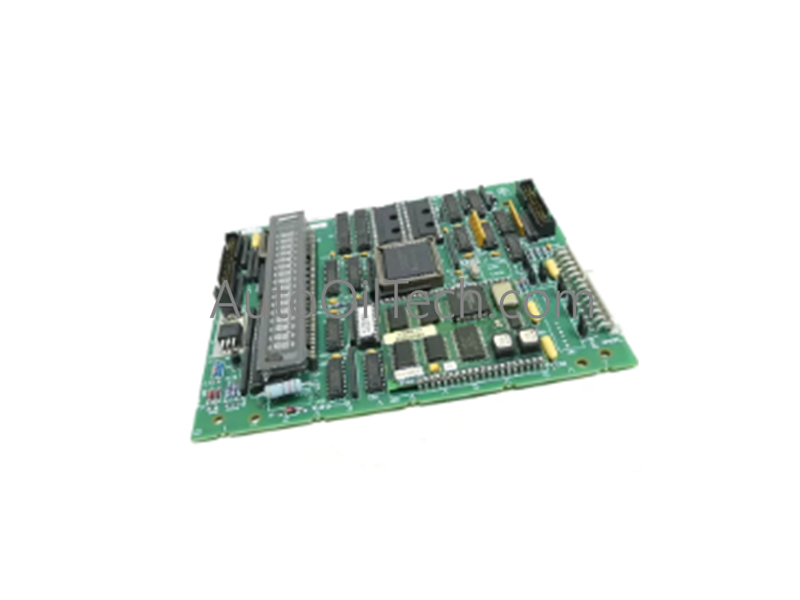

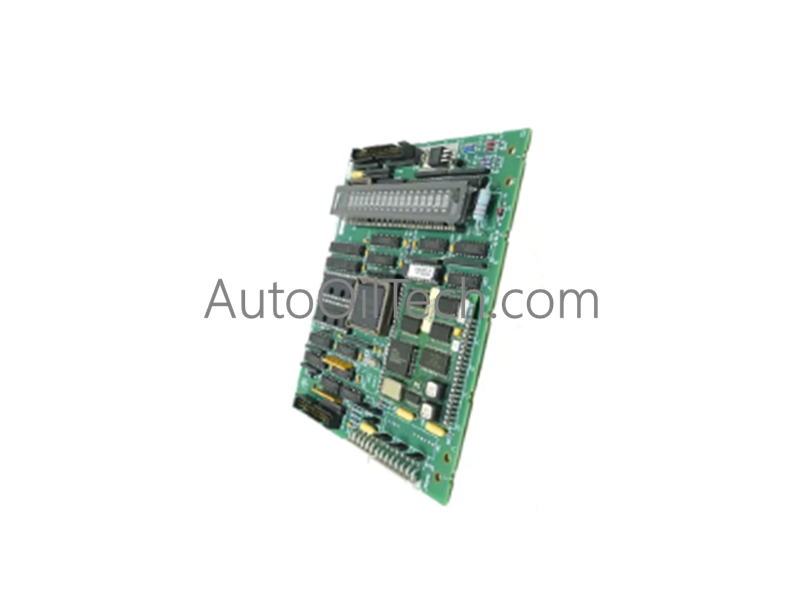

GE DS200SLCCG3AGH LAN Communication Board

The GE DS200SLCCG3AGH, also cataloged as the DS200SLCCG3 LAN Communication Board, operates as a dedicated hardware component for network interface and data processing within Mark V Speedtronic control systems.

Suffix Breakdown & Model Matrix

Hardware Specifications

GE Industrial Control Characteristics

• Backplane bus communication velocity: The board facilitates high-speed LAN interfacing across the Mark V backplane. This is mandatory to support the deterministic timing requirements of Speedtronic turbine control algorithms.
• Profinet / EtherNet/IP deterministic networks: The DS200SLCCG3AGH handles incoming LAN communications, serving as the communication bridge for data exchange between the turbine control rack and external plant-level networks.
• I/O density scaling: The board integrates with the control rack architecture to manage multi-node network traffic, allowing for the scaling of communication interfaces within the Mark V automation assembly.
• Firmware flash compatibility: The on-board FPGAs and EEPROMs require specific firmware versions aligned with the Mark V system controller. Verifying firmware flash compatibility with the primary controller software is mandatory to ensure proper network protocol execution.

Frequently Asked Questions

Q: Can the DS200SLCCG3AGH be hot-swapped while the Mark V rack is energized?

A: No. Hot-swapping is not supported. Removing or inserting the board while the system is powered can cause electrical shorts on the backplane or damage the board's internal FPGA and logic circuits due to surge currents.

Q: Is the board sensitive to electrostatic discharge?

A: Yes. The board contains static-sensitive integrated circuits, including FPGAs and EEPROMs. Proper ESD-safe handling procedures, including the use of grounded wrist straps and anti-static workstations, are mandatory during installation or maintenance.

Field Installation Guidelines

• Mounting: Seat the board firmly into the designated rack slot. The factory-drilled corner holes should be used to secure the board if required by the rack configuration. Ensuring a vibration-free fit is mandatory to prevent intermittent signal contact at the vertical or right-angle connectors.
• Grounding: While the board relies on the rack backplane for grounding, ensure the rack itself is bonded to the main instrumentation earth. This is mandatory to prevent common-mode noise from influencing the integrity of the board’s LAN communication circuits.
• Wiring: Connect LAN cables to the appropriate board-mounted connectors. Maintain a minimum separation of 150 mm from high-voltage AC lines. This physical isolation is mandatory to protect the LAN signal pathways from inductive noise coupling, which is critical for maintaining reliable network communication.
