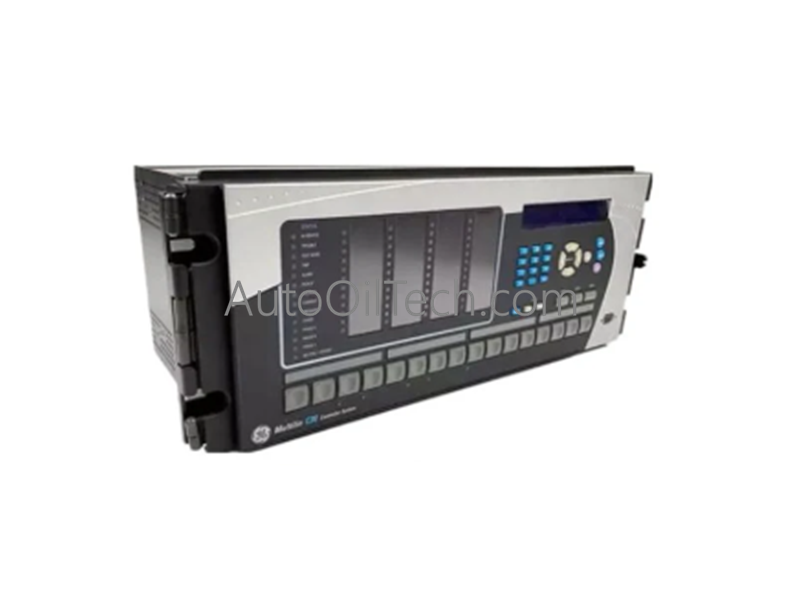

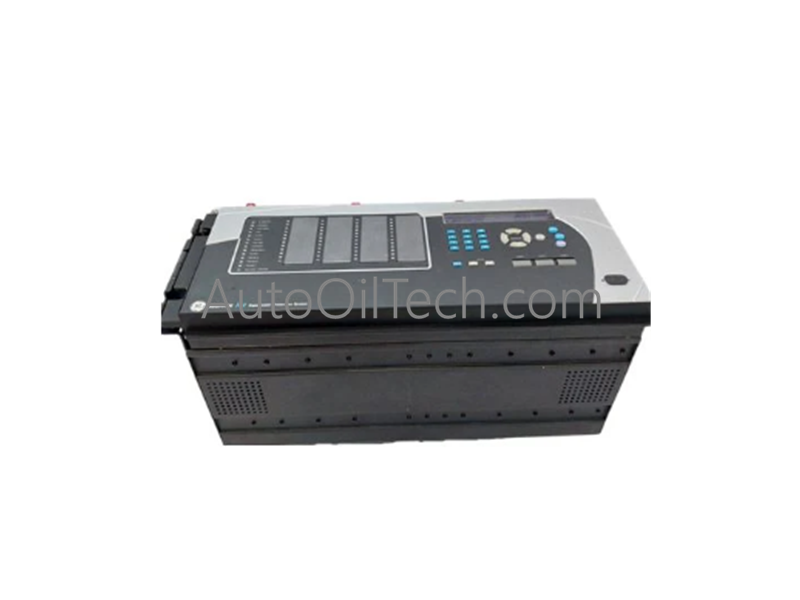

GE C60K03HKH Transformer Protection Device

The GE C60K03HKH, also cataloged as the C60K03HKH Transformer Protection Device, operates as a dedicated hardware component for power transformer fault detection and network integration within the Multilin C60 series. Configured for high-speed protection in utility and industrial power architectures, the GE C60K03HKH (C60K03HKH Transformer Protection Device) provides direct electrical execution of differential relaying and status monitoring.

Hardware Specifications

Industrial Control and Protection Metrics

• Differential and Overcurrent Protection: The C60K03HKH utilizes algorithms for transformer winding differential protection, effectively distinguishing between through-faults and internal winding faults. This architecture provides immediate fault isolation, minimizing the thermal and mechanical stress on transformer assets during adverse grid conditions.
• Profinet / EtherNet/IP Deterministic Networks: The module is engineered for integration into smart grid and automated industrial power networks. By supporting IEC 61850 protocol standards, it ensures deterministic communication with centralized SCADA systems, facilitating rapid telemetry updates and remote protection coordination.
• I/O Density Scaling: The device provides flexible logic and programmable outputs, allowing for scalable control of breaker failure detection and secondary protection functions. This flexibility ensures that the relay can be configured to match the unique topology of various transformer bank installations, from basic industrial step-down units to complex utility substation configurations.

Frequently Asked Questions

Q: Does the C60K03HKH support hot-swapping while the transformer is energized?

A: No. The C60K03HKH is not designed for hot-swapping. Before withdrawing the relay from the panel, ensure that the current transformer (CT) secondary circuits are shorted and the voltage transformer (VT) circuits are isolated to prevent open-circuit CT hazards or accidental relay tripping.

Q: How is the IEC 61850 configuration managed for this device?

A: Configuration is performed via the GE EnerVista software suite. The device uses standard Substation Configuration Language (SCL) files to define its data model within the IEC 61850 network. Ensure the network switch infrastructure supports VLANs and priority tagging to maintain deterministic performance for protection signals.

Field Installation Guidelines

• Mounting Stability: Secure the relay into the panel cutout using the provided mounting hardware. Ensure the chassis ground terminal is connected to the cabinet's low-impedance earth bus using a braided conductor to maximize the effectiveness of the internal transient voltage surge suppression.
• Wiring Practice: Separate CT/VT signal wiring from high-power communication cables and AC control voltage paths to reduce inductive interference. Use shielded twisted-pair cabling for all serial and Ethernet communication runs to ensure signal integrity across the substation environment.
• Environment and Coating: The unit is intended for installation in controlled industrial environments. Ensure the front panel LCD interface is protected from direct sunlight or excessive moisture, and verify that the rear terminal block connections are torqued to the specified values to prevent resistance buildup over time.
