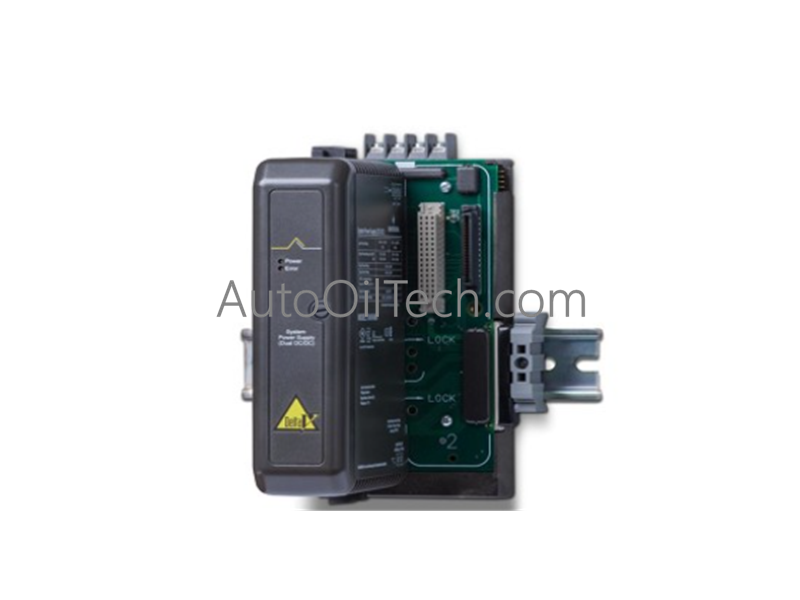

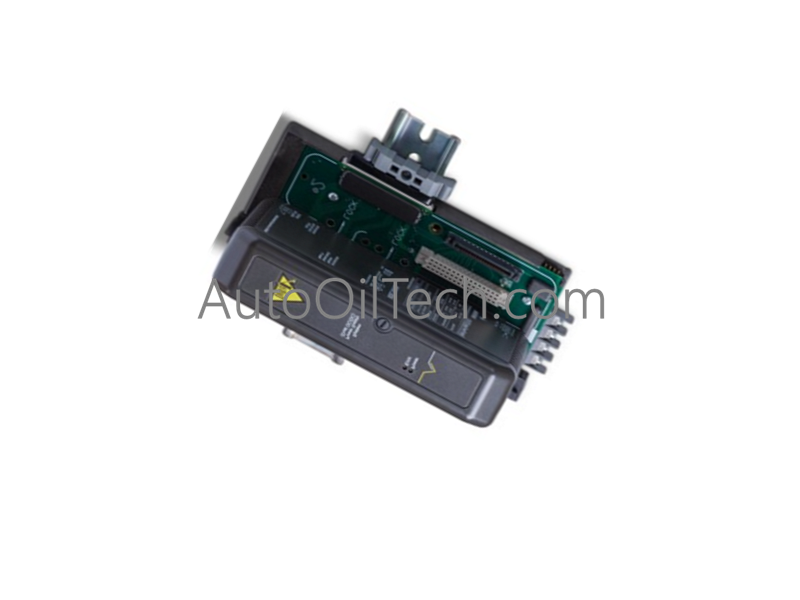

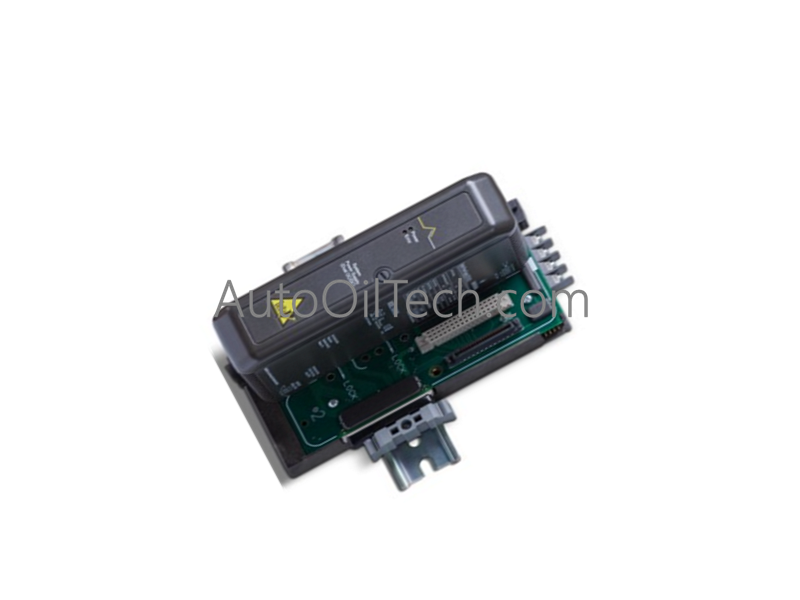

Emerson VE5001 DeltaV M-Series Power Supply

The Emerson VE5001, also cataloged as the VE5001 System Power Supply (AC/DC), operates as a dedicated hardware component for supplying stable LocalBus logic power within DeltaV M-series Distributed Control System platforms.

Hardware Specifications

Process Control & DCS Integration

The VE5001 guarantees systematic, isolated power distribution across the local controller and input/output subsystems to prevent electrical faults from causing system-wide failures.

• Channel-to-Channel Isolation Parameters: The unit features internal galvanic isolation boundaries, preventing high-voltage AC line spikes from coupling onto the low-voltage DC logic backplane. This isolation design protects the central processor cards and sensitive communication chips from common-mode noise.
• 4-20 mA and HART Signal Stability: By providing highly regulated DC output rails with minimal high-frequency harmonic distortion, the module maintains a clean, noise-free backplane environment. This prevents signal degradation on sensitive internal buses communicating with multi-drop 4-20 mA HART transmitters.
• LocalBus Power Distribution: Power is injected directly onto the backplane LocalBus. This centralized distribution architecture powers the internal microprocessors and communication circuitry of adjacent I/O modules, eliminating the requirement for individual external power connections to each module.

Frequently Asked Questions

• Q: Can this module be hot-swapped in an active system carrier?
• A: Yes. The VE5001 is designed for online, dynamic replacement. However, if the system is configured without redundant power modules, removing the active power supply will immediately drop LocalBus power, disabling the controller and its associated I/O racks.
• Q: What is the diagnostic function of the front-panel indicator lights?
• A: The front panel has two status LEDs. The green "Power" LED indicates the module is successfully outputting regulated 12 VDC to the backplane, while the red "Error" LED illuminates to indicate an internal hardware fault, overtemperature trip, or overcurrent shutdown.
• Q: Does this module provide the loop power required for field instrumentation?
• A: No. The VE5001 only generates the 12 VDC logic power required to run the internal microprocessors on the controller and I/O cards. Standard 24 VDC field instrument loop power must be supplied via a separate, external bulk power supply.

Field Installation Guidelines

• Chassis Slide Alignment: Slide the power module carefully along the carrier guide rails. Press the module inward until the rear pins make solid contact and seat completely in the backplane connector, then tighten the securing screw.
• Grounding and Shield Continuity: Ensure that the DIN-rail and master power carrier are securely bonded to the main cabinet instrument earth ground. This low-impedance path is necessary for the internal electromagnetic compatibility (EMC) filters to bypass high-frequency noise.
• Ventilation Clearance: Maintain clean convective heat pathways above and below the carrier. Do not block the ventilation slots on the module chassis to prevent localized thermal buildup, which can shorten the service life of internal electrolytic capacitors.
