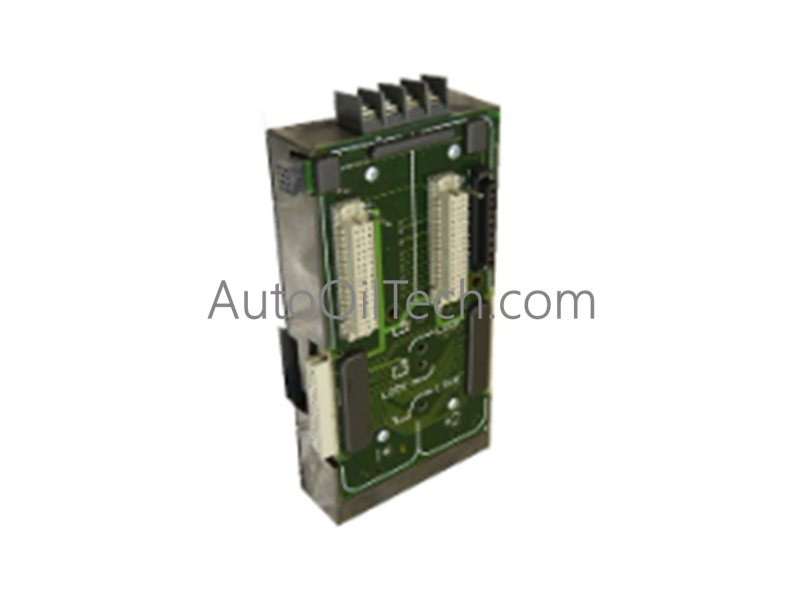

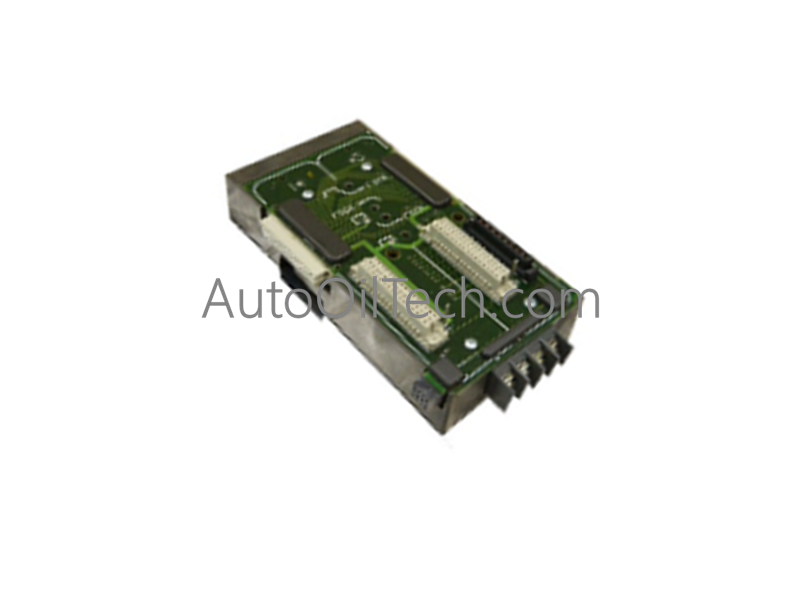

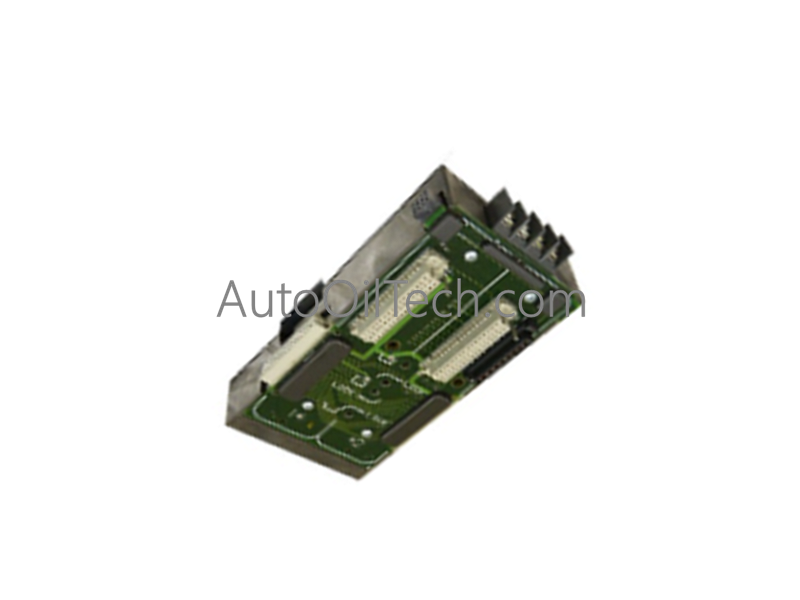

Emerson VE3051C0 Power Controller Carrier

The Emerson VE3051C0, also cataloged as the VE3051C0 Power/Controller Carrier, operates as a dedicated hardware component for mechanical docking, backplane power distribution, and signal routing within DeltaV distributed control architectures.

Hardware Specifications

Emerson DCS Process Control Characteristics

• 4-20 mA HART loop protocol: The VE3051C0 provides the backplane interface for HART-enabled I/O modules and controllers. This physical connectivity is mandatory to ensure the signal integrity of the HART overlay on 4-20 mA loops throughout the control rack.
• Channel-to-channel isolation: The carrier backplane is engineered with high-integrity signal isolation paths between the power supply inputs and controller docking slots. This is mandatory to prevent electrical transients generated by auxiliary devices from propagating into the central control processor.
• Cold junction compensation (CJC): The carrier supports high-precision thermal management for modules docked within the controller slots, which is mandatory to maintain signal accuracy in sensitive analog temperature control loops.

Frequently Asked Questions

Q: Is the VE3051C0 carrier compatible with both primary and redundant controller configurations?

A: Yes. The carrier is designed to house both single and redundant controller assemblies. Verification of the carrier’s backplane layout and communication bus routing is mandatory to ensure correct node synchronization in redundant architectures.

Q: Does the carrier include active electronic components for signal processing?

A: No. The VE3051C0 is a passive backplane carrier module. Its primary function is the routing of DC power and the communication bus to the docked controllers and I/O modules. Maintenance focus should remain on pin integrity and backplane cleanliness.

Field Installation Guidelines

• Mounting: Secure the carrier to the equipment rack using the factory-specified mounting points. A rigid, vibration-resistant mount is mandatory to ensure reliable mating with the backplane connectors, which is critical for avoiding intermittent communication drops.
• Grounding: Bond the carrier chassis directly to the system instrumentation ground. A low-impedance connection is mandatory to provide effective noise immunity and to stabilize the reference voltage for the backplane communication bus.
• Wiring: Terminate field wiring and power distribution cables in accordance with standard industrial torque specifications. Maintain a minimum separation of 150 mm from high-voltage AC lines; this isolation is mandatory to protect the backplane signaling from electromagnetic interference.
