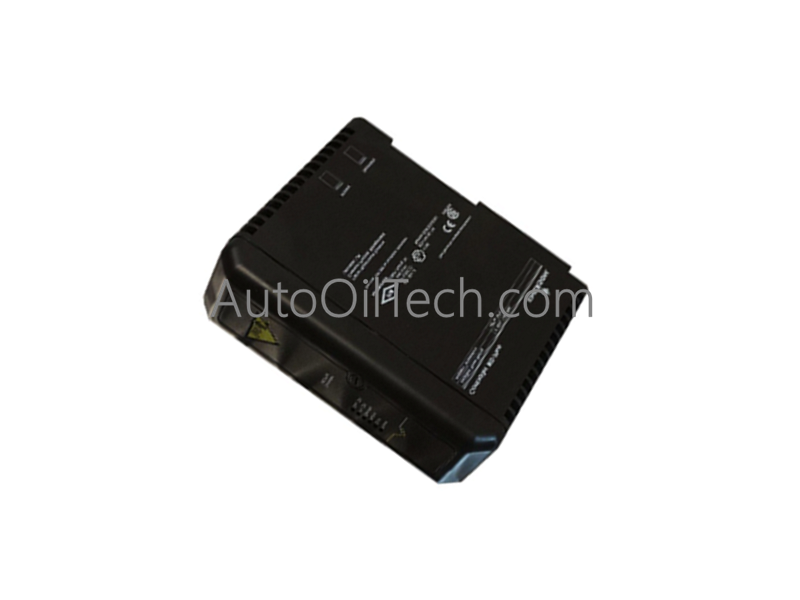

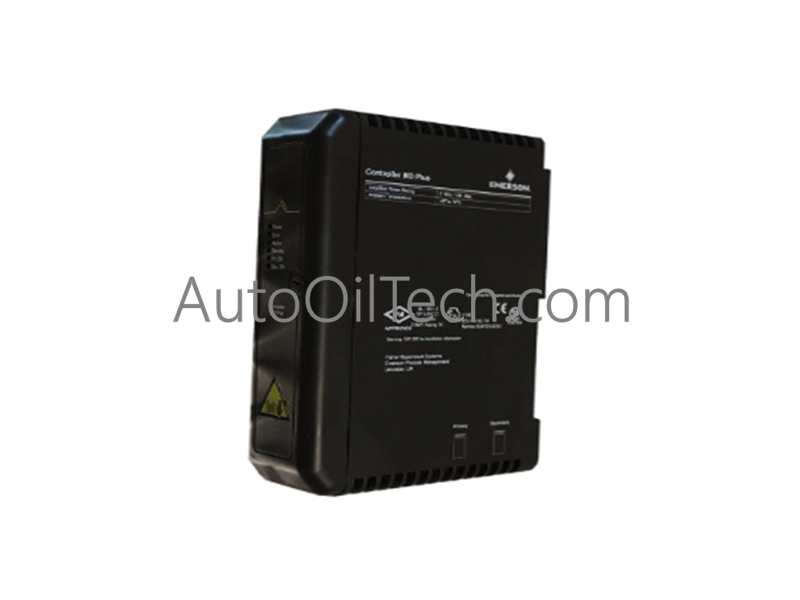

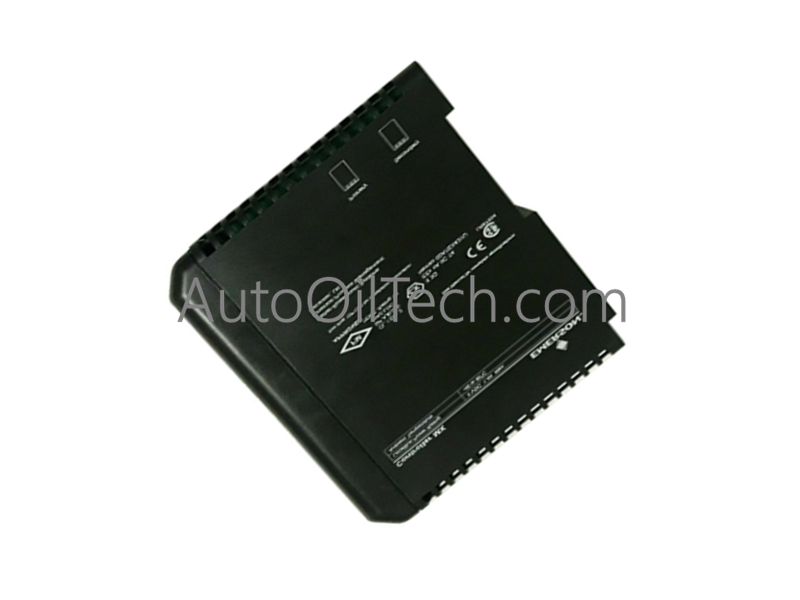

Configured for precision process control execution in DeltaV distributed control networks, the Emerson KJ3102X1-BE1, also cataloged as the KJ3102X1-BE1 8-Channel Analog Output Module, provides direct electrical conversion of digital control signals into analog outputs.
Hardware Specifications
Parameter
Specification
Model
KJ3102X1-BE1
Brand
Emerson
Origin
United States
Weight
1.9 kg
Dimensions
248 mm x 40 mm x 226 mm
Operating Temp
-40 to 60 deg C
Power Consumption
Provided by DeltaV system bus
Number of Channels
8
Signal Type
4-20 mA HART
Accuracy
Within 0.1% of full scale
4-20 mA HART Loop Protocol and Channel-to-Channel Isolation
Engineered for high-density industrial environments, the module executes multi-channel analog output control while maintaining rigorous channel-to-channel isolation. The circuitry interfaces directly with field actuators using the 4-20 mA HART loop protocol, allowing simultaneous transmission of analog control signals and digital diagnostic data. Galvanic isolation barriers protect the internal backplane logic from field-side electrical transients, while high-resolution conversion stages ensure minimal signal drift and precise valve positioning across distributed control loops.
Frequently Asked Questions
Q: Does the KJ3102X1-BE1 module support online hot-swapping?
A: Yes. The module supports hot-swapping within a powered DeltaV carrier, allowing removal and replacement without interrupting active loops on adjacent cards.
Q: How is loop power supplied to the 8 output channels?
A: Loop power is managed through the DeltaV backplane architecture or designated terminal blocks, depending on the specific carrier configuration and field actuator requirements.
Field Installation Guidelines
Inspect the designated DeltaV carrier slot to ensure backplane pins are free of dust, moisture, or mechanical damage.
Align the module housing with the carrier guide rails and push firmly to engage the backplane connectors.
Secure the module using the integrated mechanical retention fasteners to withstand industrial vibration profiles.
Terminate field wiring to the corresponding terminal blocks, ensuring proper shield grounding to mitigate electromagnetic interference.
Verify channel operation and loop communication via the DeltaV diagnostic software interface prior to process commissioning.
