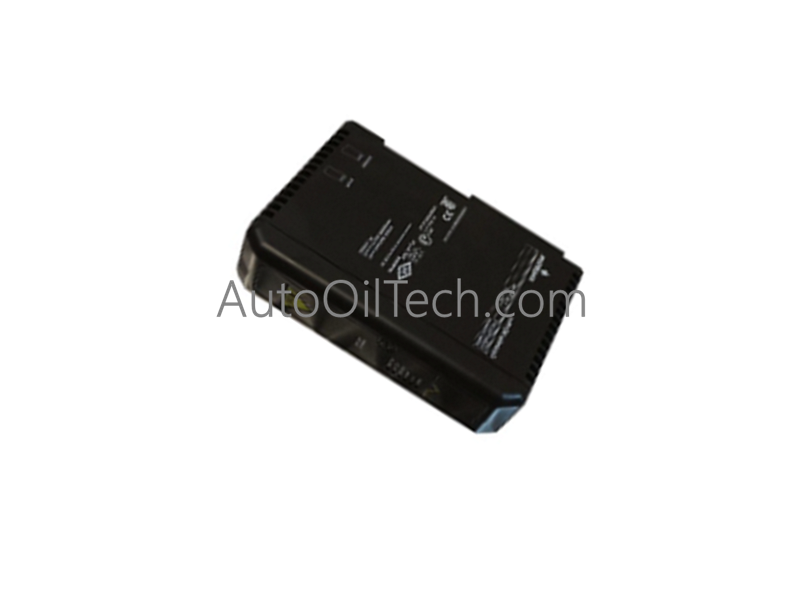

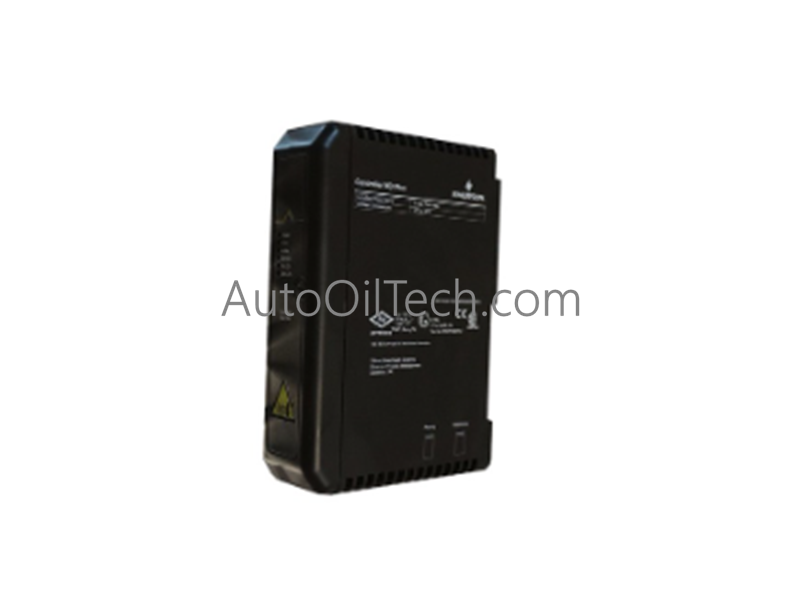

Emerson KJ3002X1-BG2 Thermocouple/mV Input Module

The Emerson KJ3002X1-BG2, also cataloged as the KJ3002X1-BG2 Thermocouple/mV Final Assembly Input Module, operates as a dedicated hardware component for multi-channel temperature signal acquisition within Emerson process control platforms.

Hardware Specifications

Process Control Loop & Signal Conditioning

• Cold Junction Compensation (CJC): Integrates precision CJC reference circuits across thermocouple terminal blocks to eliminate ambient thermal gradient errors in field wiring.
• 4-20 mA HART Loop Protocol Processing: Processes low-millivolt temperature sensor inputs and scales values for integration alongside standard 4-20 mA HART field loop signals.
• Channel-to-Channel Isolation: Implements galvanic isolation barriers across all 8 input channels to suppress common-mode electrical noise and prevent ground loop interference across cabinet wiring.

Frequently Asked Questions

Q: What input signal types are supported by the 8-point analog card? A: The module is designed to accept low-voltage millivolt signals and direct thermocouple sensor wire connections across its 8 input channels.

Q: How should signal wiring shields be grounded to maintain low noise thresholds on mV signals?

A: Ground all cable shields at a single chassis ground bar inside the control cabinet while leaving the field sensor connection ungrounded.

Field Installation Guidelines

• Verify that power supply voltages to the I/O carrier structure are de-energized or stable prior to mounting the module into its carrier slot position.
• Align card guides carefully to avoid mechanical pin damage on the backplane edge connector.
• Route thermocouple extension wire away from high-voltage AC conductors and variable frequency drives to avoid induced electromagnetic noise.
• Tighten terminal block retaining screws to standard torque limits to ensure stable low-resistance wiring contact and accurate thermal compensation.
