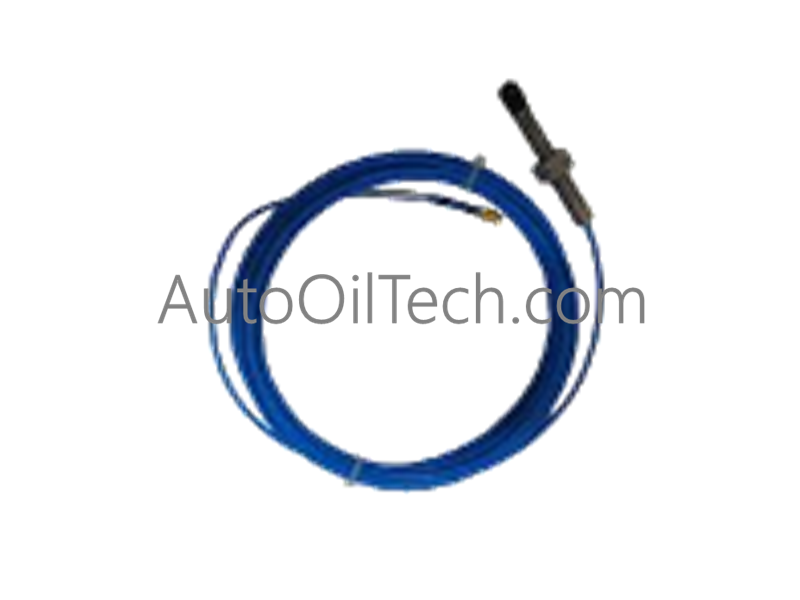

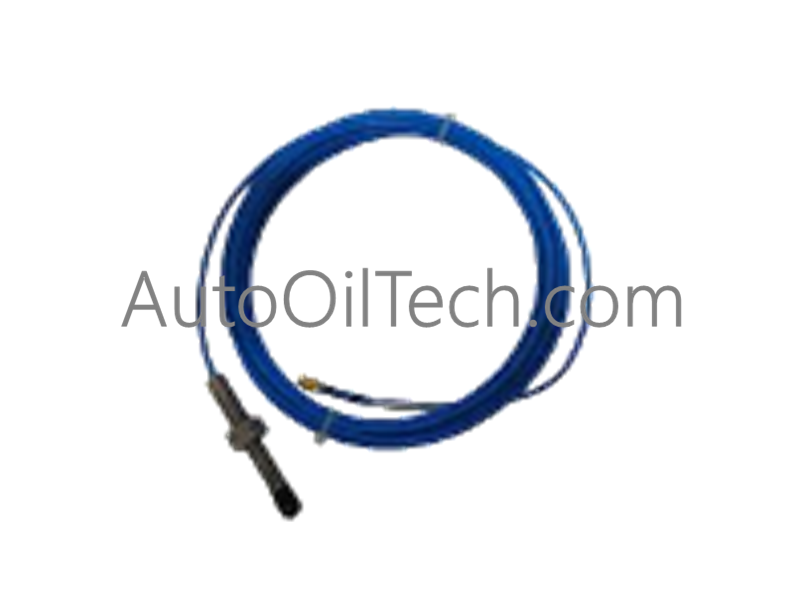

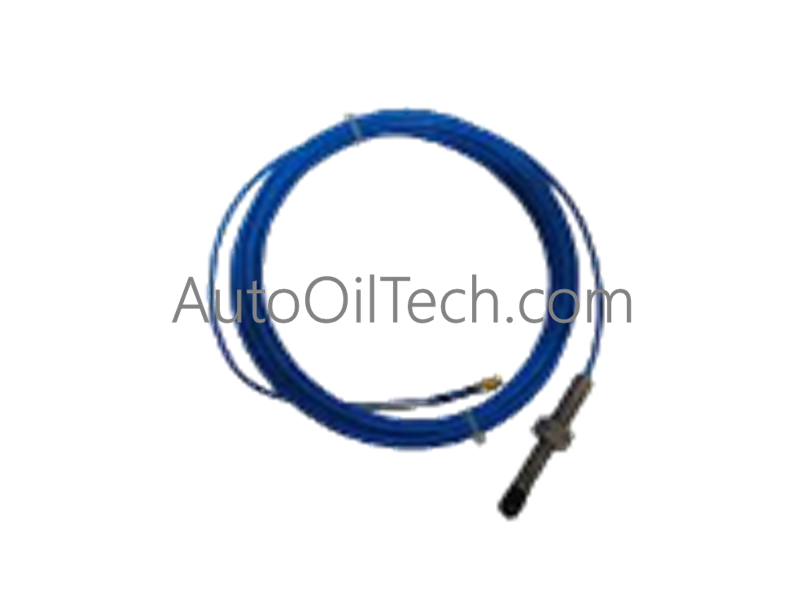

Emerson EZ1080-08-00-010 Eddy Current Proximity Sensor

The Emerson EZ1080-08-00-010, also cataloged as the EZ1080-08-00-010 Eddy Current Proximity Sensor, operates as a dedicated hardware component for non-contact shaft vibration and displacement measurement within AMS EZ1000 monitoring networks.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The probe operates by emitting a high-frequency electromagnetic field from its tip coil into the conductive target surface of the rotating shaft, inducing eddy currents that alter coil impedance proportional to the gap distance. Calibration scaling targets a nominal -10 VDC centerline gap voltage midpoint, producing a standard sensitivity output of 7.87 mV/micron (200 mV/mil) through the mated EZ1000 converter module. This linearity enables real-time monitoring of radial vibration, rotor dynamic behavior, and axial position shifts. Cross-talk suppression is maintained through proper physical spacing rules and coaxial shielding terminations, preventing signal distortion when multiple probes are installed closely on complex machinery trains.

Frequently Asked Questions

Q: What is the required gap voltage calibration target during initial mechanical setup?

A: The probe gap should be adjusted mechanically until the static output voltage reaches -10 VDC, corresponding to the linear middle range of the transducer characteristic curve.

Q: Can the integral cable length be shortened or extended in the field?

A: No. The probe assembly, integral cable, and converter module are calibrated as a matched electrical system. Altering cable length changes total capacitance and destroys output calibration accuracy.

Q: What is the minimum target size required for accurate vibration measurement?

A: The rotating shaft target diameter must be at least three times the probe tip diameter (minimum 24 mm for an 8 mm probe) to prevent edge effect errors on the eddy-current field.

Field Installation Guidelines

1. Ensure the mounting hole is threaded cleanly with an M10 x 1 tap, and deburr the entry point to prevent physical damage to the probe tip during threading.
2. Maintain a minimum radial clearance distance of 25 mm between adjacent probe tips to eliminate mutual electromagnetic interference (cross-talk) between sensor channels.
3. Torque the probe body gently using a calibrated wrench, applying thread lock compound compatible with high-temperature environments if vibration loosening is anticipated.
4. Route the coaxial signal cable away from high-power motor leads and variable frequency drive outputs, securing the shield ground properly at the monitor rack panel termination.
