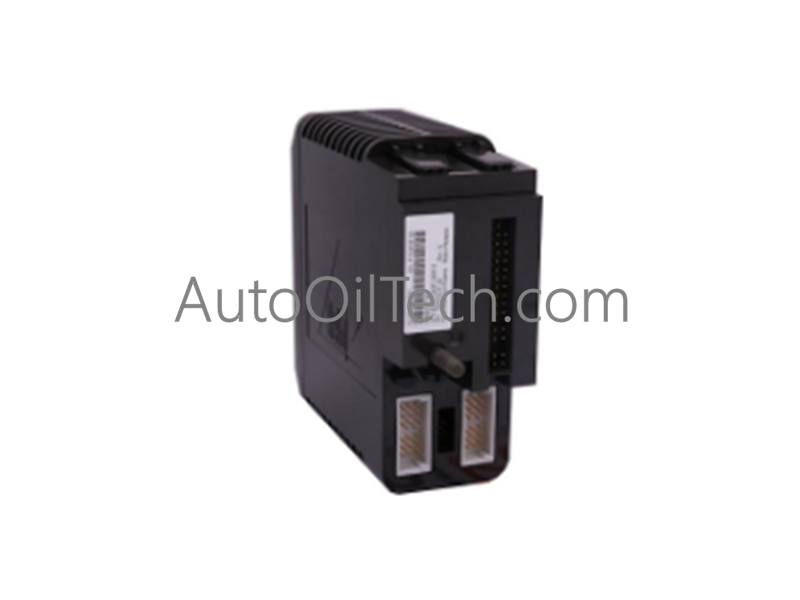

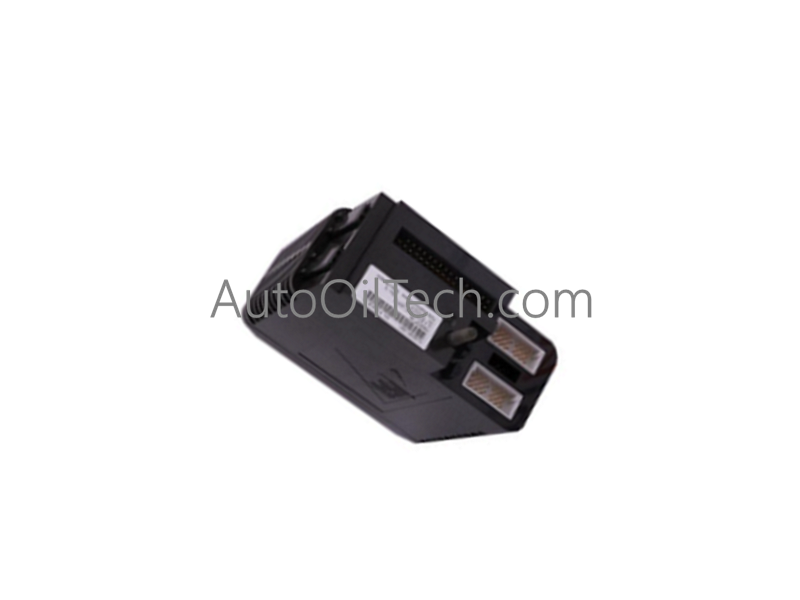

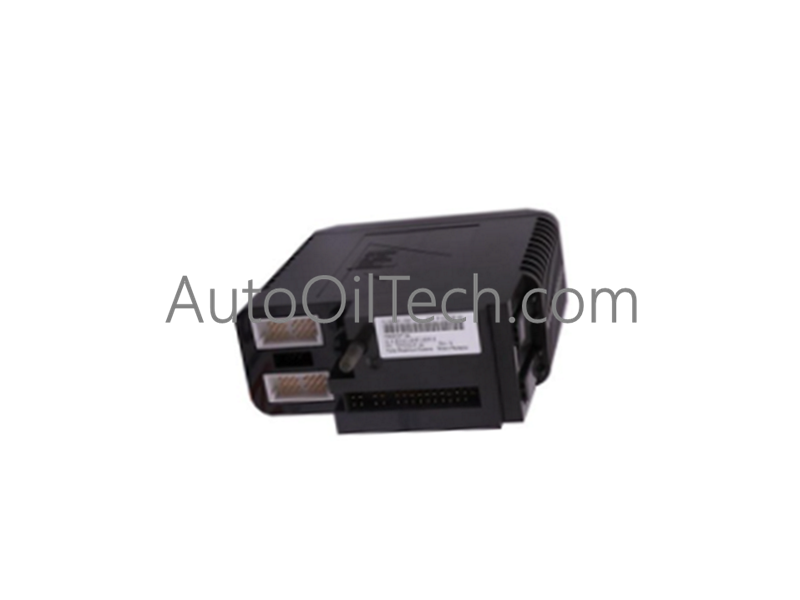

Emerson DeltaV VE4033S2B1 Redundant Analog Input Card

The DeltaV VE4033S2B1, also cataloged as the VE4033S2B1 Redundant Analog Input Card, operates as a dedicated hardware component for monitoring 4-20 mA HART analog field signals within DeltaV Distributed Control System platforms.

Hardware Specifications

Process Control & DCS Integration

The VE4033S2B1 provides a high-reliability analog interface, linking continuous-variable process instruments to central processing logic.

• 4-20 mA HART Loop Protocol: The module processes raw analog signals while using integrated HART modems to decode super-imposed digital field data. This enables the host asset management software to continuously query secondary variables, calibration diagnostics, and device status without interrupting the primary analog variable.
• Channel-to-Channel Isolation Parameters: To maintain systemic signal integrity, the module incorporates robust galvanic and optical isolation. This isolation prevents ground differentials and inductive noise from degrading signal quality on adjacent channels, preserving analog accuracy in high-electromagnetic interference environments.
• Redundant Architecture & Auto-Switchover: When seated on a redundant terminal block alongside an identical partner module, the two cards function in an active-standby configuration. Integrated diagnostics continuously monitor the hardware integrity of each card, enabling a rapid, bumpless automatic switchover to the backup module if an internal channel failure is detected.

Frequently Asked Questions

• Q: How does the VE4033S2B1 handle transmitter loop power?
• A: The module can distribute 24 VDC field circuit power directly to 2-wire transmitters through its terminal connection blocks, or it can be configured to accept passive inputs from externally powered 4-wire transmitters.
• Q: Can an individual channel be replaced or serviced without affecting the other active loops?
• A: Under redundant configuration, removing the active card triggers a bumpless transfer of all 8 channels to the standby partner module. This allows you to hot-swap the faulty module under power without disrupting the active process loops.
• Q: What diagnostics are available to identify a broken field wire?
• A: The module performs continuous open-circuit detection. If the input loop current drops below 3.0 mA, the module registers a channel-level open fault and transmits a signal-failure diagnostic alarm to the operator workstation.

Field Installation Guidelines

• Module Carrier Alignment: Position the module over the carrier guide slots. Slide the card backward until the high-density backplane pins align and seat firmly into the carrier connector, then tighten the securing screw to 0.4 Nm.
• Shield Grounding Practice: Terminate all analog cable shields at a single ground bus bar within the Marshalling cabinet. Do not connect the cable shield to ground at both the cabinet and the field instrument housing to avoid ground loops.
• Convective Cooling Spacing: Ensure a minimum clearance of 50 mm above and below the module carrier rails to allow natural convective airflow. Obstructing these vents can elevate internal temperatures and accelerate component degradation.
