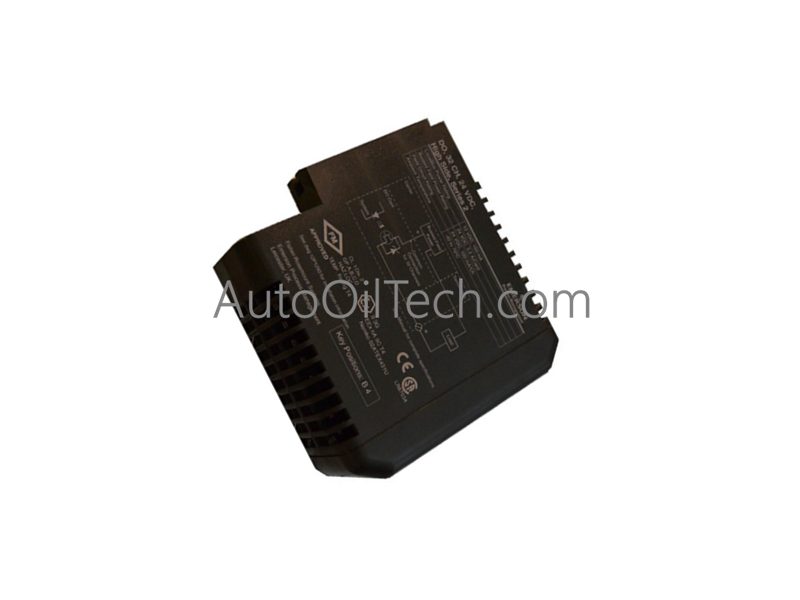

The Emerson DeltaV KJ2005X1-MQ1, also cataloged as the MQ Controller PLC Module, operates as a dedicated hardware component for process execution and I/O bus control within Emerson DeltaV DCS platforms.
Hardware Specifications
Parameter
Specification
Model
KJ2005X1-MQ1
Brand
Emerson DeltaV
Origin
USA
Weight
1.00 lb
Dimensions
4.1 x 5.2 x 1.8 in
Operating Temp
0 to 60 deg C
Power Consumption
7.0 W
Input Voltage
5 VDC
Current Draw
1.4 A
Mounting Type
DeltaV 2-Slot / 4-Slot Carrier
Isolation
Channel-to-system galvanic isolation
HART Protocol Integration and Bus Execution
Digital Communication Handling: The controller manages real-time fieldbus signal translation across 4-20 mA HART loop protocol connections, processing dynamic variable updates and device diagnostics.
Bus Master Control: Communicates across the local I/O subsystem bus to execute deterministic control loops with timing precision under high channel density conditions.
Galvanic Protection Layer: Integrates channel-to-system electrical isolation to suppress ground loops and prevent common-mode voltage spikes from impacting internal backplane logic.
Frequently Asked Questions
Q: What are the backplane current requirements for the KJ2005X1-MQ1 controller?
A: The module draws up to 1.4 A at 5 VDC directly from the carrier backplane power distribution bus during normal operating states.
Q: Can the KJ2005X1-MQ1 controller be removed or installed while power is applied?
A: The module supports removal and insertion under power (RIUP) on powered DeltaV carrier bases, provided field wiring and carrier interlocks remain intact.
Q: How is system clock synchronization handled across connected I/O modules?
A: Internal hardware timers synchronize execution frames directly via the backplane system clock, maintaining deterministic loop timing across associated analog and digital I/O channels.
Field Installation Guidelines
Carrier Mounting: Insert the module squarely onto the DeltaV carrier card slot until the upper and lower mechanical latches fully engage with the backplane connector.
Grounding Protocols: Verify that the DIN rail and carrier shield grounding bar maintain a low-impedance bond to the plant instrument earth bus before energizing the 5 VDC power supply rail.
Thermal Clearances: Ensure a minimum vertical clearance of 50 mm above and below the carrier assembly to allow natural convective heat dissipation across the heatsink channels.
Wiring Constraints: Route field communication lines separately from high-voltage AC distribution power cables to prevent electromagnetic coupling into 4-20 mA loop circuits.
