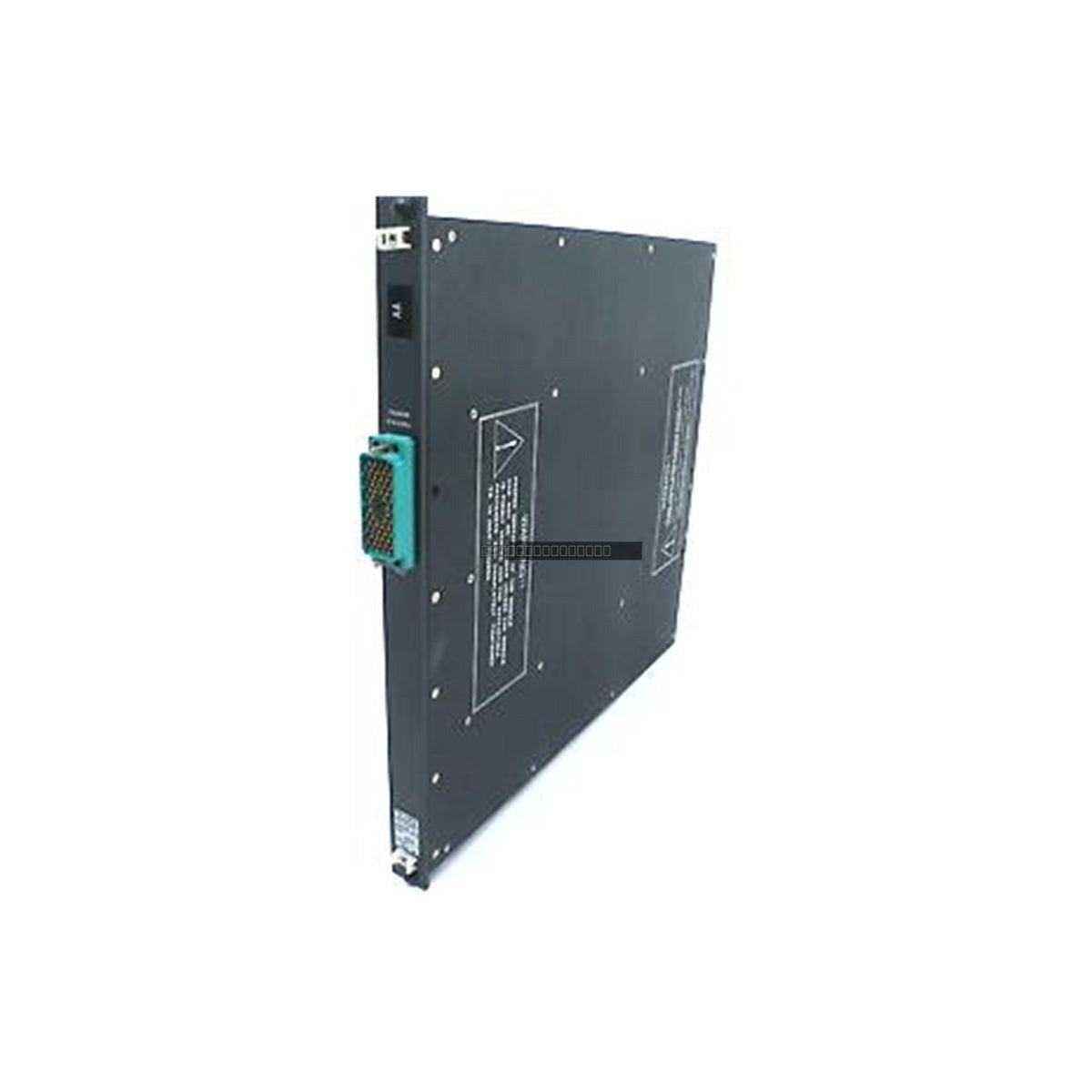

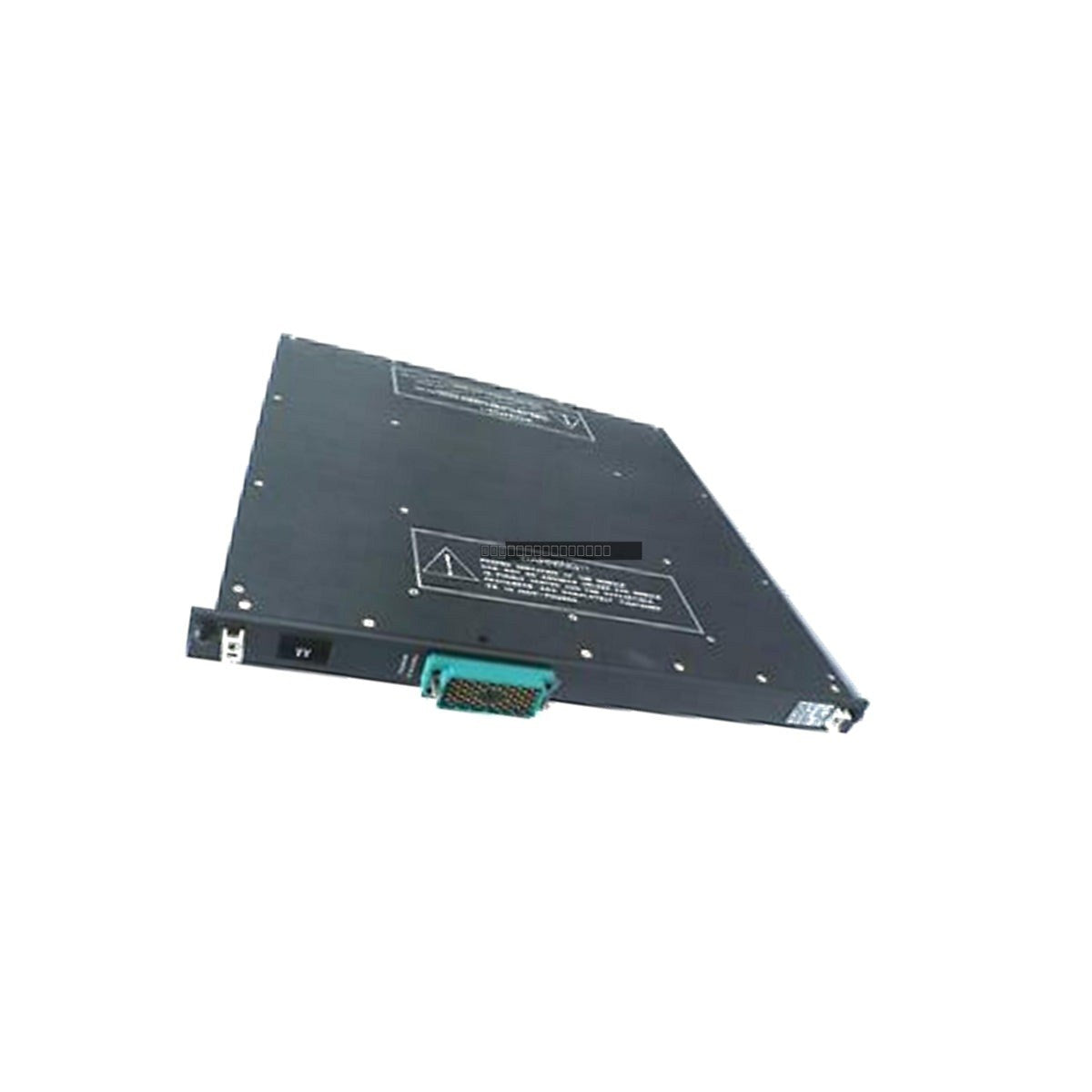

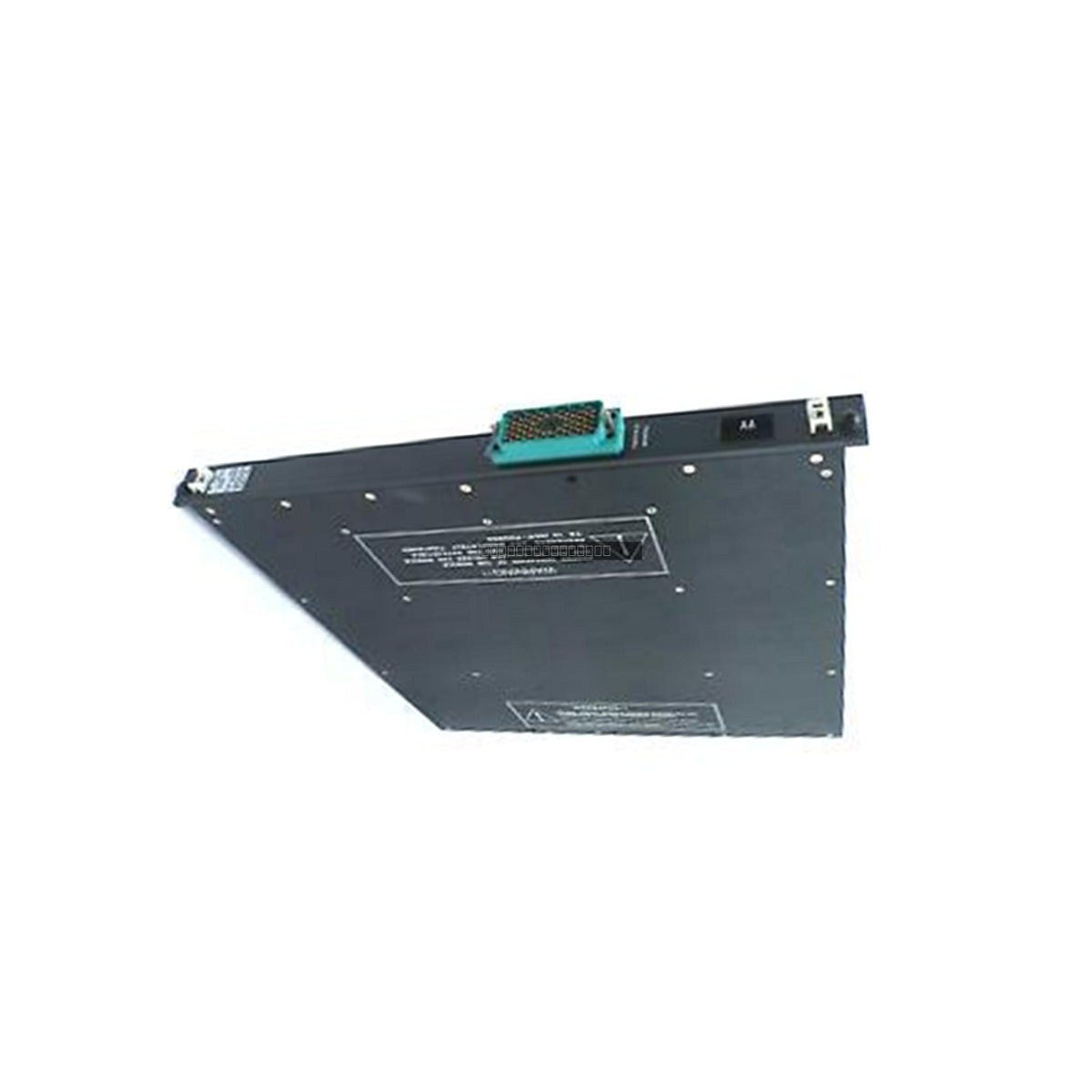

Invensys Triconex 2651 Digital Output Assembly Module

Description

The Invensys Triconex 2651 is a high-reliability digital output assembly designed for the Triconex safety-instrumented system (SIS). Engineered for 115 VAC operation, this module facilitates the controlled switching of field actuators, solenoids, and motor starters in high-integrity environments. It is predominantly utilized in emergency shutdown (ESD) systems and fire and gas (F&G) applications within refineries, petrochemical plants, and offshore platforms. By integrating robust signal isolation and high-capacity switching logic, the 2651 ensures that critical safety commands are executed with precision. Utilizing this assembly within a legacy Triconex rack helps mitigate the risks of signal interference and hardware failure, maximizing plant uptime and personnel safety.

Features

• Designed for 115 VAC digital output applications.
• Supports Triple Modular Redundancy (TMR) voting logic for high-integrity safety systems.
• Industrial-grade construction optimized for handling inductive loads.
• Integrated diagnostic capabilities for monitoring output channel health, including open-circuit and short-circuit detection.
• Ruggedized design for thermal stability and electromagnetic compatibility (EMC) in harsh environments.

Applications

The 2651 module is specifically engineered for critical safety applications, including:

• Emergency Shutdown (ESD) Systems.
• Fire and Gas (F&G) monitoring and suppression control.
• High-integrity control of field actuators and solenoid valves.
• Petrochemical and refinery process safety management.

Technical Specifications

Installation Guidelines

• Ensure the Triconex rack is powered down before inserting or removing the module to prevent electrical arcing or damage to the backplane connectors.
• Handle the module using standard ESD (Electrostatic Discharge) protective measures.
• Verify that the field wiring is correctly terminated according to the specific loop diagrams for your safety system.
• Ensure adequate ventilation in the cabinet to maintain the operating temperature within the 0 to 60 deg C range.
• Confirm that the module is fully seated in the backplane to ensure proper contact and communication with the TMR processor.

FAQ

Is this module compatible with modern Triconex systems?
The 2651 is typically used in legacy Triconex SIS architectures. Please verify your specific system revision and backplane compatibility before installation.

Does this module support TMR?
Yes, the 2651 is designed to integrate into the Triconex TMR (Triple Modular Redundancy) architecture, which is standard for safety-critical applications.
