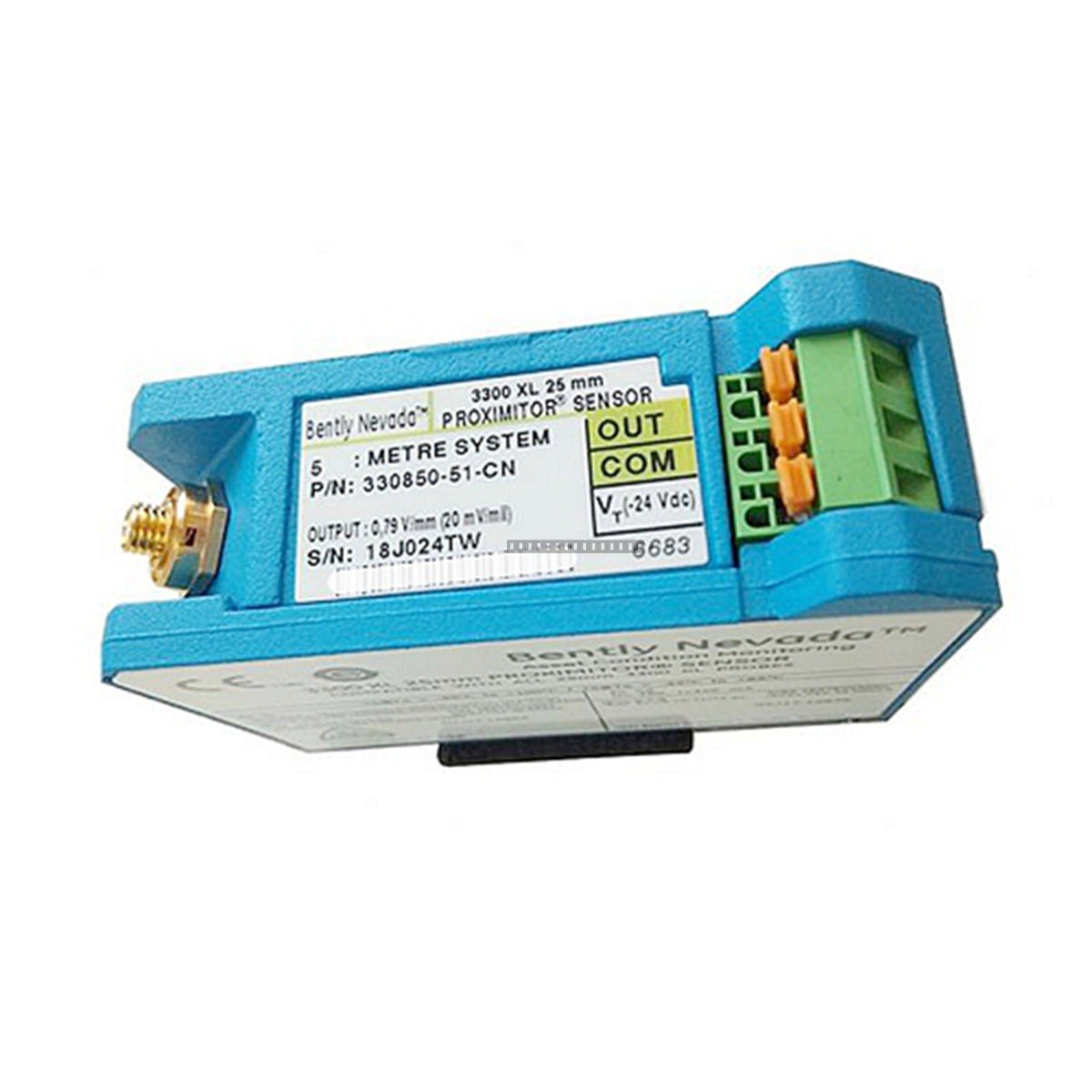

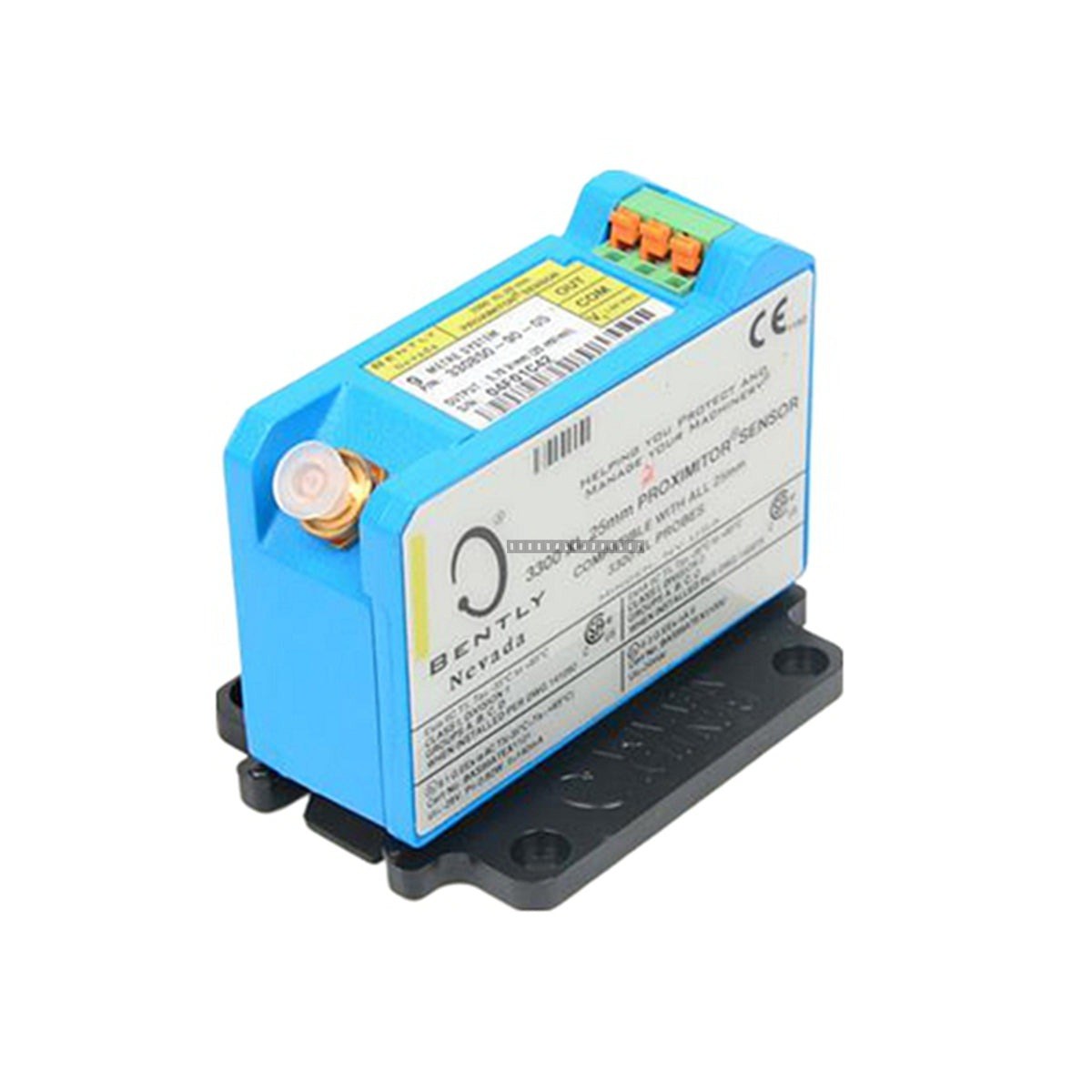

Bently Nevada 330180-50-05 3300 XL Proximitor Sensor

Description

The Bently Nevada 330180-50-05 is a 3300 XL Proximitor Sensor designed as an integral component of the Bently Nevada 3300 XL 8mm Proximity Transducer System. This sensor works in conjunction with a 3300 XL 8mm probe and a 3300 XL extension cable to provide an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface. It enables both static (position) and dynamic (vibration) measurements for critical rotating machinery.

Features

• Designed for high-density DIN-rail installations or traditional panel mount configurations.
• Maintains an identical 4-hole mounting footprint to older Proximitor Sensor designs for seamless backward compatibility.
• Fully complies with API 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability.
• Supports complete interchangeability of probes, extension cables, and sensors without the need for bench calibration.
• Operates with a -24 Vdc power supply and provides a linear output range of 2.0 mm (80 mils).

Applications

• Fluid-Film Bearing Machines: Radial vibration and axial thrust position monitoring.
• Speed & Phase Measurements: Keyphasor reference, tachometer, and zero-speed detection.
• Compression & Pumping Systems: Centrifugal, refrigeration, and process gas compressors, as well as high-performance pumps.
• Power Generation: Permanent monitoring of turbines, generators, and electric motors.
• Harsh Environments: Suitable for oil/gas and petrochemical applications involving extreme temperatures and contaminants.

Technical Specifications

Installation Guidelines

• Mounting: Can be installed on DIN-rail or via 4-hole panel mount configuration. Ensure the mounting surface is clean and provides adequate grounding.
• Connections: Use the gold-plated ClickLoc connectors to join the probe and extension cable. Tighten finger-tight until a "click" is heard; do not use tools to tighten connectors.
• Gap Setting: For radial vibration, the recommended gap is typically 1.27 mm (50 mils), corresponding to an output of approximately -9 Vdc.
• Handling: As a precision electronic component, handle with care to avoid damage to the connectors. Ensure the system is powered down before making or breaking electrical connections.
• Environment: Ensure the installation area is free from excessive moisture or corrosive agents unless the housing is rated for such conditions.

FAQ

What is the Bently Nevada 330180-50-05?

It is a 3300 XL 5/8 mm Proximitor Sensor, a critical component in proximity transducer systems for non-contact vibration and position monitoring of rotating machinery.

Is it compatible with older systems?

Yes, it is backward compatible with other non-3300 XL series 3300 transducer system components and works with all 5 mm and 8 mm 3300/3300 XL probes.
