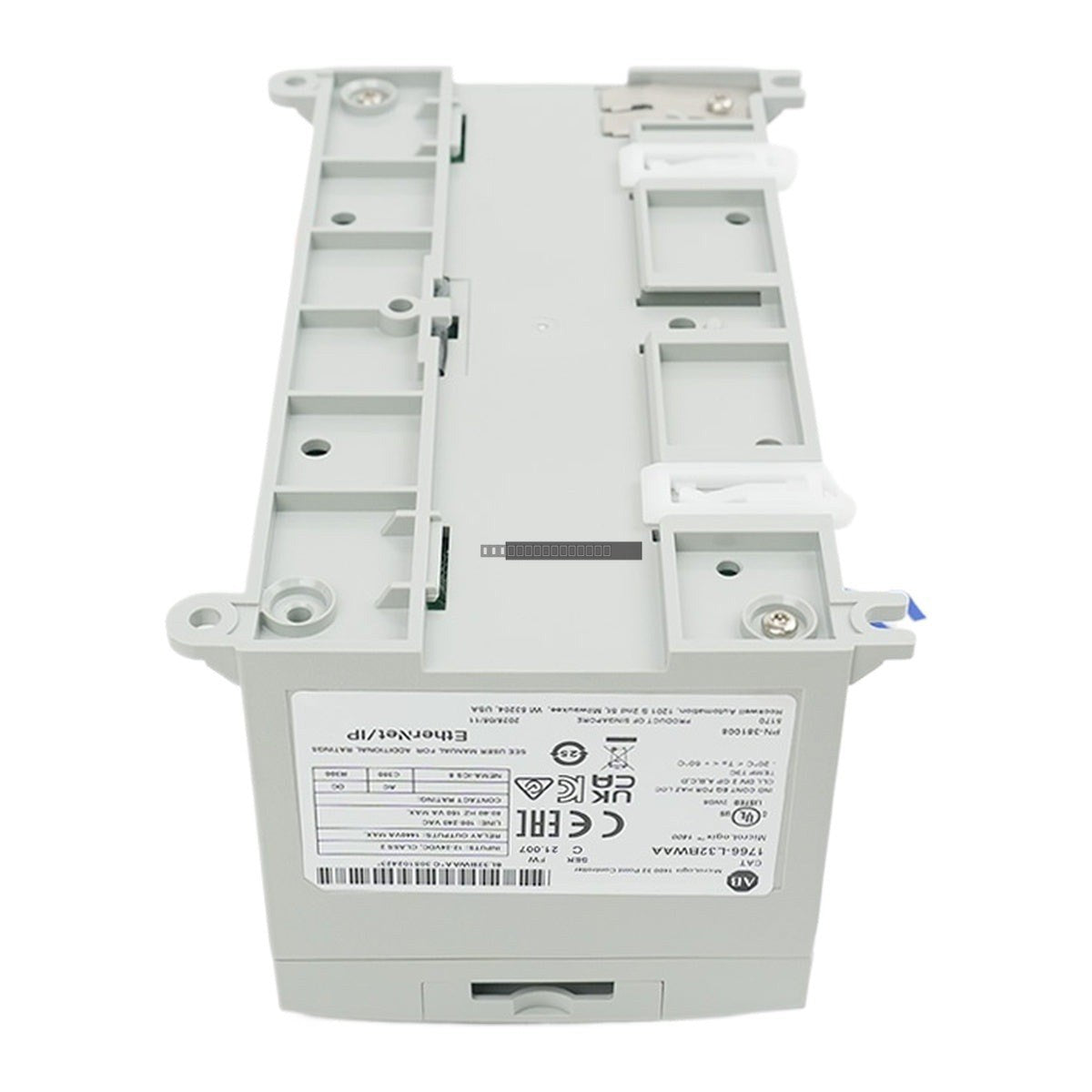

Allen-Bradley 1766-L32BWAA MicroLogix 1400 Programmable Logic Controller

The Allen-Bradley 1766-L32BWAA is a high-performance MicroLogix 1400 controller designed for versatile industrial automation tasks. This compact PLC offers robust processing capabilities, integrated analog and digital I/O, and advanced communication features, making it a reliable choice for small to medium-scale control systems.

Features

• Integrated Ethernet/IP port for seamless network integration.
• Built-in LCD screen with backlight for local status monitoring and network configuration.
• Supports up to seven 1762 expansion I/O modules for system scalability.
• Includes three communication ports: one Ethernet, one isolated RS-232/RS-485 combo, and one non-isolated RS-232C port.
• Battery-backed RAM for data retention.
• Panel or DIN-rail mounting options for flexible installation.

Applications

• General Industrial Machinery: Packaging, material handling, conveyors, and assembly lines.
• Process Control: PID loop management for chemical, oil, and gas applications.
• Water and Wastewater: SCADA integration for pump and valve control.
• Food & Beverage: Batch processing and automated sensor monitoring.
• HVAC and Building Automation: Lighting and climate control systems.

Technical Specifications

Installation Guidelines

• Mounting: The controller can be mounted on a DIN rail or directly to a panel. Ensure adequate clearance around the unit to allow for proper ventilation and heat dissipation.
• Wiring: Use an isolating transformer for AC power supply. Connect 0V DC to the neutral terminal and use the provided 24V DC user power terminal for field devices.
• Environmental: Keep the protective debris strip on the top of the controller during installation to prevent foreign material from entering the unit.
• Safety: Always disconnect all power sources before inserting or removing the controller or any expansion modules.
• Programming: Requires RSLogix 500 software (version 8.1 or higher recommended) for configuration and logic development.

FAQ

What is the primary function of the 1766-L32BWAA?

The 1766-L32BWAA is a programmable logic controller (PLC) used to automate industrial processes by monitoring inputs and controlling outputs based on user-defined logic.

What does the 'AA' suffix represent in the model number?

The 'AA' suffix indicates that this specific model includes integrated analog I/O capabilities, specifically 4 analog inputs and 2 analog outputs.

Can this controller be expanded?

Yes, the 1766-L32BWAA supports the addition of up to seven 1762 series expansion I/O modules to increase the total I/O count.

What communication protocols are supported?

It supports EtherNet/IP via the built-in Ethernet port, as well as standard serial protocols (DF1, DH-485, Modbus RTU) via its RS-232/RS-485 ports.
