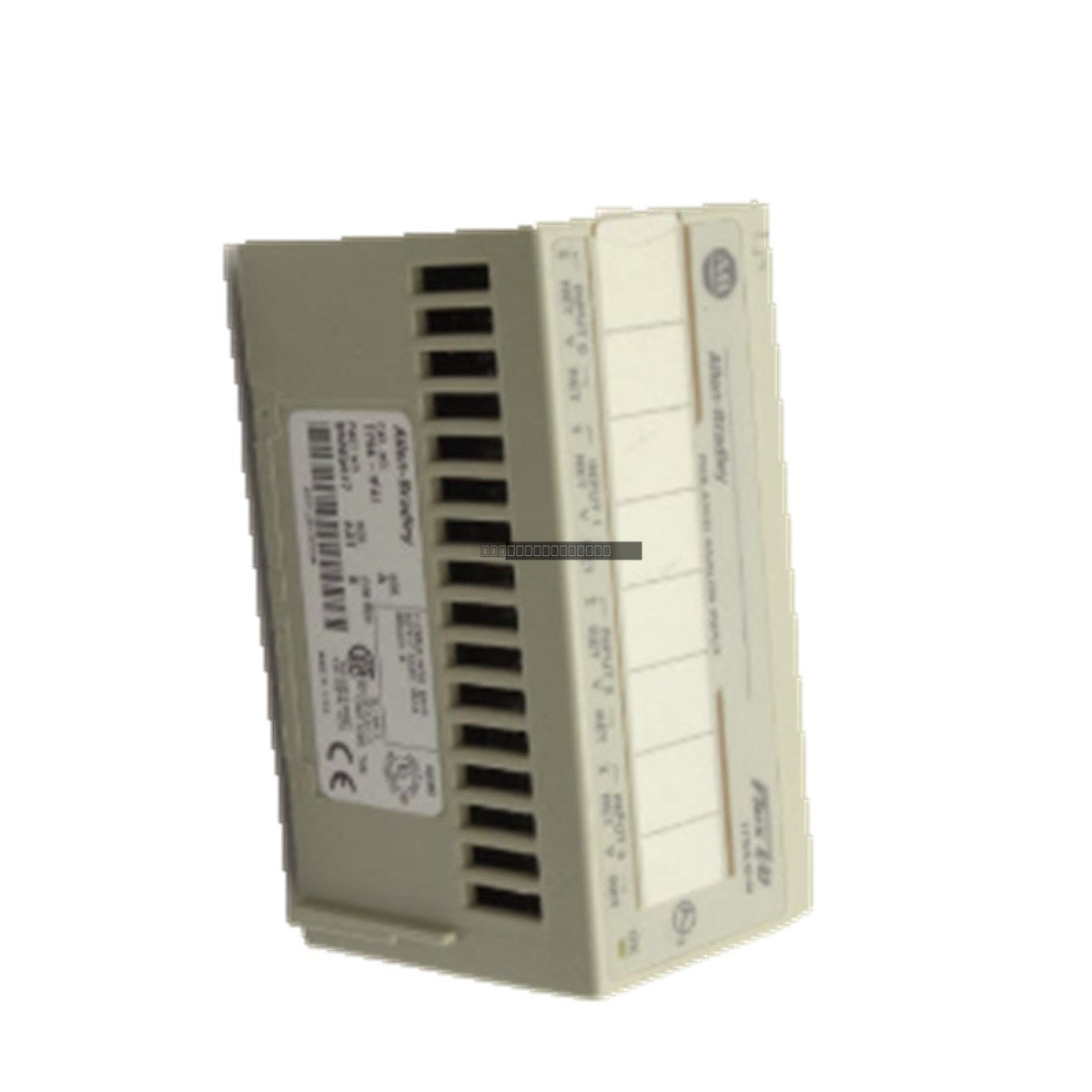

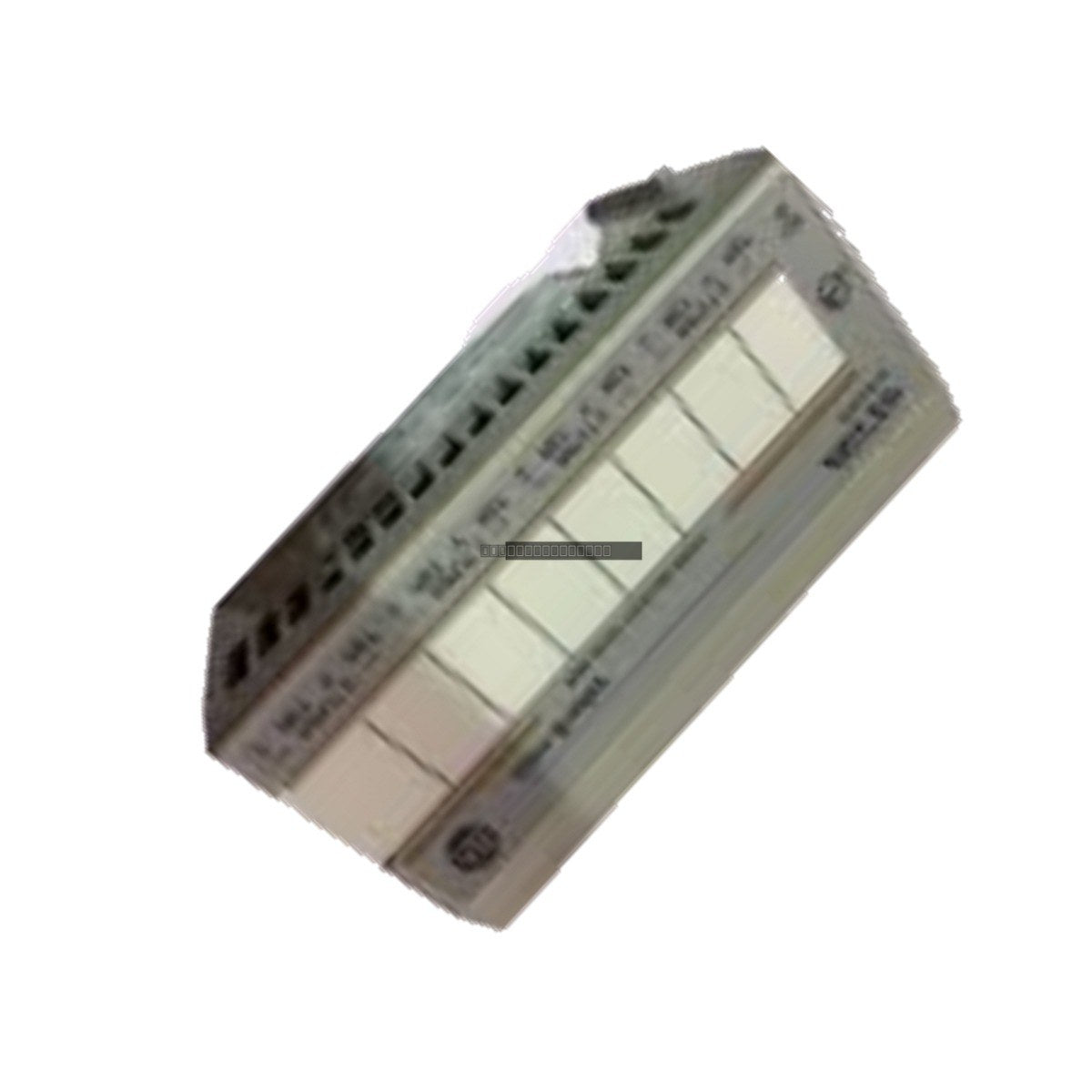

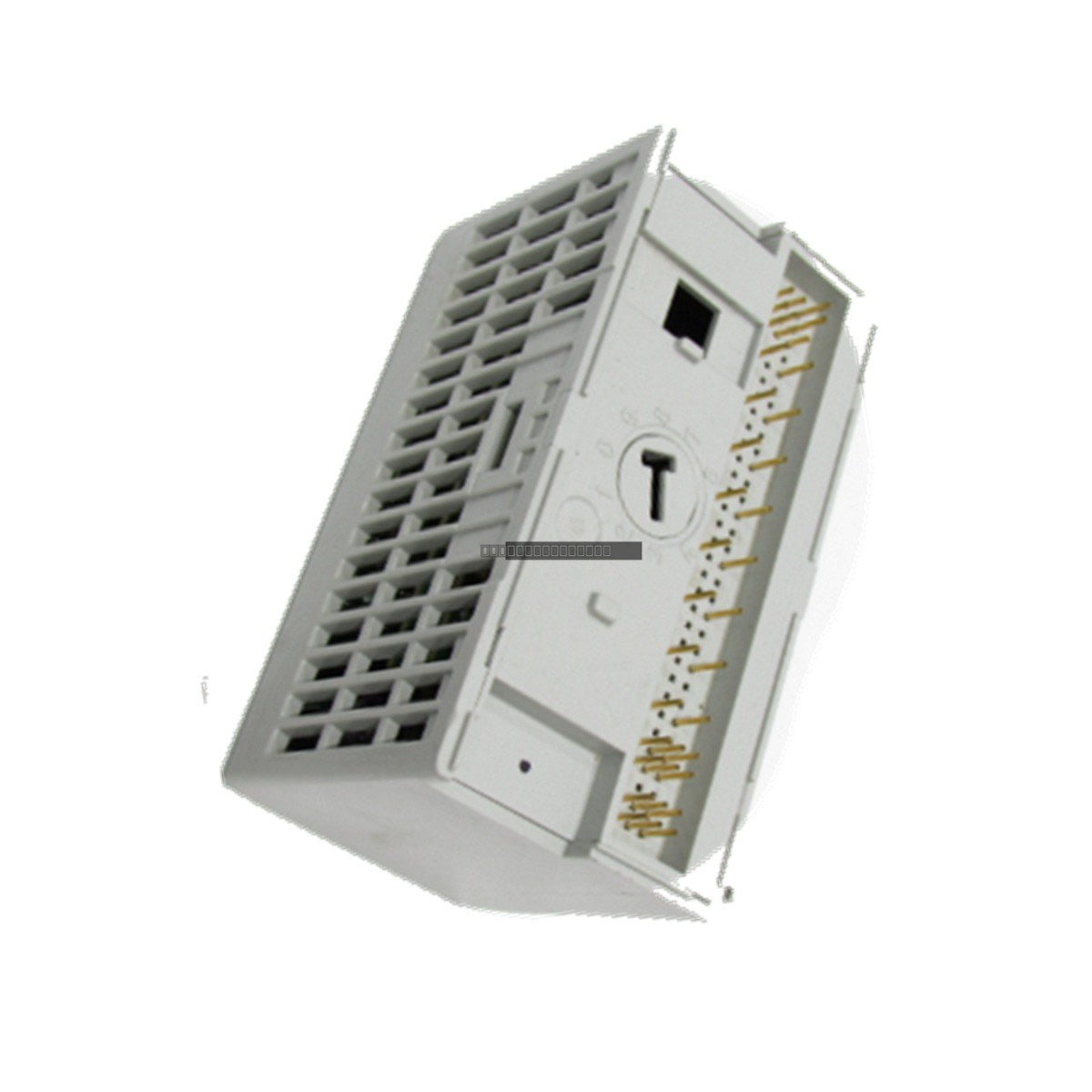

Allen-Bradley 1794-IF2XOF2I FLEX I/O Isolated Analog Combination Module

The Allen-Bradley 1794-IF2XOF2I is a high-performance, fully isolated analog combination module designed for the FLEX I/O 1794 decentralized architecture. This module provides a robust interface for mixed-signal applications, featuring two galvanically isolated analog inputs and two galvanically isolated analog outputs in a single, compact hardware unit. It is specifically engineered to operate in demanding industrial environments where electrical noise, ground loops, and signal interference are common, ensuring reliable data acquisition and control for critical automation processes.

Features

• Channel-to-Channel Isolation: Provides complete galvanic isolation between all input and output channels, effectively eliminating ground loop errors and protecting the backplane from electrical surges.
• High-Resolution Conversion: Employs Sigma-Delta ADC technology to deliver 16-bit resolution, ensuring precise measurement of process variables.
• Configurable Filtering: Supports user-selectable conversion rates of 150 Hz, 300 Hz, and 600 Hz, allowing for flexible signal conditioning without the need for manual recalibration.
• Deterministic Communication: Utilizes Block Transfer Read (BTR) and Block Transfer Write (BTW) instructions for consistent, reliable data exchange with the host controller.
• Flexible Signal Support: Compatible with standard 4-20 mA current loops and +/-10 VDC voltage signals on both input and output channels.

Applications

The 1794-IF2XOF2I is ideal for space-constrained automation nodes in industries such as oil and gas, chemical processing, pharmaceutical manufacturing, and power generation. It is particularly suited for applications requiring high signal integrity in the presence of significant electromagnetic interference (EMI).

Technical Specifications

Installation Guidelines

• Terminal Base: This module requires a compatible FLEX I/O terminal base for operation. Ensure the base is properly mounted to a 35 mm DIN rail or a flat surface before inserting the module.
• Keyswitch Alignment: Verify that the mechanical keyswitch on the terminal base matches the module's physical indexing to prevent incorrect insertion.
• Power Requirements: Ensure the power supply is within the specified range (up to 31.2 VDC) and that the system is powered down before installing or removing the module from the terminal base.
• Wiring: Use shielded twisted-pair cabling for all analog signals to minimize EMI. Ensure proper grounding of the shield at the source or the module end as per standard industrial practices.
• Environment: This is an open-style device; it must be installed within an appropriate industrial enclosure that provides protection against environmental contaminants.

FAQ

Q: Does this module require external power?
A: Yes, the 1794-IF2XOF2I requires an external DC power source connected to the terminal base to power the analog circuitry.

Q: Can I use both voltage and current signals simultaneously?
A: Each channel is configurable, but you must adhere to the wiring guidelines to ensure signal integrity. Only one signal type should be connected to an individual channel at any given time.

Q: How is the module configured?
A: Configuration is handled via the host controller using Block Transfer Write (BTW) instructions to set parameters such as filter rates and data formats.
