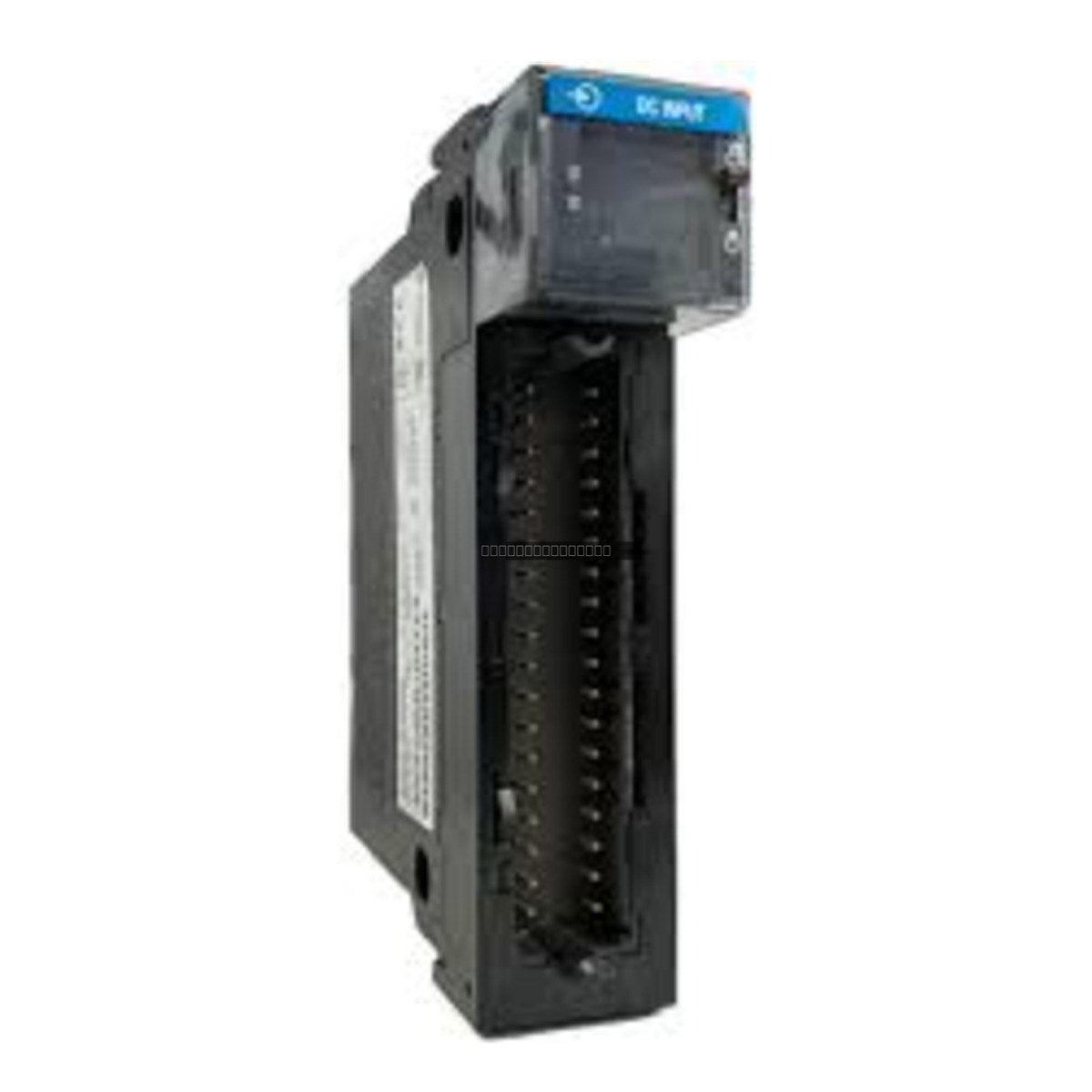

The Allen-Bradley 1756-IB16D is a high-performance 16-point diagnostic digital input module designed for integration within the ControlLogix platform. This module provides reliable signal sensing for 12-24V DC sink input applications, incorporating advanced diagnostic capabilities to monitor field-side wiring and signal integrity for critical industrial control processes.
Features
16 diagnostic digital inputs designed for sink-type configurations.
Wide operating voltage range of 10-30V DC to accommodate various field device requirements.
Advanced diagnostics to detect open-wire and short-circuit conditions.
Optimized for efficient power usage with a maximum dissipation of 5.8 Watts at 60 degC.
Integrated status indicators for real-time visual monitoring of I/O point states.
Applications
This module is engineered for use in demanding industrial environments where diagnostic feedback is required to reduce downtime. It is commonly deployed in automated manufacturing lines, process control systems, and safety-related monitoring applications where detecting faulty field wiring or sensor failure is essential.
Technical Specifications
Model Number
1756-IB16D
Input Type
16-Point Diagnostic Sink
Input Voltage Range
10-30V DC
Operating Voltage
12-24V DC
Off-State Current (Max)
1.5 mA per point
Backplane Current (5V)
150 mA
Power Dissipation
5.8 Watts at 60 degC
Installation Guidelines
Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
Verify that the module is fully seated and the locking mechanism is engaged in the appropriate chassis slot.
Use shielded cables for field wiring to minimize electromagnetic interference (EMI) in high-noise environments.
Ensure that the 12-24V DC power supply is properly grounded and within the specified operating limits.
Maintain proper ventilation within the cabinet to keep the ambient temperature below 60 degC for optimal module lifespan.
FAQ
What is the primary function of the 1756-IB16D diagnostic module?
The 1756-IB16D is designed to receive digital input signals from field devices while providing diagnostic feedback, such as detecting open or short circuits, which allows the PLC to identify faults in the field wiring or sensor hardware.
Can this module be used in a standard ControlLogix chassis?
Yes, the 1756-IB16D is a standard ControlLogix I/O module and is compatible with any standard ControlLogix chassis, requiring a single slot for installation.
