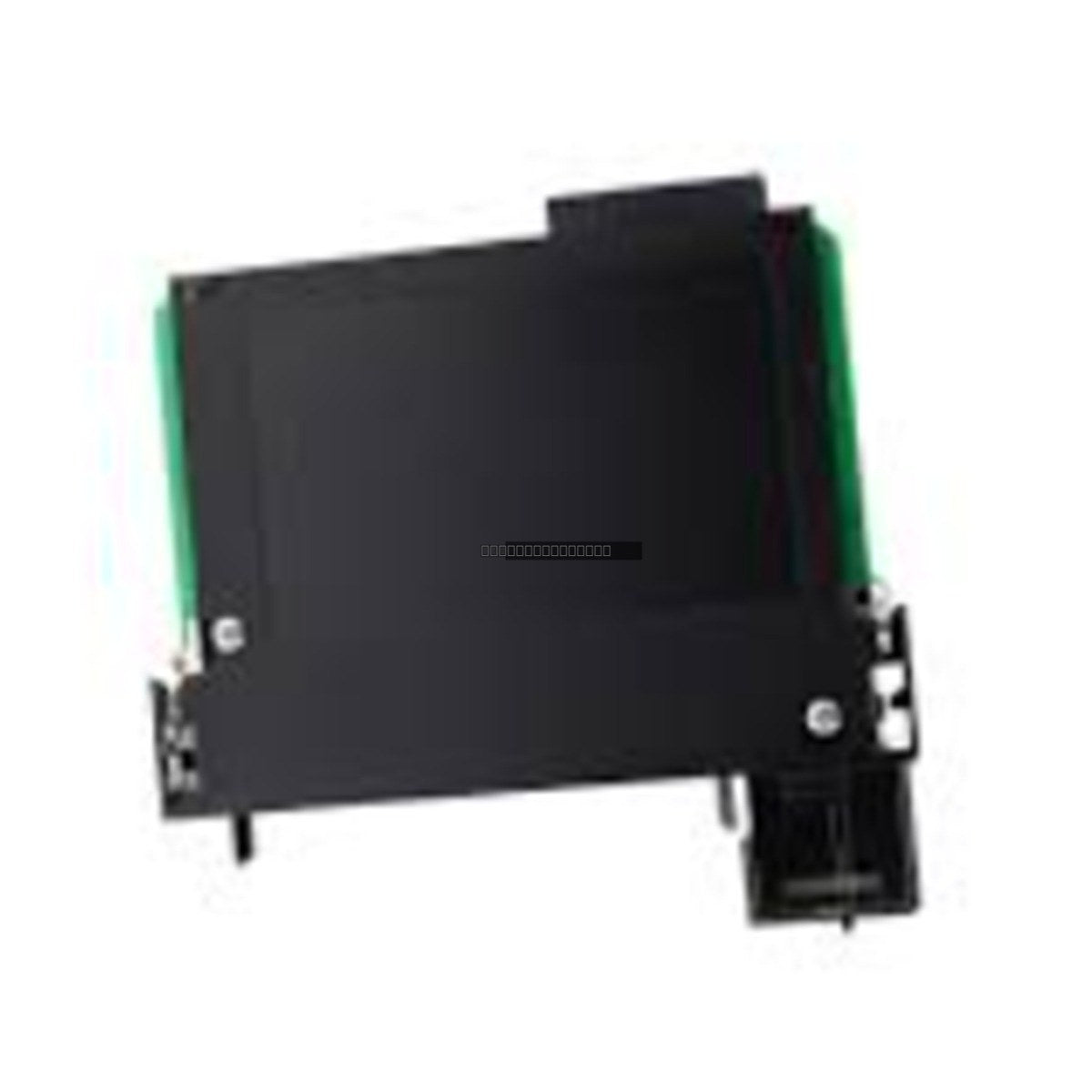

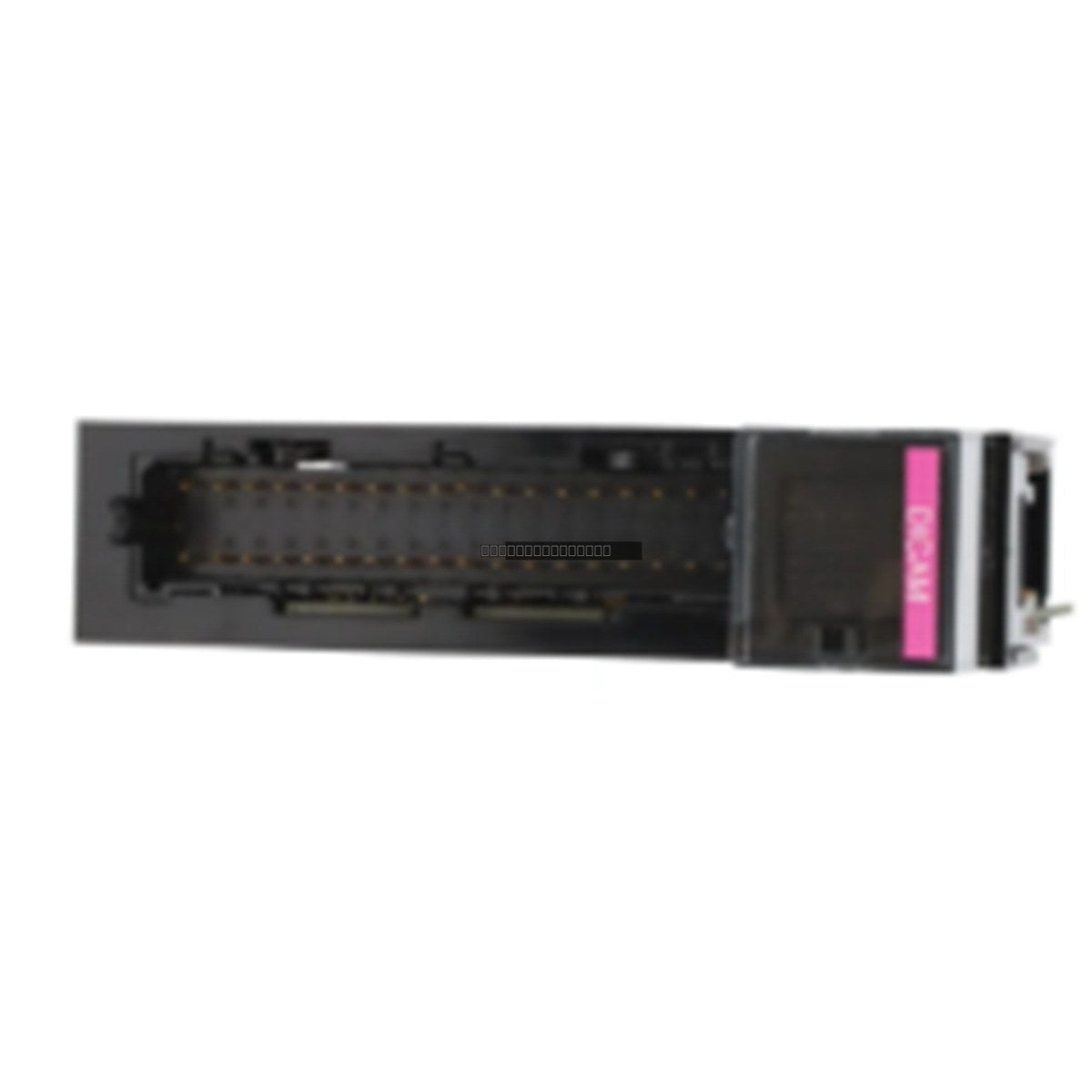

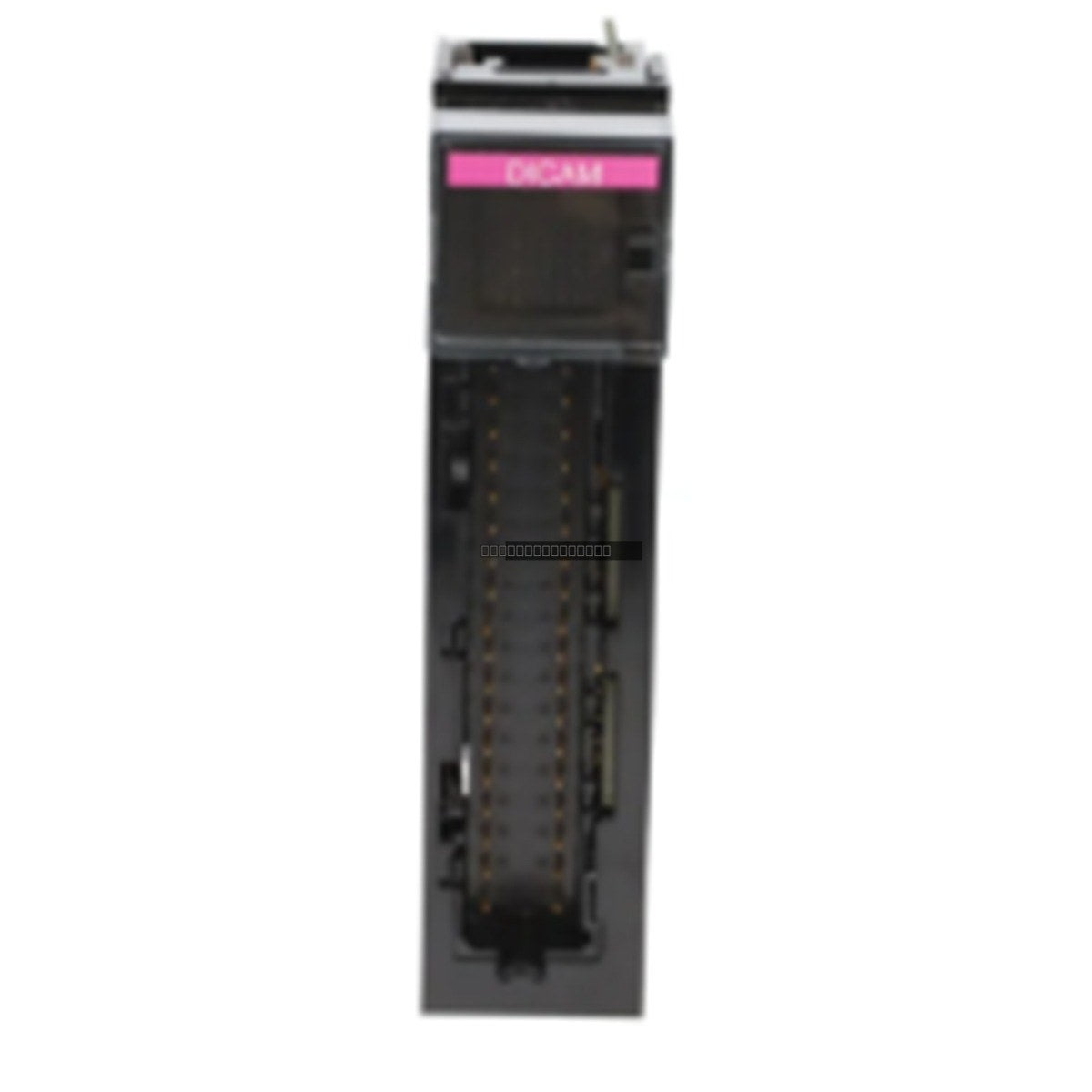

The Allen-Bradley 1756-DMA31 is a specialized ControlLogix module designed to facilitate high-speed communication between a ControlLogix controller and supported drive systems via the SynchLink fiber-optic interface. This single-axis drive interface module is engineered for precision motion control applications where synchronization and high-speed data transfer are critical to system performance.
Features
Single-axis drive interface capability.
Integrates seamlessly with the ControlLogix platform architecture.
Supports SynchLink fiber-optic communication for robust, noise-immune connectivity.
Designed for high-speed motion control coordination.
Compact module form factor for standard ControlLogix chassis mounting.
Technical Specifications
Product Model
1756-DMA31
Module Type
SynchLink Drive Interface
Current Draw
1.35 A at 5 VDC
SynchLink Data Rate
5 Mbps
Drive Communication Rate
10 Mbps
SynchLink Wavelength
650 nm
Installation Guidelines
Ensure the ControlLogix chassis power is removed before inserting or removing the module to prevent electrical damage.
Verify that the module is fully seated in the chassis slot and that the locking tabs are engaged.
Handle fiber-optic connections with care; ensure connectors are clean and free of debris to maintain optimal signal integrity.
Route fiber-optic cables away from high-voltage power lines to prevent potential interference and physical damage.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.
FAQ
What is the primary function of the 1756-DMA31? This module acts as a bridge, allowing the ControlLogix controller to communicate with drives over a SynchLink connection, enabling synchronized motion control across a production line.
Does this module require external power? The module draws its required power directly from the ControlLogix backplane. It consumes 1.35 A at 5 VDC.
