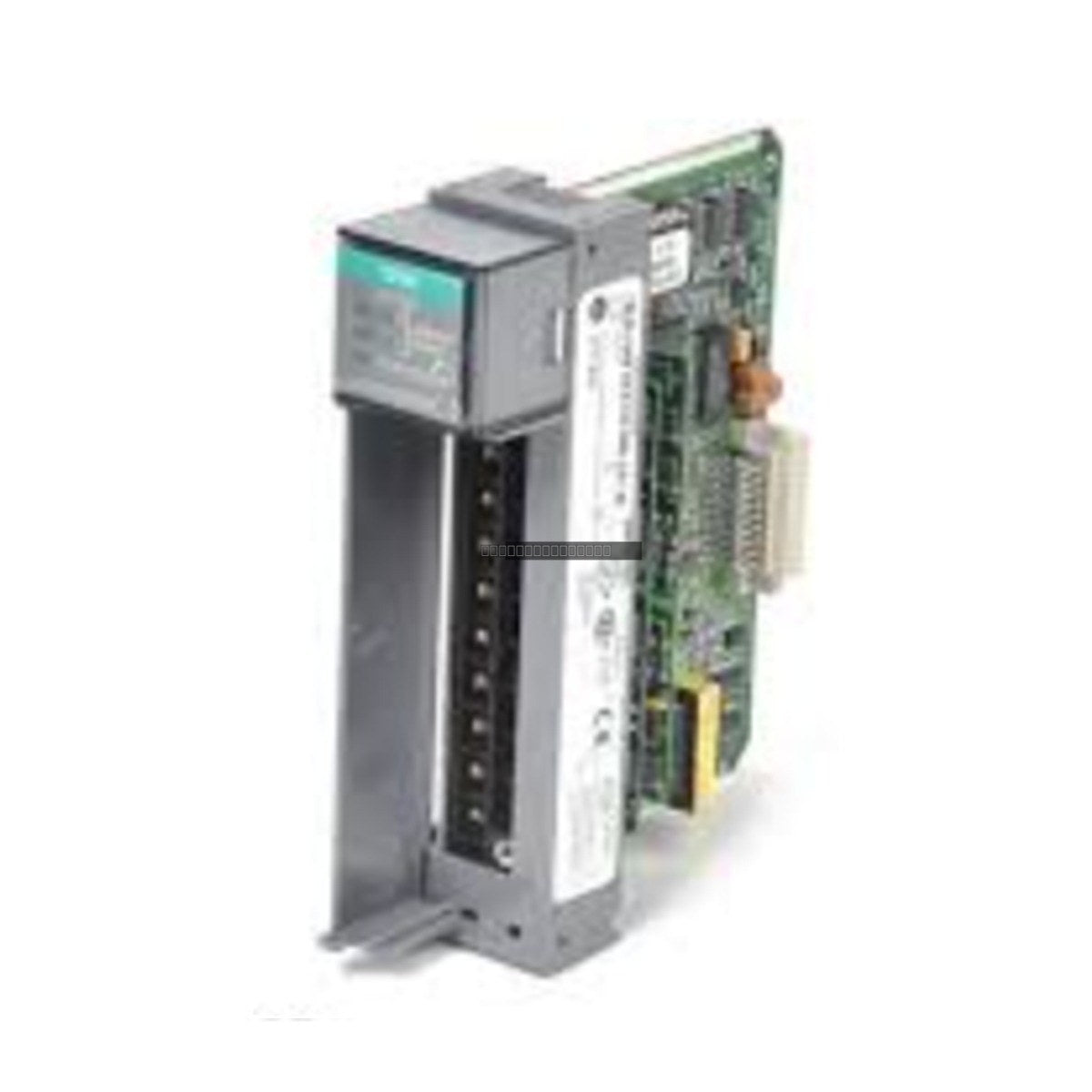

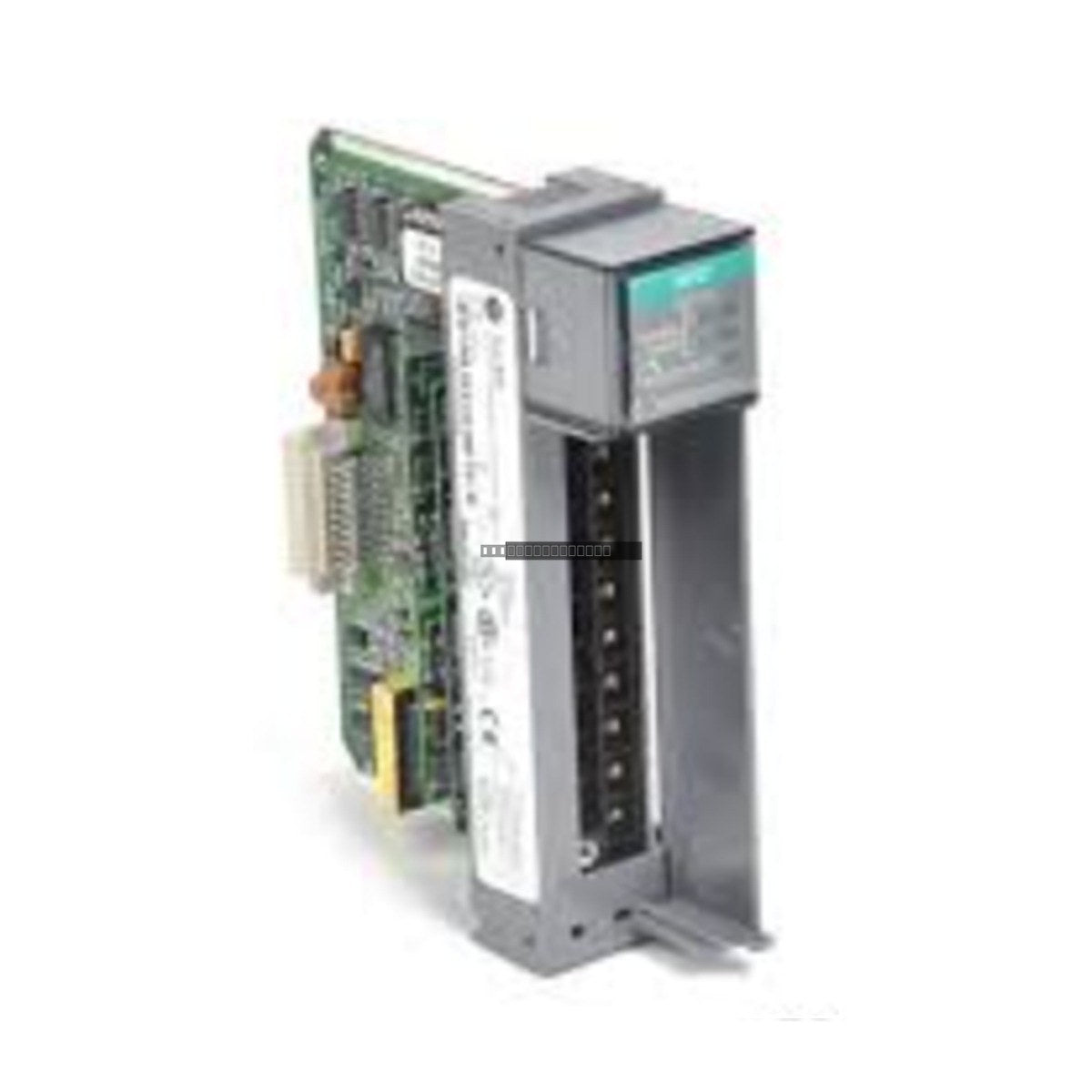

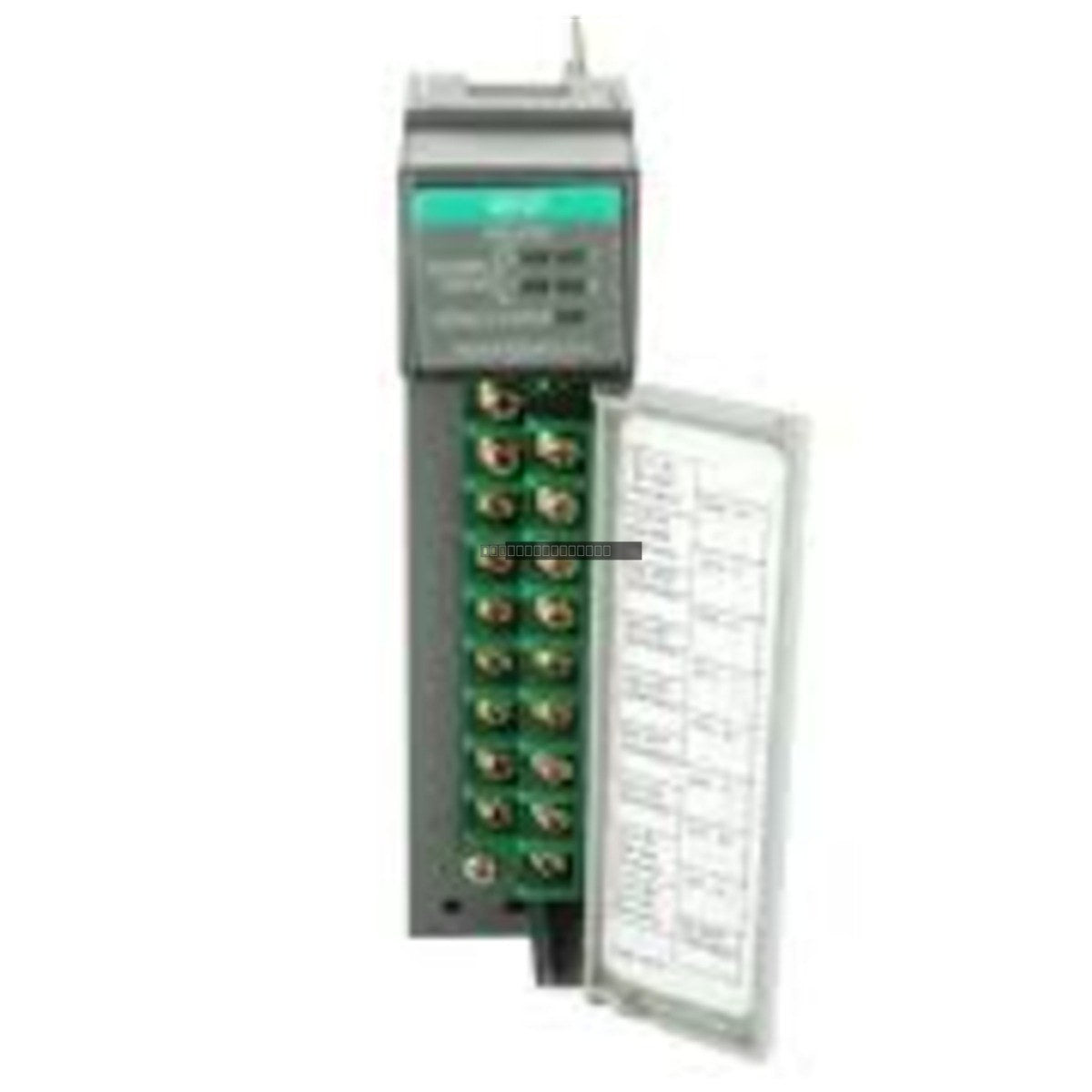

The Allen-Bradley 1746-HSCE2 is a specialized high-speed counter module designed for the SLC 500 programmable controller platform. This module provides advanced counting capabilities, allowing for precise tracking of high-frequency pulses in demanding industrial automation applications. It supports both single-ended and differential quadrature inputs, offering flexibility for various encoder and sensor configurations.
Features
Supports dual-channel high-speed counting with a maximum input frequency of 1 MHz.
Includes 4 physical outputs and 4 virtual outputs for versatile control logic integration.
Compatible with both 5VDC and 24VDC nominal input voltage levels to suit diverse field instrumentation.
Designed for seamless integration into the SLC 500 chassis environment.
Technical Specifications
Product Model
1746-HSCE2
Nominal Input Voltage
5VDC; 24VDC
Operating Voltage Range
4.2V to 12V DC; 10V to 30V DC
Maximum Input Frequency
1 MHz
Minimum Pulse Width
475 ns
Minimum Phase Separation
200 ns
Output Voltage Range
10-30 VDC
Physical Outputs
4
Virtual Outputs
4
Installation Guidelines
Ensure the SLC 500 system power is disconnected before installing or removing the 1746-HSCE2 module to prevent electrical damage.
Verify that the module is securely seated in the chassis slot and that the retaining screws are tightened to maintain proper electrical contact.
Use shielded cabling for all high-speed input signals to minimize electromagnetic interference (EMI) and signal noise.
Route signal cables away from high-voltage power lines and inductive loads to maintain signal integrity.
Follow standard ESD (electrostatic discharge) precautions when handling the module to protect internal components.
FAQ
What is the primary function of the 1746-HSCE2 module?
This module is a high-speed counter designed to interface with encoders and sensors, providing the SLC 500 processor with high-frequency pulse counting data for motion control, flow monitoring, or position feedback.
Can this module handle differential signals?
Yes, the 1746-HSCE2 supports both single-ended and differential quadrature inputs, providing robust signal handling for various industrial encoder types.
What is the maximum input frequency for this counter?
The module is capable of processing input frequencies up to 1 MHz, making it suitable for high-speed industrial processes.
