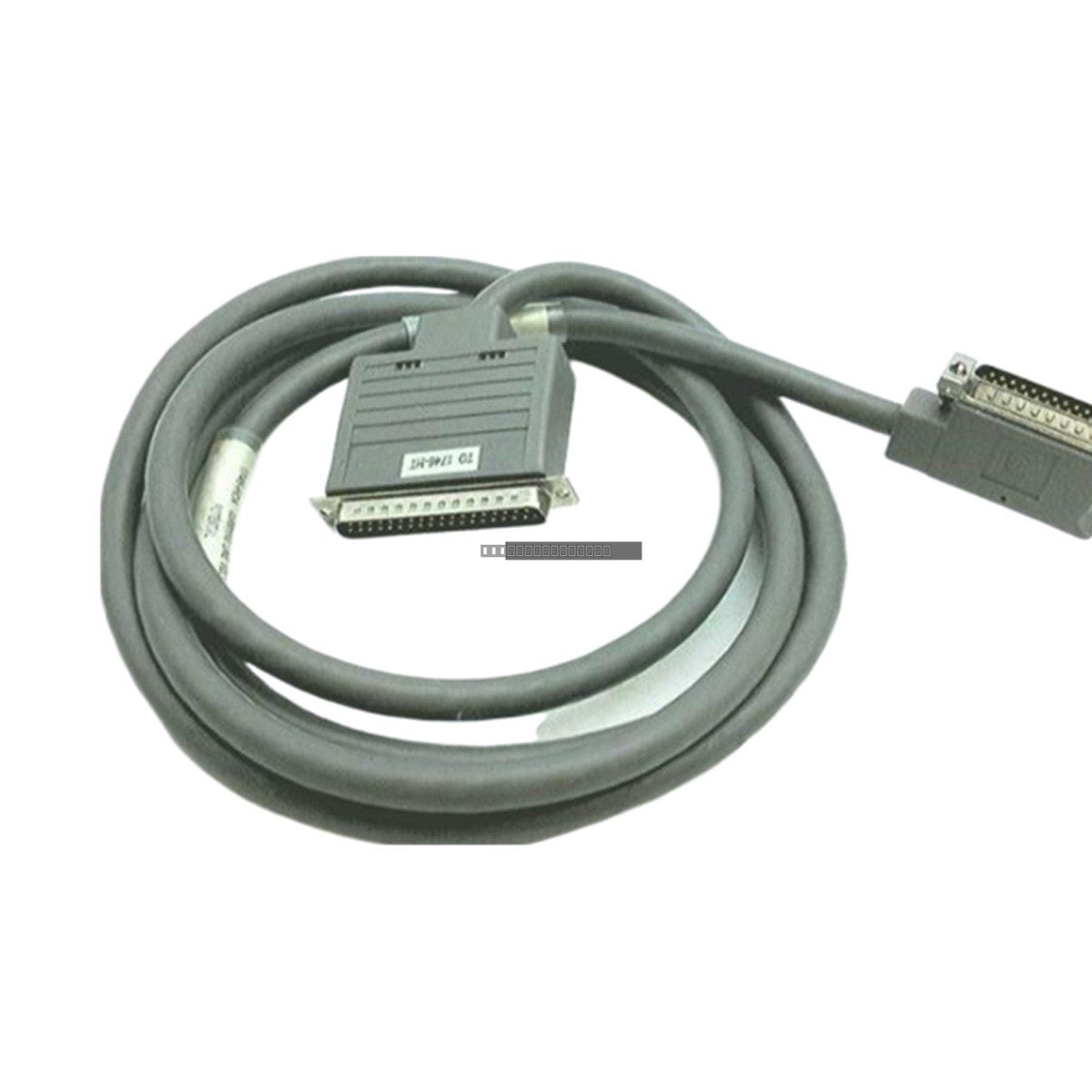

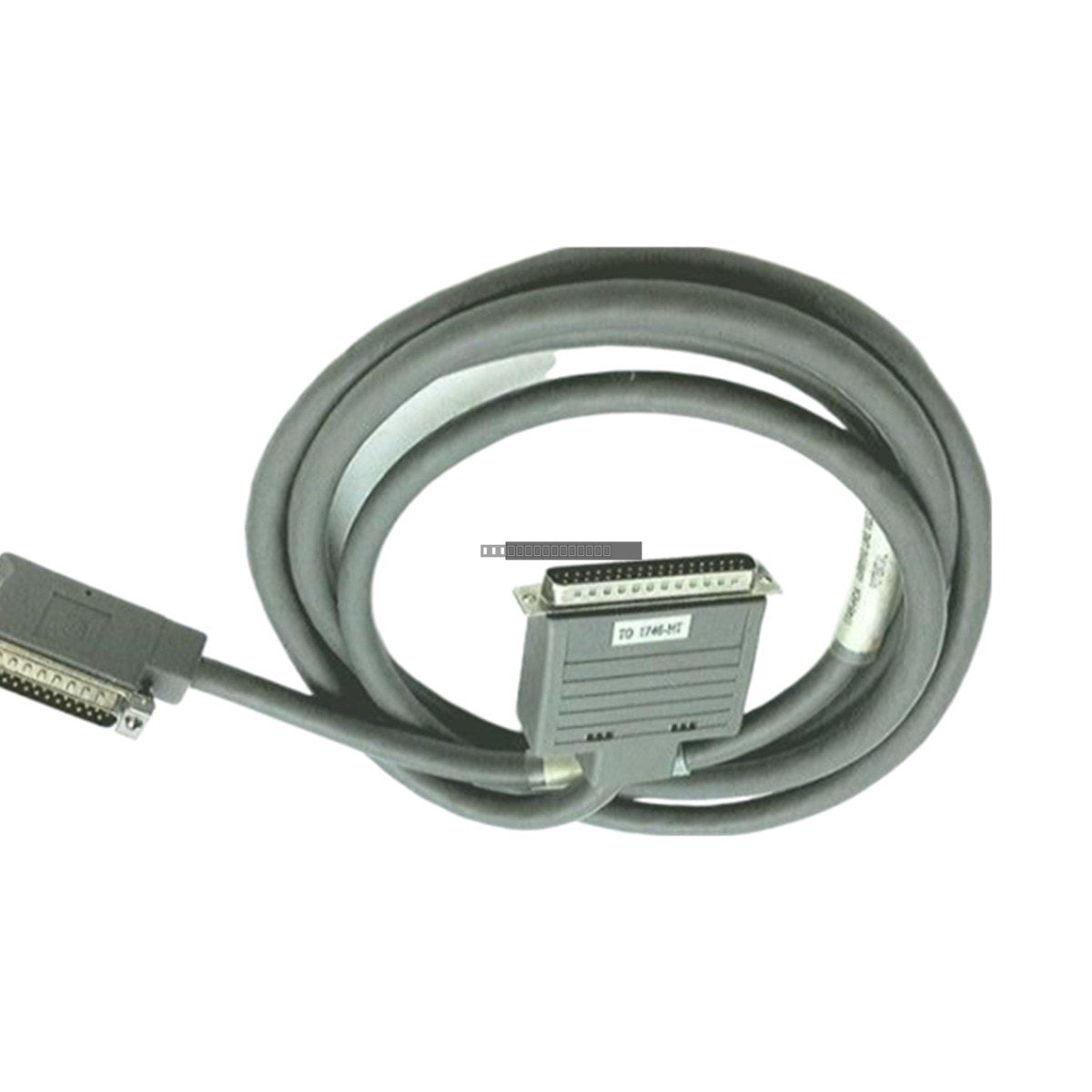

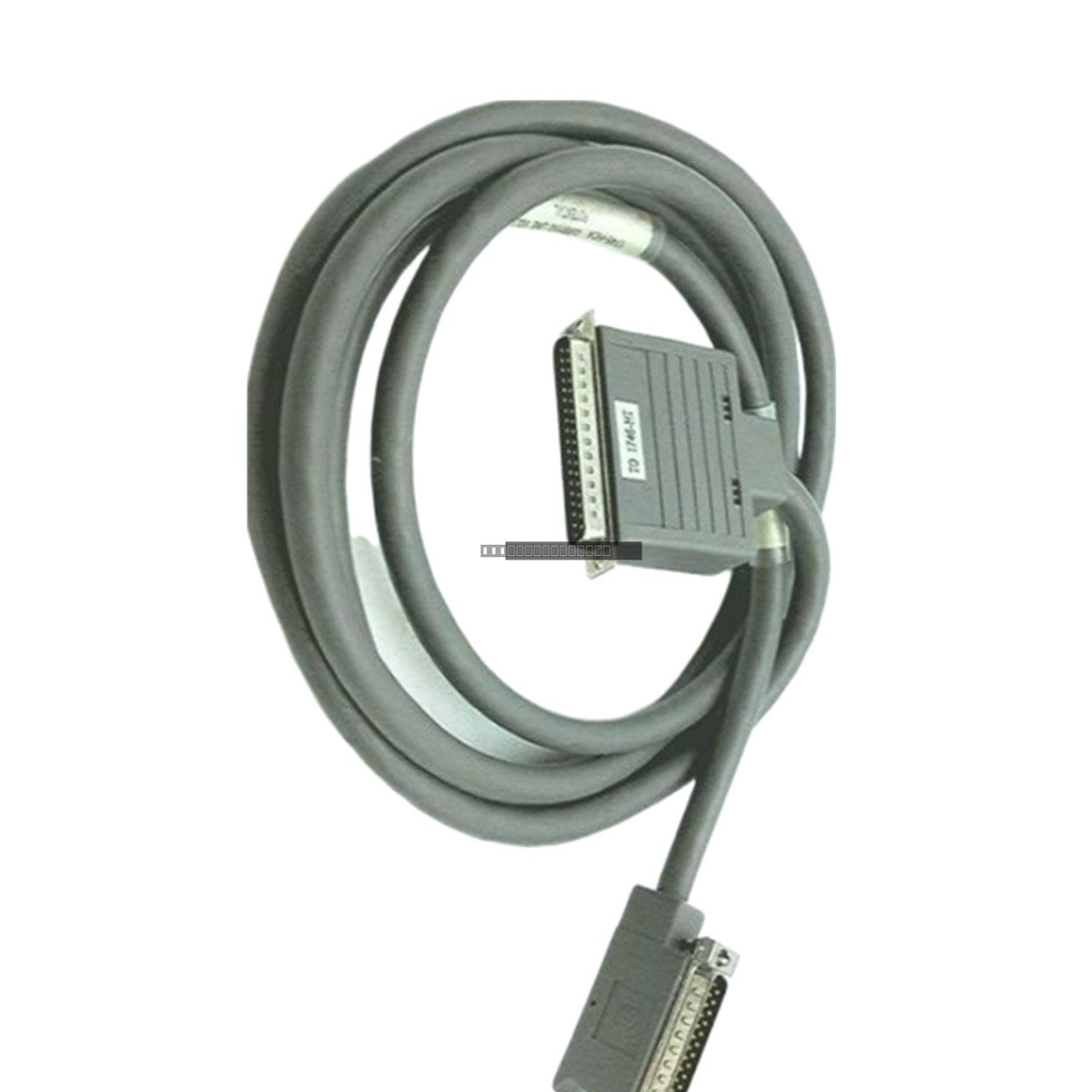

Allen-Bradley 1746-HCA Motion Control Interface Cable

Description

The Allen-Bradley 1746-HCA is a high-performance interface cable engineered for seamless integration within the SLC 500 motion control ecosystem. This cable serves as the critical physical link between 1746 series motion control modules—including high-speed counter and servo modules—and the 1746-HT termination panel. By ensuring reliable signal integrity for encoder feedback and command voltage transmission, it supports precise motion execution in industrial automation applications.

Features

• Designed specifically for SLC 500 motion control system compatibility.
• Integrated locking connectors at both ends to ensure a secure connection against vibration-induced loosening.
• Advanced shielding architecture to mitigate electromagnetic interference (EMI) risks common in proximity to servo drives and high-voltage cabling.
• Factory-terminated for consistent signal quality and reduced installation time.
• Keyed connector design to prevent improper orientation during assembly.

Applications

This cable is primarily utilized in motion-intensive industrial environments where high-speed signal accuracy is required. It is commonly deployed in packaging machines, material handling systems, and precision assembly lines where the SLC 500 rack must interface with external drive control hardware via the 1746-HT terminal block.

Technical Specifications

Installation Guidelines

• Ensure the PLC system power is disconnected before connecting or disconnecting the 1746-HCA cable to prevent electrical surges or module damage.
• Route the cable through dedicated low-voltage conduits, maintaining physical separation from AC power lines and high-current motor cables to reduce noise coupling.
• Verify that the locking mechanisms are fully engaged at both the module and the termination panel to prevent intermittent signals caused by vibration.
• Inspect the cable periodically for signs of jacket degradation or connector wear, especially in high-flex or high-temperature environments.

FAQ

What is the primary function of the 1746-HCA?
It acts as a dedicated interface cable to transmit encoder signals and command voltages between an SLC 500 motion module and a 1746-HT termination panel.

Can this cable be used with other SLC 500 modules?
The 1746-HCA is specifically designed for use with the 1746-HT termination panel and compatible motion control modules. Please consult your specific module documentation to confirm compatibility.

Is this cable shielded?
Yes, it is designed with industrial-grade shielding to protect sensitive high-speed signals from electromagnetic interference (EMI) typical in motion control cabinets.
