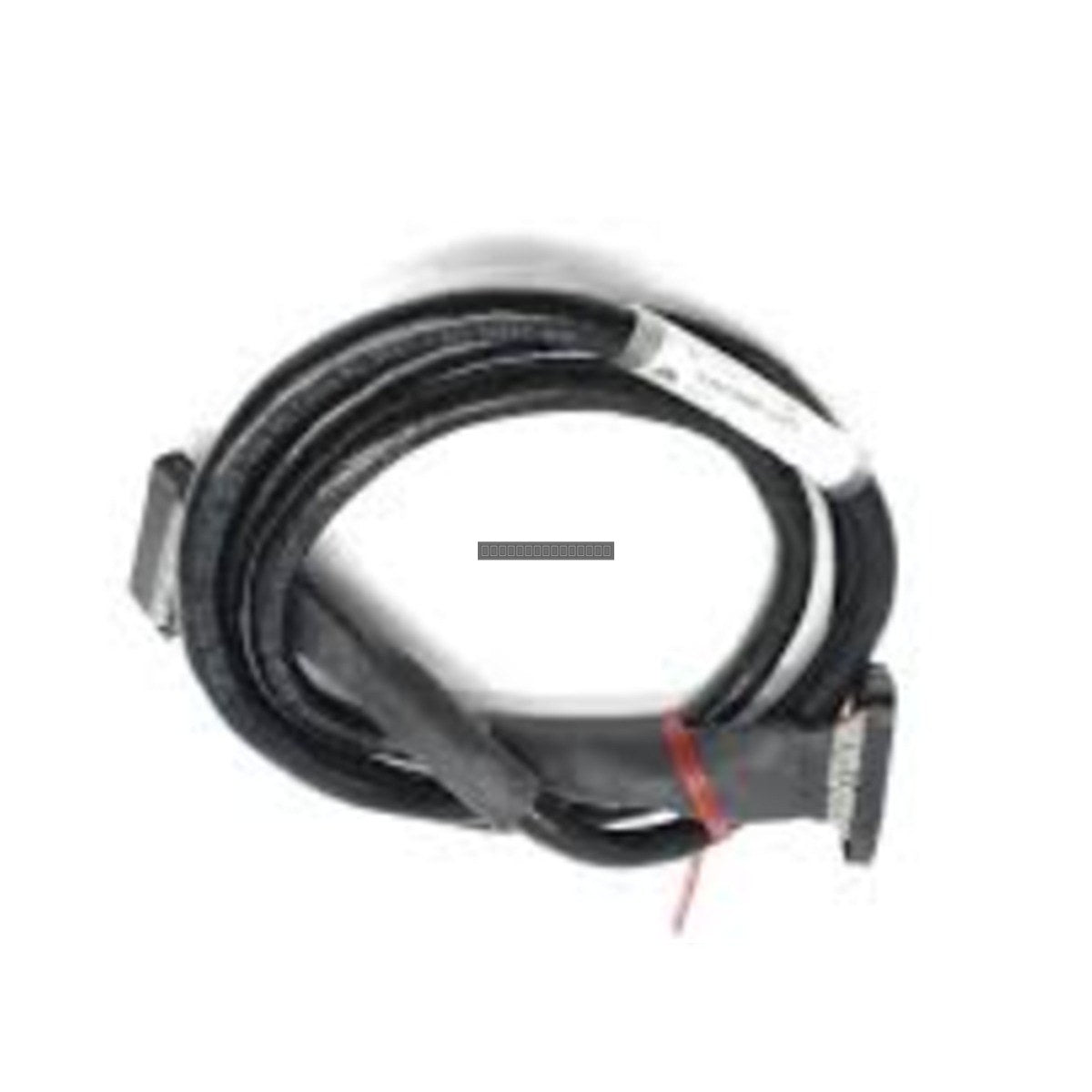

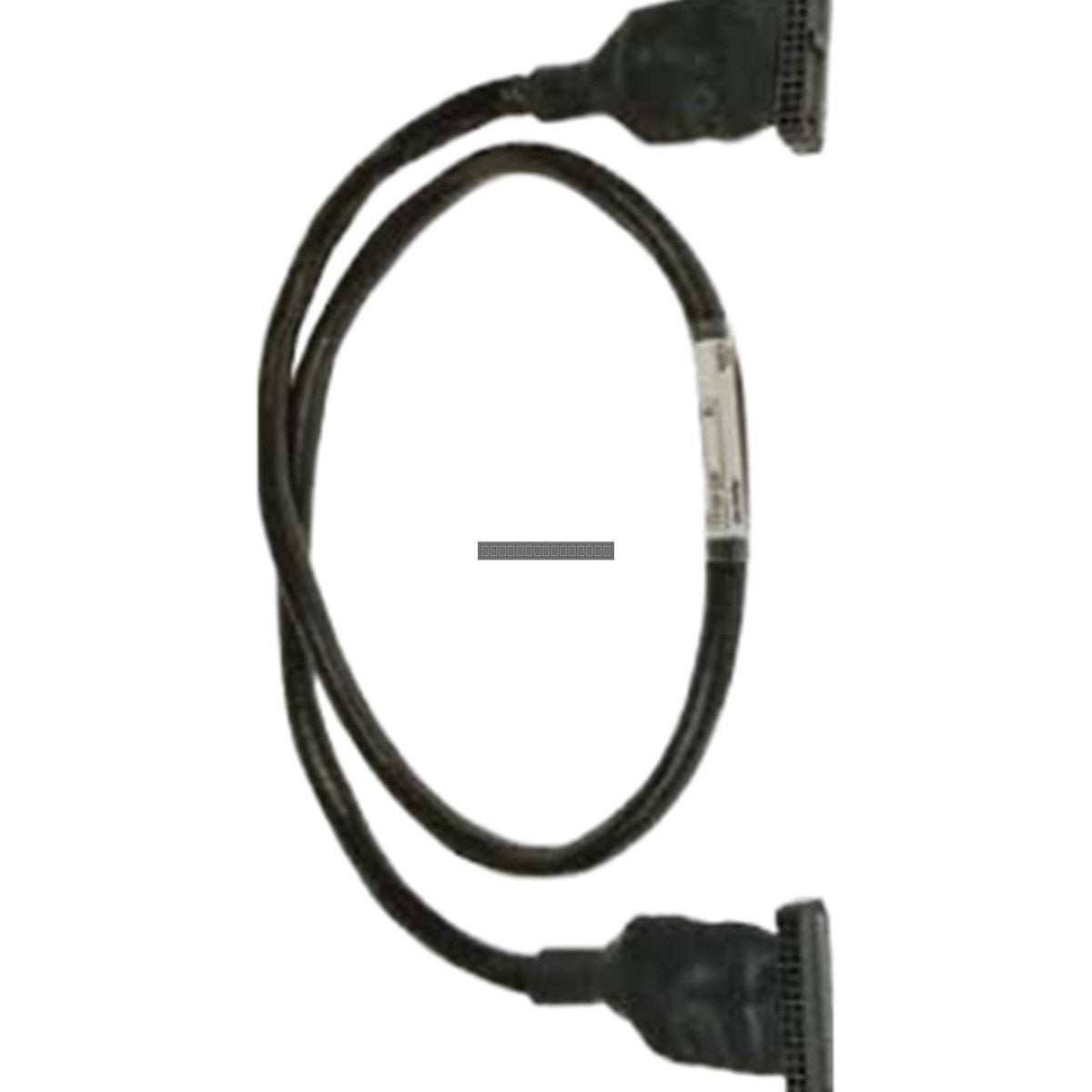

The Allen-Bradley 1746-C16 is a specialized ribbon cable designed for multi-chassis configurations within the SLC 500 modular control system. Measuring 1.22 meters (4 feet / 50 inches), this cable provides the necessary reach to connect a primary processor chassis to expansion chassis within the same industrial enclosure. It ensures reliable backplane communication, allowing the SLC 500 processor to manage I/O modules located in secondary racks.
Features
System Compatibility: Specifically designed for Allen-Bradley SLC 500 modular chassis systems.
Extended Reach: Longest available interconnect cable for the SLC 500 platform at 1.22 meters.
Keyed Connectors: Engineered with physical keys to ensure correct orientation and prevent improper backplane connection.
Applications
This cable is essential for expanding SLC 500 systems beyond a single rack. It is typically used in control cabinets where I/O requirements exceed the capacity of a single chassis, allowing for vertical or side-by-side expansion of the PLC architecture.
Technical Specifications
Brand
Allen-Bradley
Product Line
SLC 500
Hardware Type
Chassis Interconnect Cable
Cable Length
1.22 meters (50 inches / 4 feet)
Max Linked Chassis
3 total (including primary)
Bend Radius Clearance
101.6 mm (4 inches)
Operating Temperature
0 to 60 degC (32 to 140 degF)
Installation Guidelines
Power Status: Always ensure the system power supply is disconnected before installing or removing the interconnect cable.
Orientation: The connector with the key on the top must be inserted into the right-hand socket of the exit chassis. The connector with the key on the inside must be inserted into the left-hand socket of the expansion chassis.
Clearance: Ensure a minimum bend radius clearance of 101.6 mm (4 inches) to prevent cable damage and signal interference.
Sequence: It is recommended to route and connect the cable before installing power supplies to ensure sufficient physical space and clearance.
FAQ
Is the 1746-C16 compatible with all SLC 500 chassis?
Yes, the 1746-C16 is designed for use with standard SLC 500 modular chassis to facilitate multi-rack communication.
Can I use this cable to connect more than three chassis?
No, the SLC 500 system architecture typically supports a maximum of three total chassis (one primary and two expansion) when using these interconnect cables.
