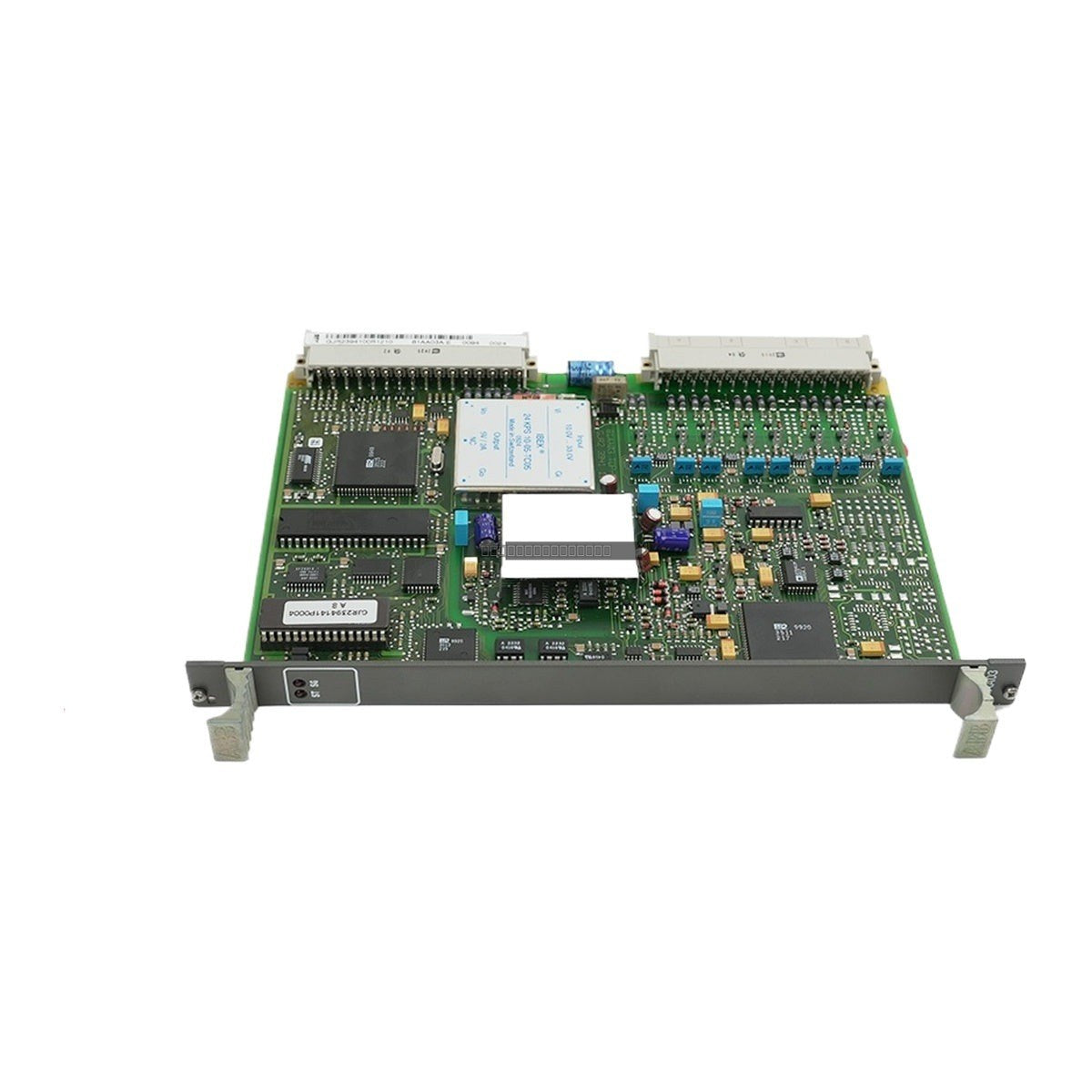

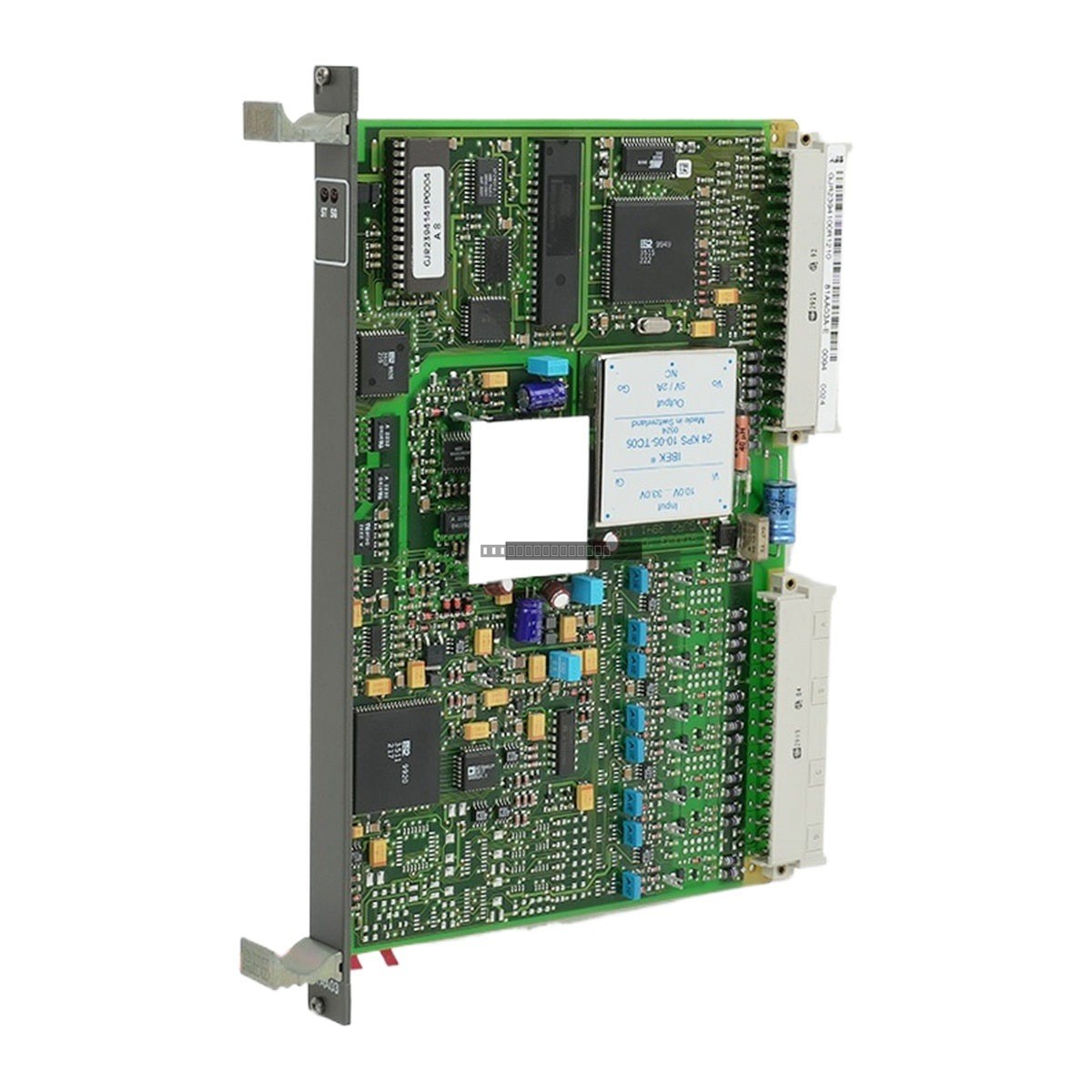

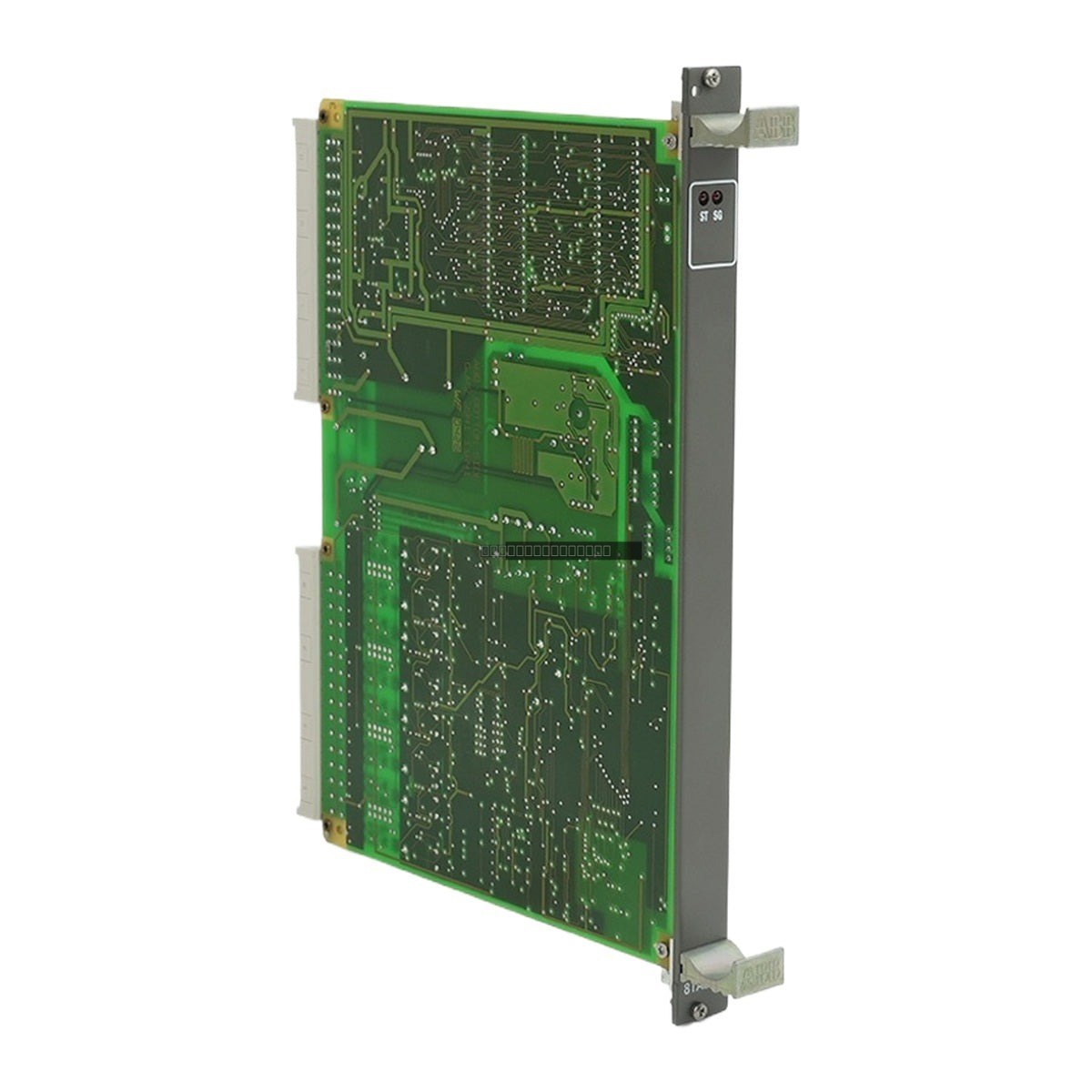

The ABB GJR2394100R1210 (81AA03A-E) is an 8-channel analog output module engineered for the Procontrol P14 distributed control system. This module serves as a critical interface for industrial automation, converting digital control commands from the station bus into precise analog current signals required for field device operation.
Features
8-channel analog output configuration
Compatible with Procontrol P14 system architecture
Selectable output ranges: 0 to 20 mA or 4 to 20 mA
Integrated channel-to-bus isolation for signal integrity
Designed for high-reliability industrial control applications
Applications
This module is typically deployed in large-scale industrial environments including power generation facilities, steel production plants, and chemical processing units. It is primarily used to drive field actuators, control valves, and other analog-controlled instrumentation requiring standard current loop signals.
Technical Specifications
Model
GJR2394100R1210 (81AA03A-E)
Channels
8
Output Range
0-20 mA / 4-20 mA
Logic Supply
24 V DC
Load Resistance
≤ 750 Ohm
Isolation
500 V DC (channel-to-bus)
Operating Temperature
-25 degC to +70 degC
Storage Temperature
-40 degC to +85 degC
Humidity
5-95% RH (non-condensing)
Installation Guidelines
Ensure the system power is completely disconnected before inserting or removing the module from the rack.
Verify that the module is correctly seated in the designated Procontrol P14 rack slot to ensure proper backplane connection.
Use shielded twisted-pair cabling for analog signal runs to minimize electromagnetic interference (EMI).
Maintain proper grounding practices for the control cabinet to prevent ground loops and signal noise.
Ensure adequate ventilation within the cabinet to maintain ambient temperatures within the specified -25 to +70 degC range.
Handle the module using ESD-safe procedures to prevent damage to internal electronic components.
FAQs
What is the primary function of the ABB 81AA03A-E?
The 81AA03A-E is an analog output module designed to convert digital signals from the Procontrol P14 station bus into 0-20 mA or 4-20 mA current signals for controlling field instrumentation.
How many channels does this module support?
This module features 8 independent analog output channels.
What is the required logic supply voltage?
The module operates on a 24 V DC logic supply.
Does this module provide electrical isolation?
Yes, the module provides 500 V DC isolation between the output channels and the system bus.
