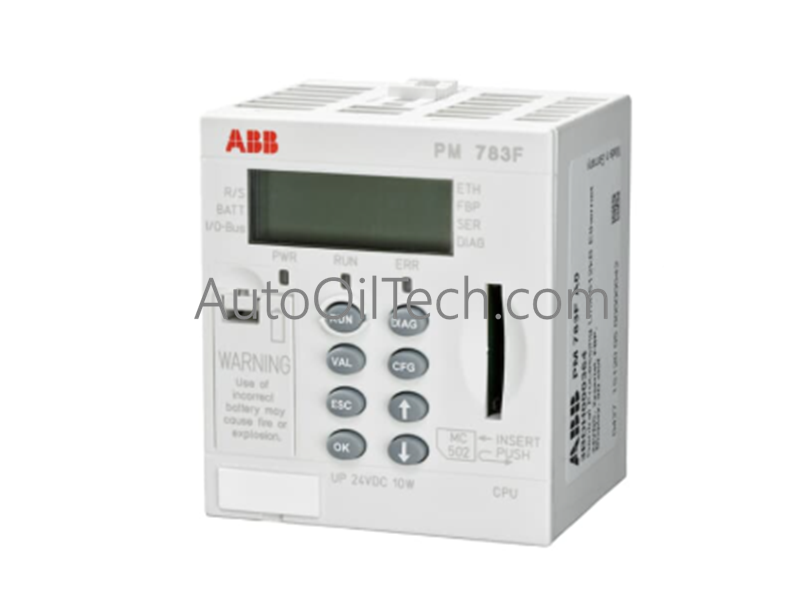

ABB PM 783F 3BDH000364R0005 CPU Processors

Configured for real-time task scheduling and deterministic process execution within modular automation frameworks, the ABB PM 783F (PM 783F Central Unit) provides direct physical/electrical execution. This 96 MHz hardware processor coordinates low-level automation logic across non-redundant system architectures under article number 3BDH000364R0005, executing up to 9 concurrent tasks while managing field data translation across localized logic layers.

Hardware Specifications

Industrial Control and Drives Dedicated I/O Density Scaling

The PM 783F manages deterministic execution matrices and network data packet routing directly over the system's distribution backplane. To resolve Boolean operations within a stable 0.71 ms window per 1000 instructions without process lag, the internal PowerQUICC processor core optimizes backplane bus communication velocity across adjacent terminal slots. This accelerated parsing loop suppresses clock jitter and prevents frame collision during simultaneous Ethernet polling cycles, directly supporting localized timing accuracy and expanding modular I/O density scaling options across compact subrack configurations. Because the assembly synchronizes its data registers into a structured memory map, the hardware maintains absolute firmware flash compatibility with upstream engineering hosts, ensuring that compiled logic structures, communication protocols, and clock synchronization variables download over the bus lines without causing signal transit noise or communication timeouts.

Frequently Asked Questions

Q: How does the memory allocation on the PM 783F affect complex application logic?

A: The module contains 10 MB of total physical memory, with 2 MB of dedicated RAM isolated specifically for user application tasks. Large configuration trees or nested function blocks must fit within this 2 MB window to maintain stable runtime cycles and prevent backplane bus communication velocity degradation.

Q: What critical step must be executed during power-loss events to prevent the erasure of non-volatile variables?

A: The board relies on a TA 521F lithium battery to sustain application registers when the 24 V DC input drops out. This cell must be monitored and replaced during scheduled shutdown intervals to prevent data truncation faults when logic-rail power is re-applied.
