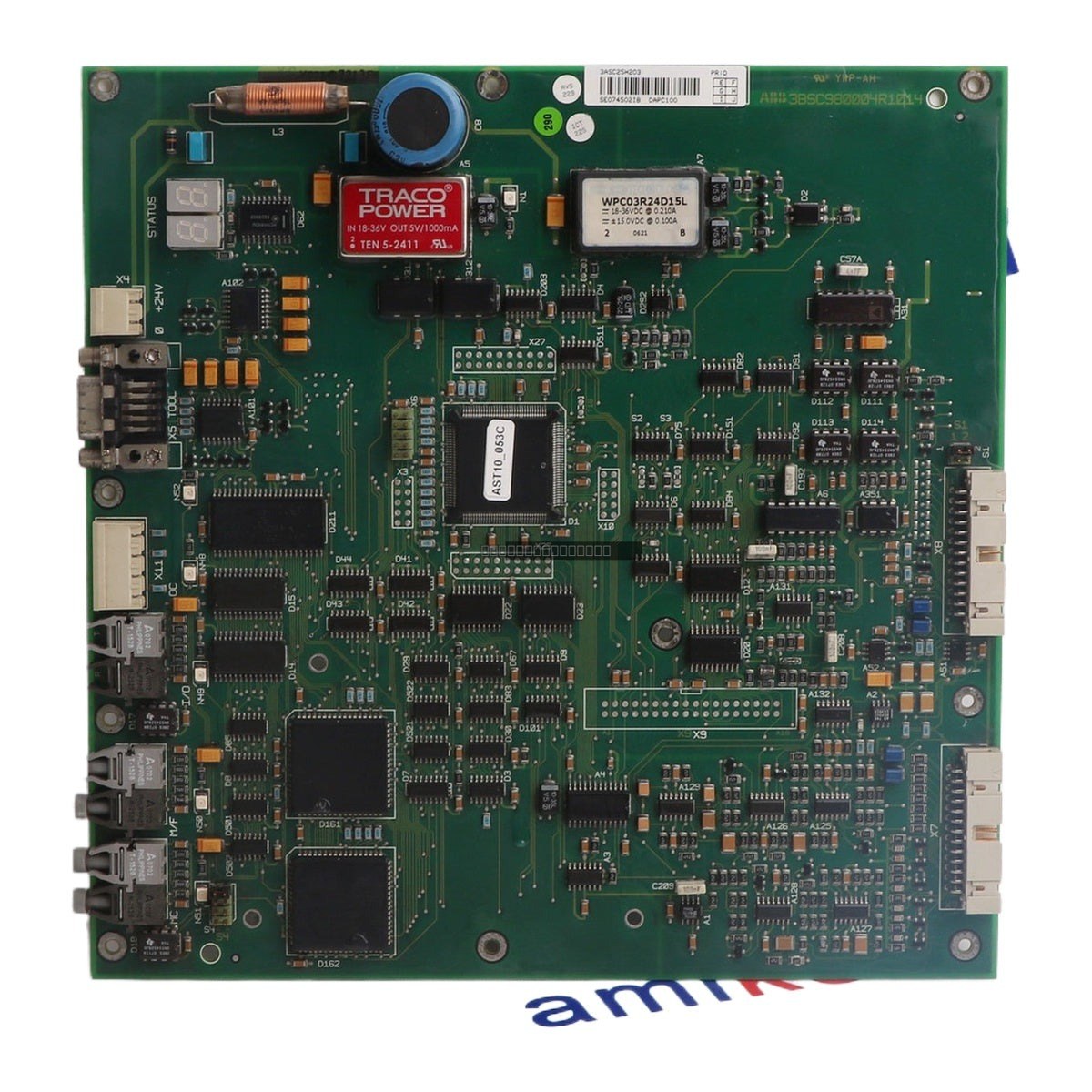

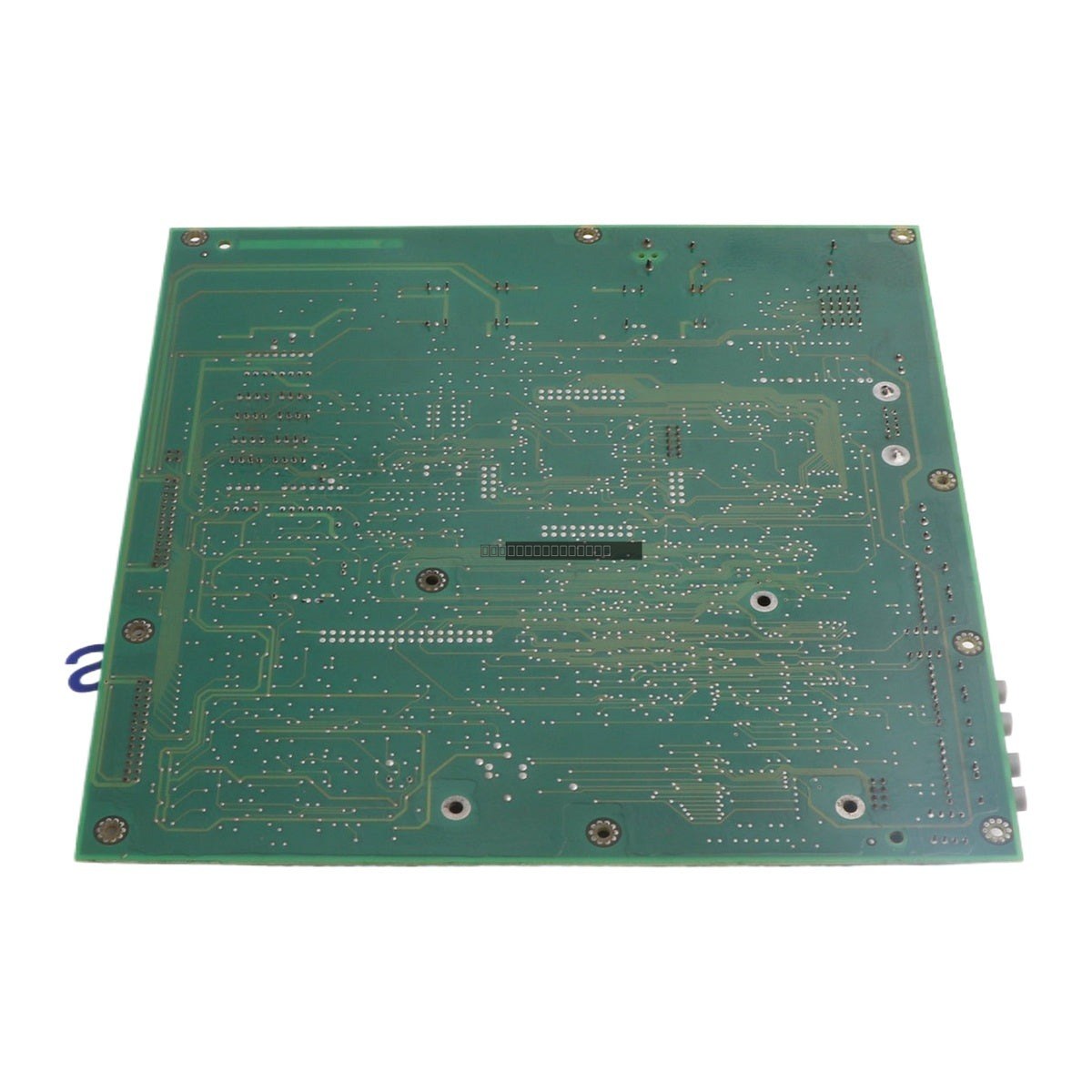

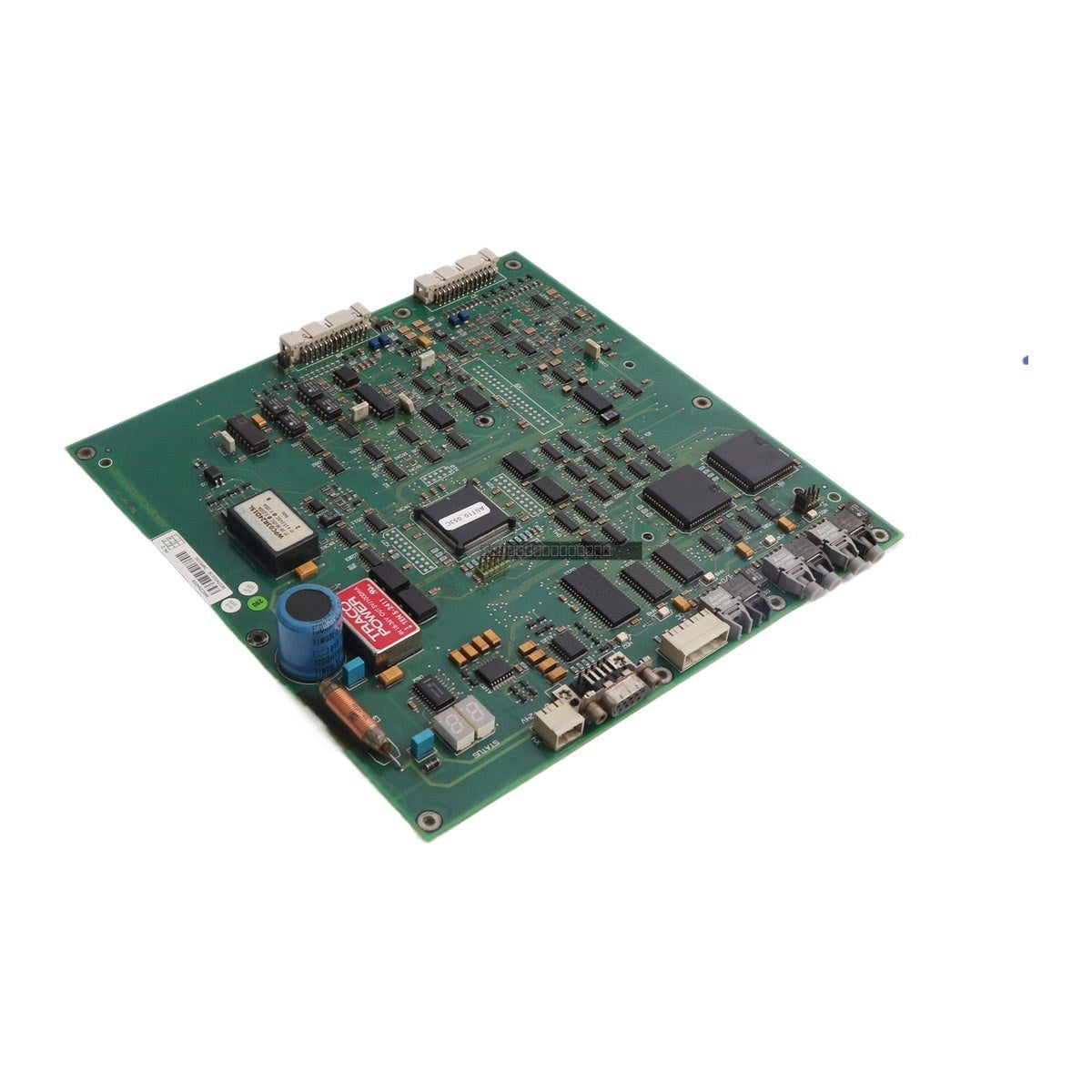

The ABB DAPC100 (Order Code: 3ASC25H203) is a high-performance control board designed for industrial automation and control systems. This module is supplied complete with a CMT memory stick, providing the necessary firmware and configuration storage required for operation within ABB control environments. It serves as a critical component for system logic processing and data management in demanding industrial applications.
Features
Integrated CMT memory stick for reliable data storage and firmware management.
Designed for robust performance in industrial control architectures.
Standardized 24 V DC power supply requirement.
Wide operating temperature range suitable for controlled industrial environments.
High-density industrial flash memory for consistent operation.
Technical Specifications
Product Model
DAPC100 3ASC25H203
Supply Voltage
24 V DC
Isolation
500 V DC
Memory
8 GB industrial Flash
Operating Temperature
0 degC to +55 degC
Storage Temperature
-40 degC to +85 degC
Relative Humidity
5% to 95% RH (non-condensing)
Weight
0.34 kg
Installation Guidelines
Ensure the control system is powered down before installing or removing the DAPC100 board to prevent electrical damage.
Handle the module using ESD-safe practices to protect sensitive internal components.
Verify that the power supply voltage is stable at 24 V DC before connection.
Ensure proper ventilation in the cabinet to maintain operating temperatures within the specified 0 degC to +55 degC range.
Route signal and power cables away from high-EMI sources to maintain signal integrity.
FAQ
What is included with the DAPC100 3ASC25H203?
This unit is supplied as a control board assembly, which includes the CMT memory stick required for its operational configuration.
What are the power requirements for this board?
The DAPC100 operates on a 24 V DC power supply. Please ensure your system power distribution meets this specification before installation.
Is this module suitable for high-humidity environments?
The module is rated for 5% to 95% relative humidity, provided it is non-condensing. Ensure the enclosure is properly sealed if installed in environments prone to condensation.
