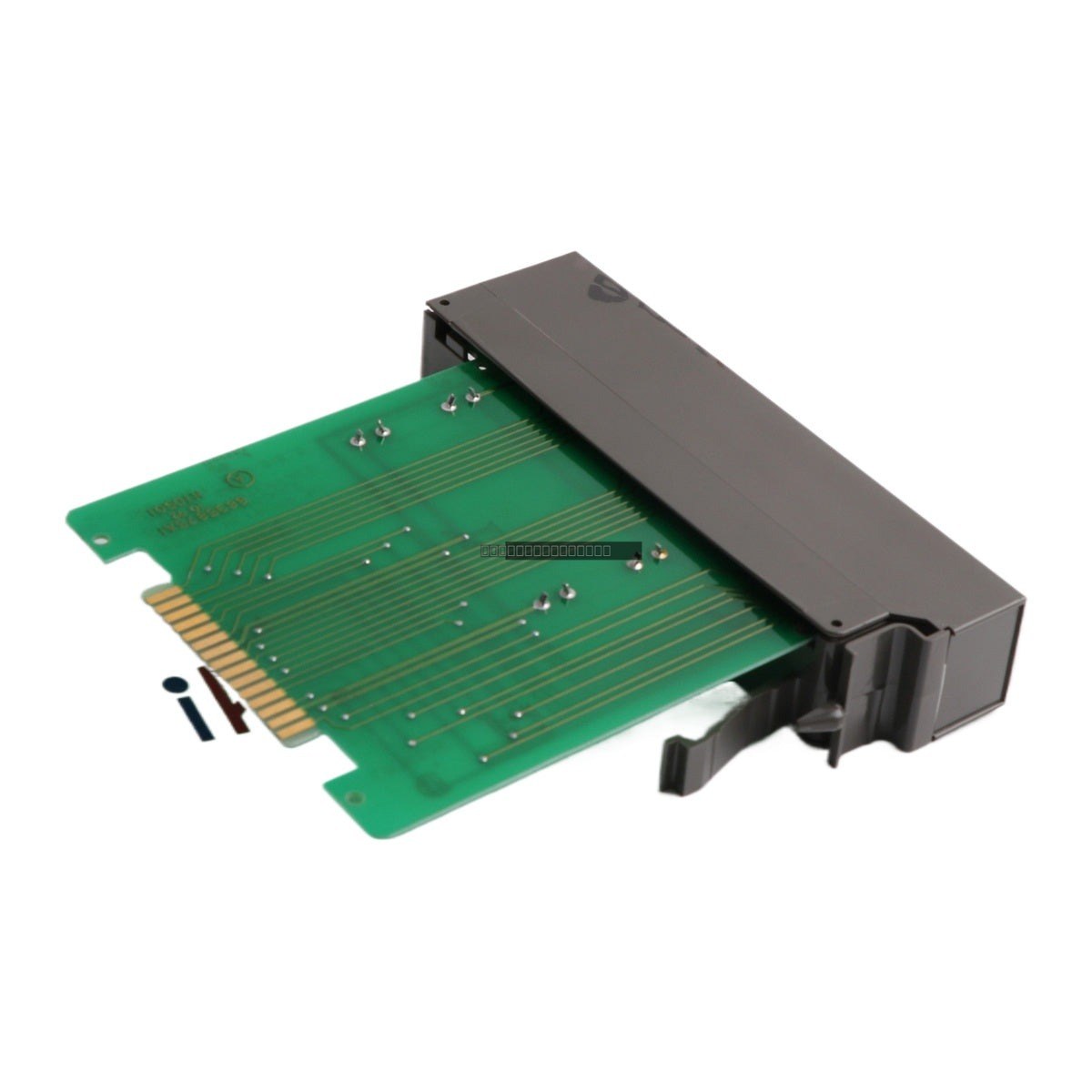

The ABB Bailey NIDS01 is a Digital Station Interface Module designed for the INFI 90 distributed control system. This module serves as a critical termination component, facilitating the reliable connection and signal processing of digital points within the control network. It is engineered to provide robust interface capabilities for digital station operations in industrial automation environments.
Features
Designed specifically for integration within the Bailey INFI 90 control architecture.
Supports high-density digital point connectivity for station monitoring and control.
Provides galvanic isolation to protect sensitive control circuitry from field-side electrical disturbances.
Optimized for low power consumption while maintaining high operational reliability.
Wide operating temperature range suitable for demanding industrial facility conditions.
Technical Specifications
Product Model
NIDS01
Function
Digital Station Interface / Termination Module
Power Supply
24 V DC
Power Consumption
3-8 W (typical)
Isolation
1500 V AC
Digital Channels
16-32 points
Operating Temperature
-20 degC to +70 degC
Storage Temperature
-40 degC to +85 degC
Humidity
5-95% RH (non-condensing)
Installation Guidelines
Ensure the control system power is fully disconnected before installing or removing the NIDS01 module to prevent electrical damage.
Mount the module in a clean, dry, and vibration-free environment, ensuring adequate airflow for heat dissipation.
Verify that all field wiring is securely terminated and properly shielded to minimize electromagnetic interference (EMI).
Adhere to standard ESD (Electrostatic Discharge) handling procedures when touching the module components.
Confirm that the 24 V DC power supply is stable and within the specified operating limits before system startup.
FAQ
What is the primary function of the NIDS01 module?
The NIDS01 is a Digital Station Interface/Termination module used within the ABB Bailey INFI 90 system to manage and interface digital signal points between field devices and the control system.
Is this module compatible with other control systems?
The NIDS01 is specifically engineered for the Bailey INFI 90 series. It is not intended for use in non-compatible control architectures.
