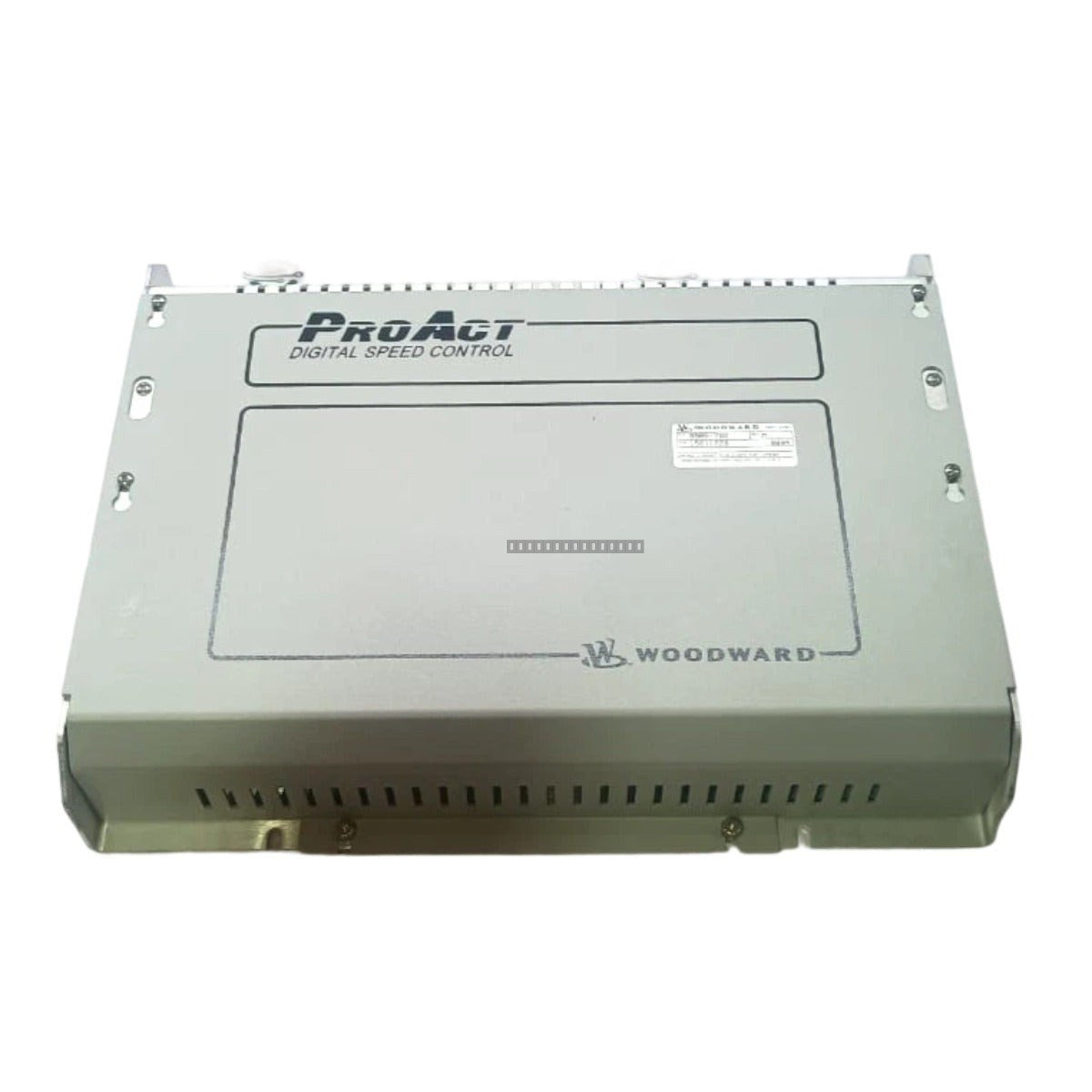

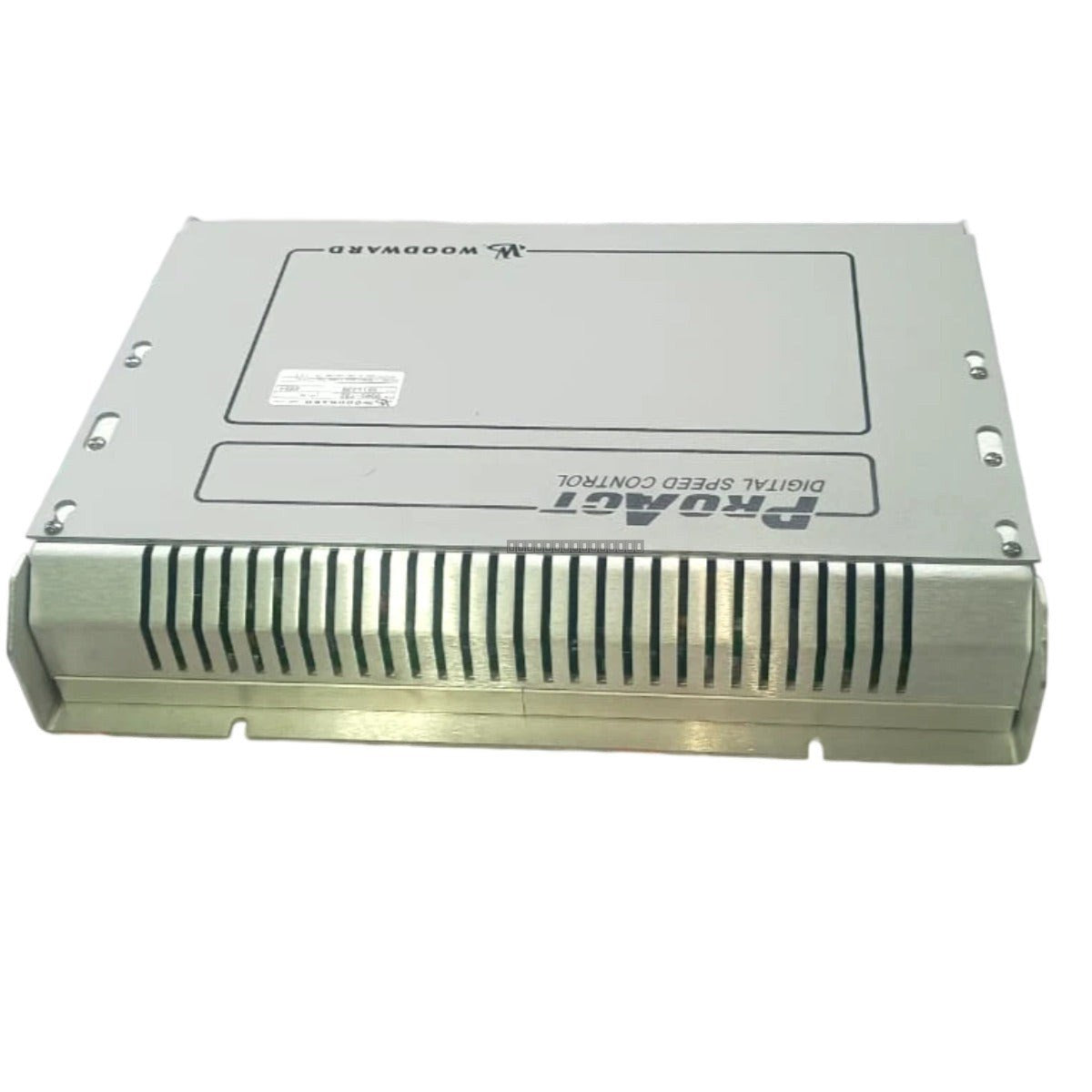

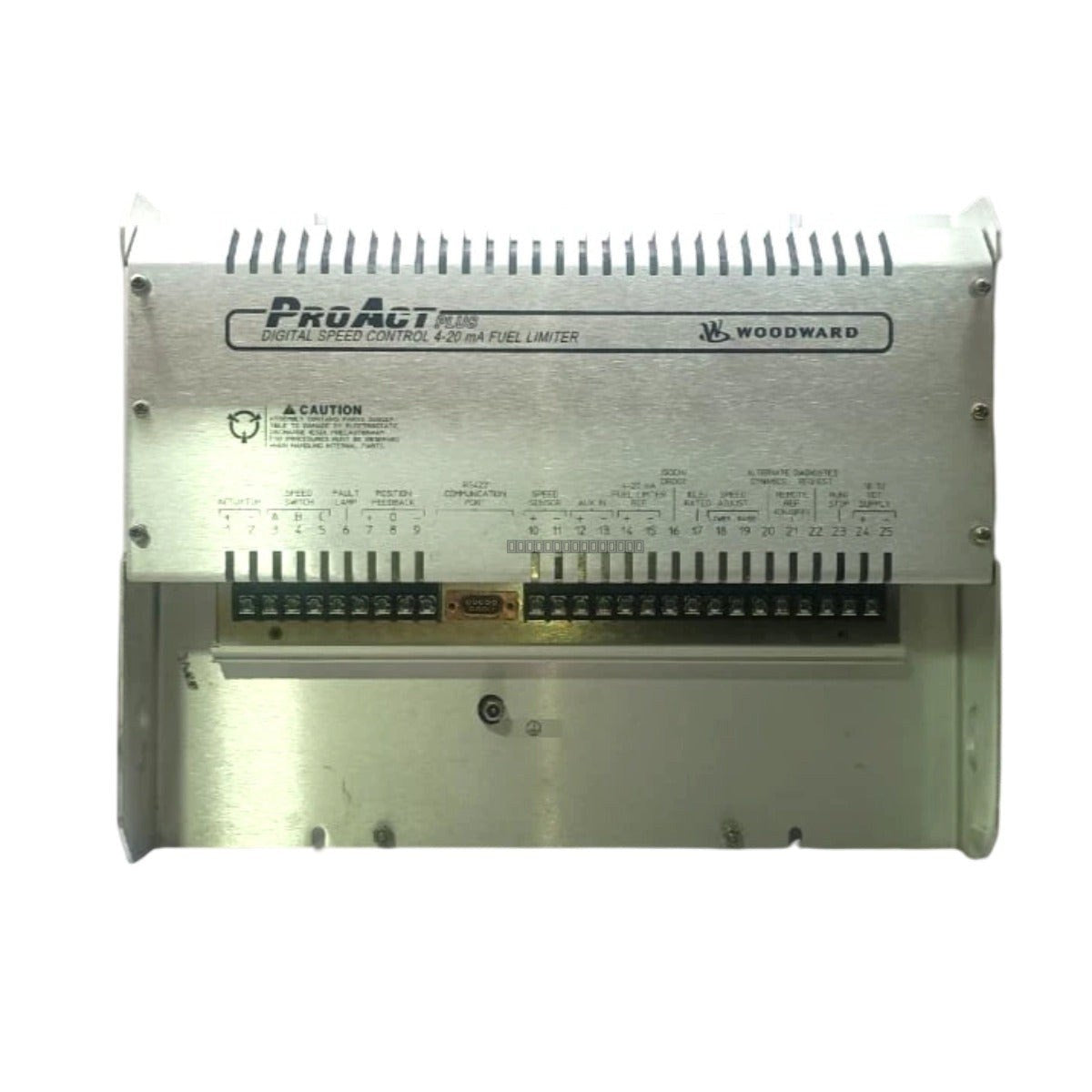

The Woodward 9905-792 is a high-precision digital speed governor engineered for the rigorous regulation of engine and turbine prime movers. This module provides critical control over actuator outputs to maintain stable rotational velocity under varying load conditions. Primarily utilized in power generation plants, marine propulsion, and heavy industrial pumping stations, the 9905-792 ensures optimal combustion and mechanical efficiency. By delivering millisecond-level response times and robust fault monitoring, the unit plays a decisive role in preventing overspeed conditions and minimizing unscheduled system downtime in mission-critical infrastructures.
Features
Microprocessor-based logic for programmable PID control and multiple speed setpoints.
Ruggedized IP65-rated enclosure suitable for high-vibration and thermal-cycling environments.
Integrated Modbus communication via RS-232 or RS-485 interfaces for DCS integration.
Real-time data logging and field-level diagnostics for actuator current and engine RPM monitoring.
High-speed response for precise prime mover regulation.
Applications
The 9905-792 is designed for industrial applications requiring precise speed management, including:
Power generation and standby generator sets.
Marine propulsion control systems.
Heavy-duty industrial pumping and compression stations.
Prime mover synchronization and load sharing.
Technical Specifications
Model
9905-792
Brand
Woodward
Input Voltage
24 VDC nominal
Output Signal
0-200 mA current to actuator
Speed Range
500-5000 RPM (Programmable)
Communication
RS-232 / RS-485 (Modbus)
Operating Temperature
-40 to +85 deg C
Installation Guidelines
Ensure the module is mounted in an area protected from direct moisture ingress, despite the IP65 rating, to maximize service life.
Maintain proper grounding practices to prevent EMI interference with the RS-232/RS-485 communication lines.
Use shielded twisted-pair cabling for serial communication to ensure data integrity in high-noise industrial environments.
Verify that the 24 VDC power supply is stable and properly fused before energizing the unit.
Power down the system before connecting or disconnecting the actuator output or communication cables to prevent electrical arcing or damage to the internal circuitry.
FAQ
What is the primary function of the 9905-792?
The 9905-792 acts as a digital governor, controlling the fuel or steam actuator of a prime mover to maintain a constant, stable rotational speed regardless of the mechanical load applied.
Can this module communicate with a PLC or DCS?
Yes, the module supports Modbus protocol over RS-232 or RS-485 serial interfaces, allowing it to be integrated into larger distributed control systems for remote monitoring and setpoint adjustment.
