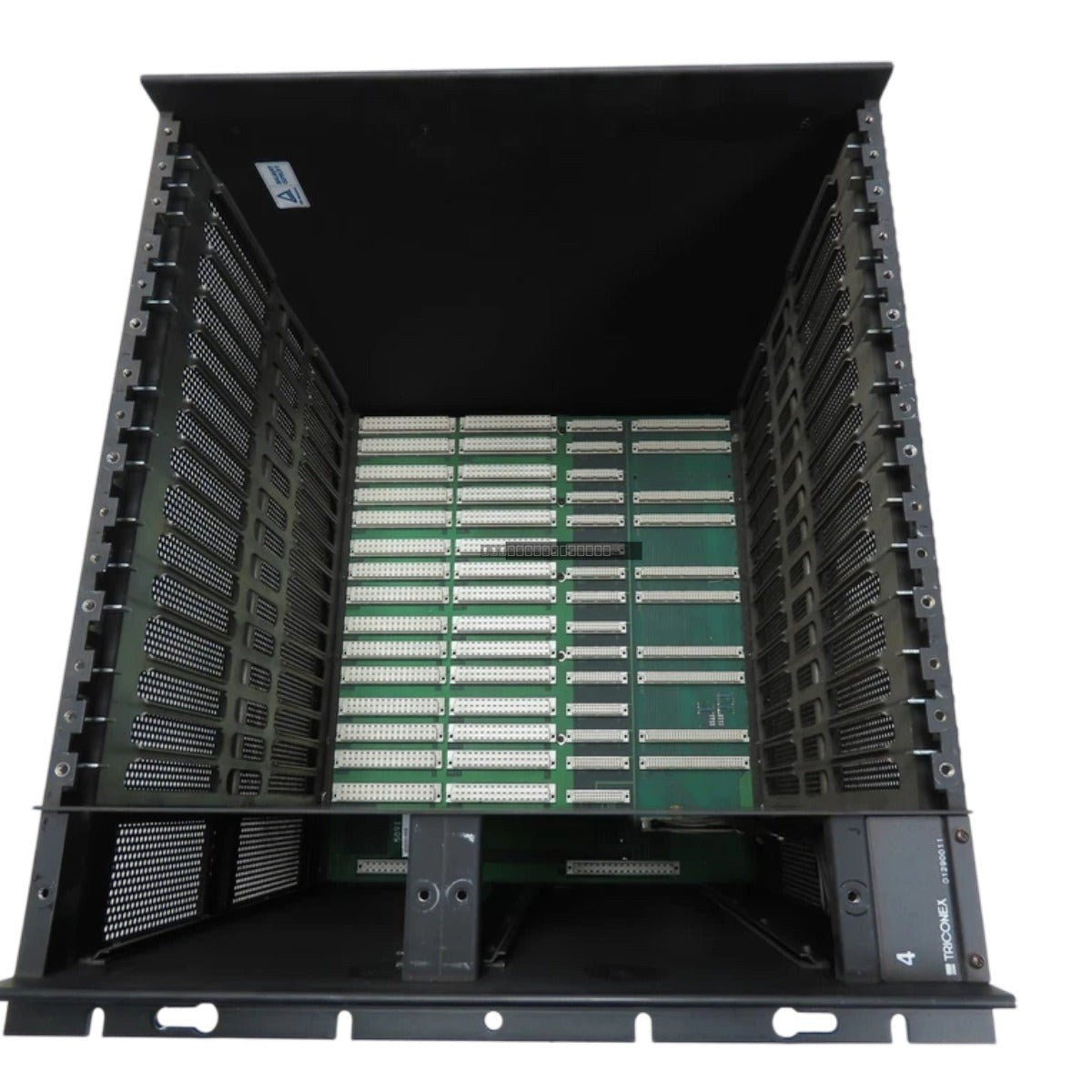

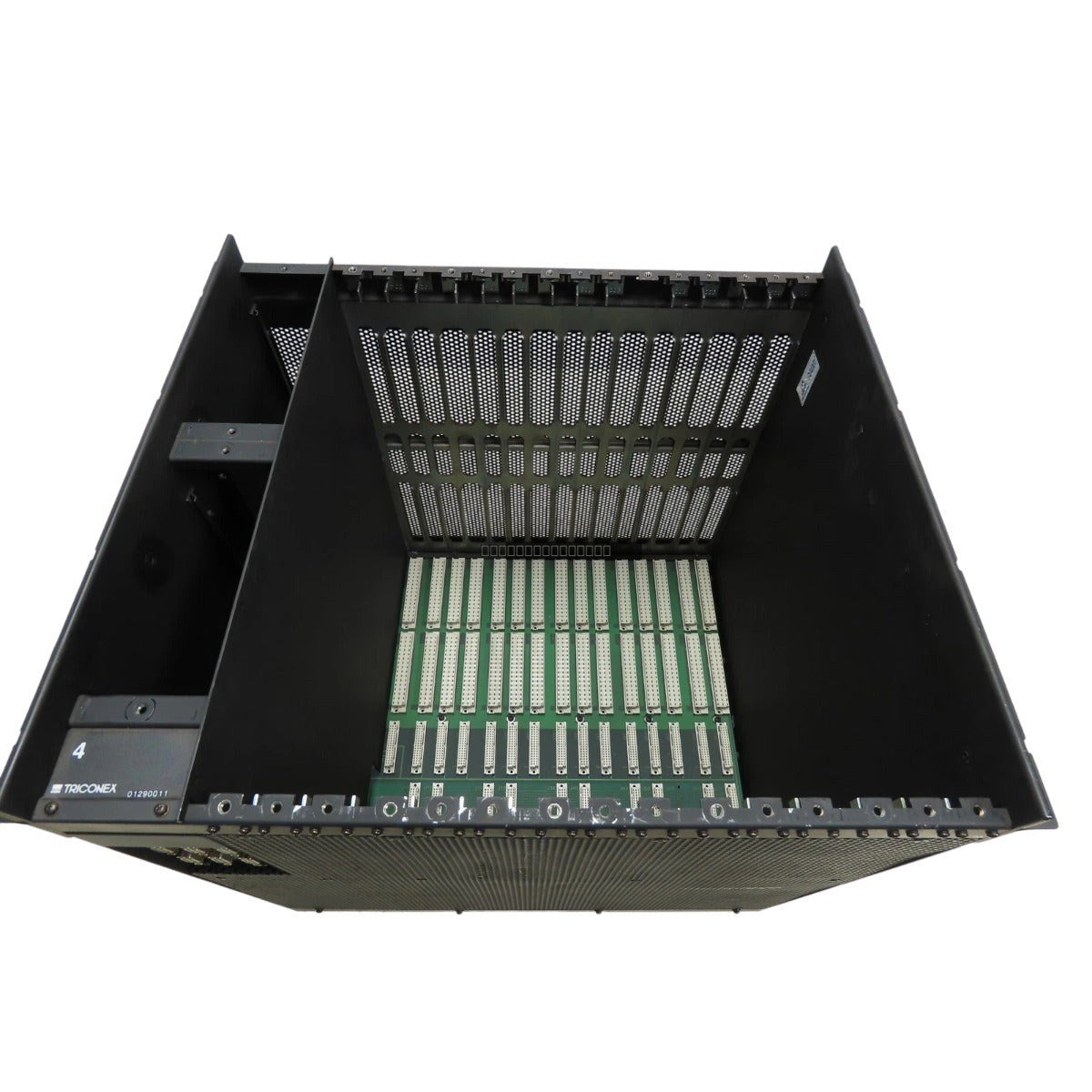

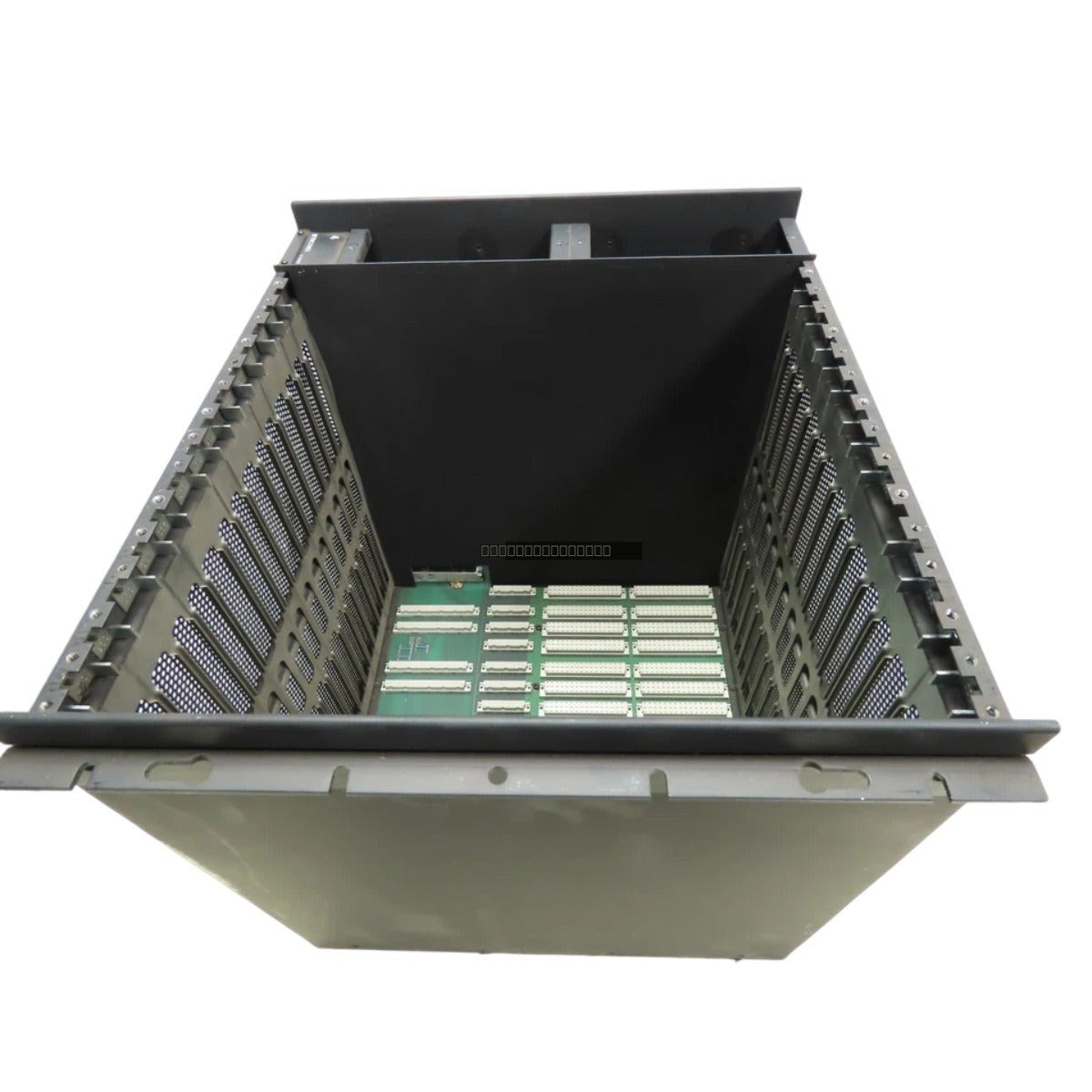

The Triconex 7400028-100, also designated as Model 8101, is a robust 15-slot expansion chassis engineered for integration within Triconex Triple Modular Redundancy (TMR) safety systems. This industrial rack provides the necessary physical and electrical infrastructure to expand I/O capacity in demanding environments, including power generation, petrochemical processing, and oil refining. By supporting redundant configurations, this chassis helps maintain high system availability and operational safety.
Features
15-slot capacity for high-density I/O module deployment.
Supports hot-swapping of modules, enabling maintenance without system shutdown.
Passive backplane design to enhance reliability and increase MTBF.
Dual-power rail distribution for support of redundant power supply modules.
Keyed slots to prevent incorrect module installation.
Optimized for high-speed communication with the Main Processor via the I/O expansion bus.
Applications
This expansion chassis is suited for safety-critical applications requiring high-speed data acquisition and redundant control. It is commonly utilized in emergency shutdown systems (ESD), burner management systems (BMS), and critical process control loops where hardware failure must not interrupt the safety function.
Technical Specifications
Model
7400028-100 (Model 8101)
Slot Count
15
Input Voltage
24 to 120 VDC
Current Rating
2 to 10 Amp
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the chassis is mounted in a clean, dry, and vibration-dampened cabinet environment.
Verify that the cabinet provides sufficient airflow to maintain the operating temperature range of 0 to 60 deg C.
Ensure all power is disconnected before installing or removing the chassis from the mounting rack.
Use appropriate grounding techniques to minimize EMI/RFI interference within the control cabinet.
Always verify that the module keying pins are aligned correctly before seating modules into the backplane.
FAQ
Is this chassis compatible with all Triconex I/O modules?
The 7400028-100 is designed for standard Triconex TMR system modules. Please refer to your specific system documentation or the module compatibility matrix to ensure your I/O cards are supported by the Model 8101 backplane.
Does this unit support redundant power supplies?
Yes, the chassis features dual-power rail distribution, which allows for the installation of redundant power supply modules to ensure continuous operation in the event of a single power source failure.
