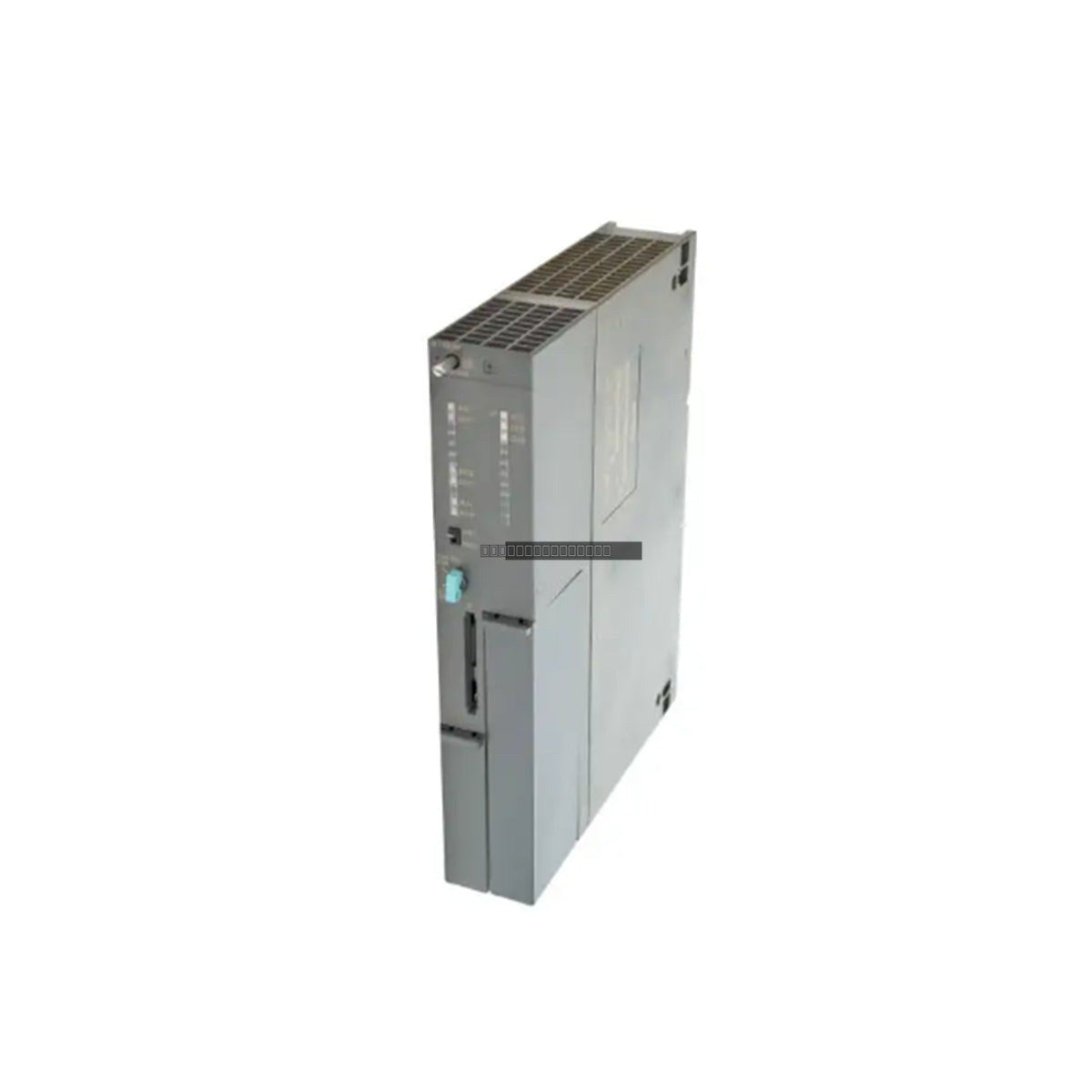

The Siemens 6ES7416-2XK01-0AB0 is a robust central processing unit designed for the SIMATIC S7-400 automation system. This CPU 416-2 processor provides high-speed execution for demanding control tasks, featuring a total of 0.8 MB of integrated work memory. It is engineered for reliability in heavy-duty industrial applications, such as large-scale infrastructure, chemical processing, and energy management, where precise control and high availability are essential.
Features
Integrated 0.8 MB work memory for program and data storage.
Dual-interface design: Includes an MPI/DP interface and a dedicated PROFIBUS DP interface.
High-speed communication support up to 12 Mbps for decentralized peripheral devices.
Advanced diagnostics and synchronization capabilities for complex control loops.
Designed for integration into S7-400 racks, supporting high-performance automation requirements.
Applications
This processor is ideal for mid-to-high-end automation projects requiring extensive I/O management and rapid cycle times. It is frequently deployed in:
Oil and gas refinery control systems.
Power generation and distribution infrastructure.
Large-scale mining operations and automated material handling.
Continuous manufacturing processes requiring high system uptime.
Technical Specifications
Model
6ES7416-2XK01-0AB0
Series
SIMATIC S7-400
Work Memory
0.8 MB
Interfaces
MPI/DP and PROFIBUS DP
Transmission Rate
Up to 12 Mbps
Power Supply
5 VDC (Backplane)
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the rack is powered down before inserting or removing the CPU module to prevent electrical damage.
Verify that the CPU is fully seated in the rack slot and the locking mechanism is engaged.
Maintain proper ventilation in the control cabinet to keep ambient temperatures within the 0-60 deg C range.
Use shielded PROFIBUS cables to minimize EMI interference in high-noise industrial environments.
Handle the module using ESD-safe procedures to protect sensitive internal electronic components.
FAQ
Is the 6ES7416-2XK01-0AB0 compatible with existing S7-400 racks? Yes, this module is designed for standard S7-400 backplanes.
What is the primary function of the two interfaces? The first interface supports MPI for programming and HMI communication, while the second is dedicated to high-speed PROFIBUS DP fieldbus communication.
Does this CPU support redundant configurations? Yes, when paired with compatible software and hardware modules, it can be utilized in high-availability configurations.
