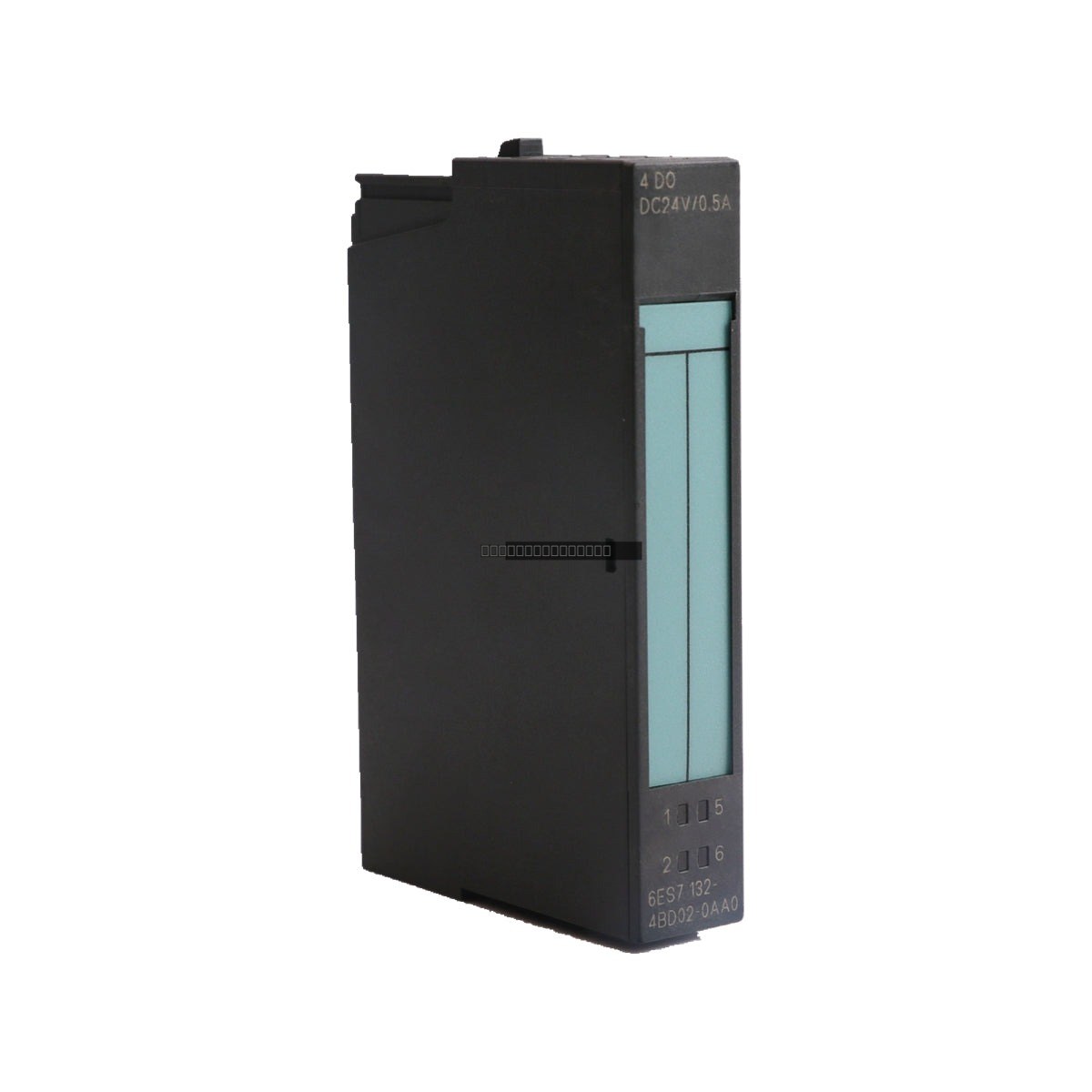

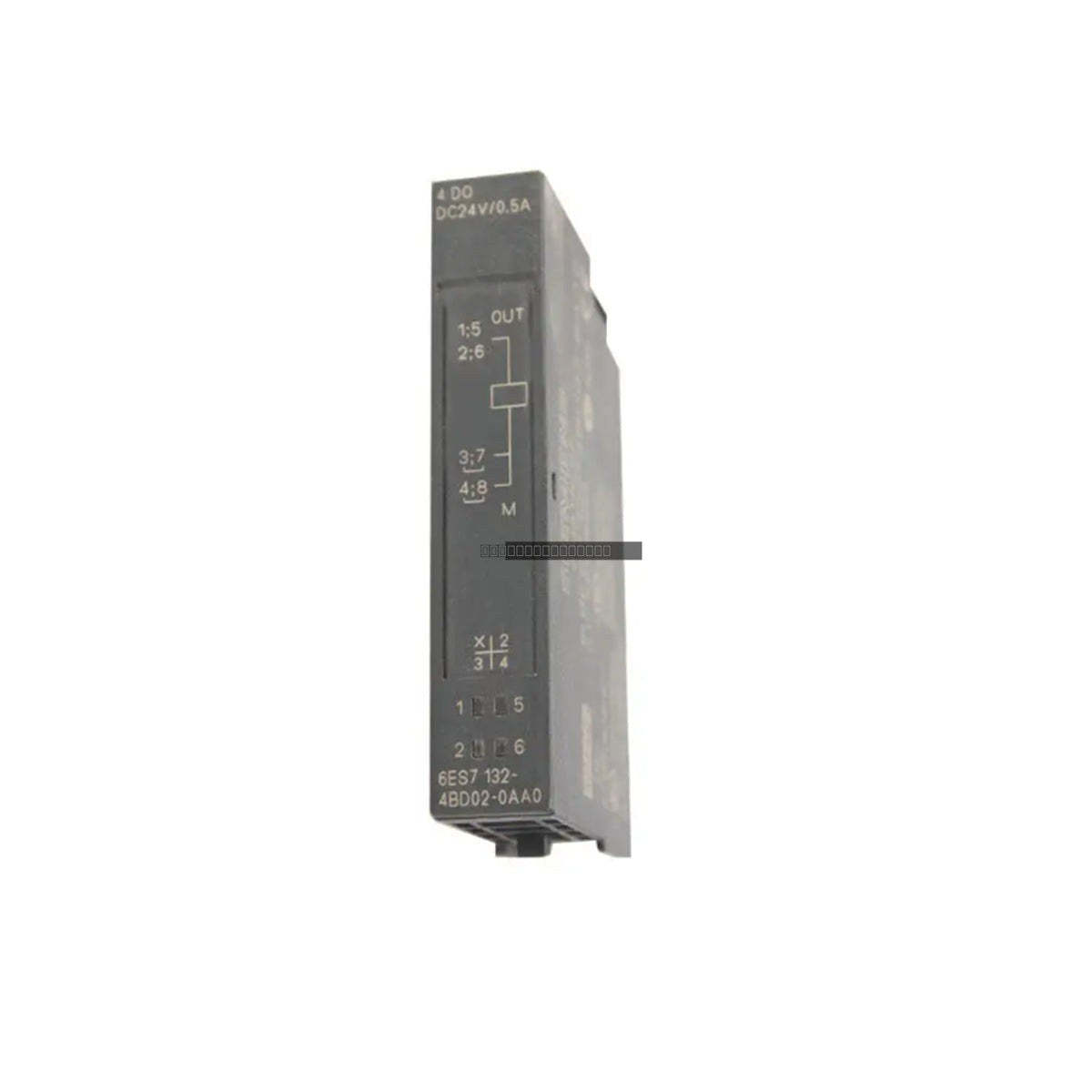

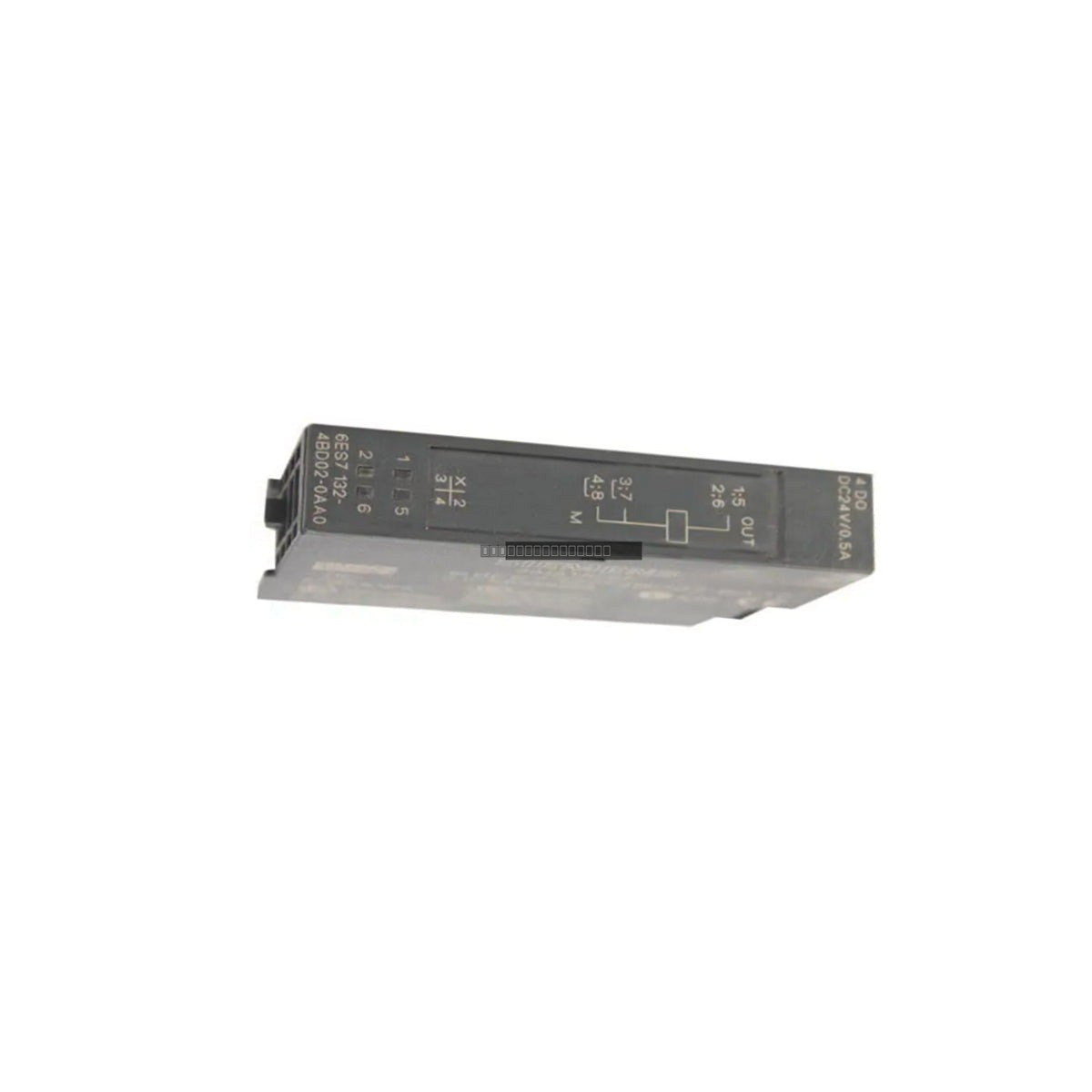

The Siemens 6ES7132-4BD02-0AA0 is a high-performance electronic module designed for the SIMATIC ET 200S distributed I/O system. This digital output module features four channels, providing reliable 24 V DC/0.5 A output control in a space-saving 15 mm wide housing. Engineered for industrial automation environments, it supports versatile load types including resistive, inductive, and lamp loads.
Features
Four digital output channels (source output/PNP).
Rated for 24 VDC operation with a 0.5 A output current per channel.
Integrated electronic short-circuit protection with a typical response threshold of 1 to 1.5 A.
Reverse polarity protection and inductive shutdown voltage limitation (L+ -55 V to -60 V).
Compact 15 mm module width for high-density DIN-rail configurations.
Supports isochronous operation for time-critical applications.
Applications
Automotive assembly and testing lines.
High-speed packaging, sorting, and palletizing systems.
Discrete manufacturing process control.
Energy and power distribution management systems.
Chemical and water treatment process interfaces.
Technical Specifications
Model
6ES7132-4BD02-0AA0
Manufacturer
Siemens
System
SIMATIC ET 200S
Output Channels
4
Rated Voltage
24 V DC
Output Current (per channel)
0.5 A
Total Current (per module)
2 A
Power Loss
0.8 W (typical)
Isolation
500 V DC
Switching Frequency (Resistive)
Up to 800 Hz
Installation Guidelines
Ensure the ET 200S terminal module is securely mounted on a standard 35 mm DIN rail (EN 60715) before inserting the electronic module.
Always power down the backplane bus and load voltage before installing or removing the module to prevent electrical damage.
The module must be clicked into the terminal module until it locks into position to ensure proper backplane bus contact.
Use appropriate shielded cabling for field wiring to minimize EMI interference in high-noise industrial environments.
Verify that the load voltage (L+) is correctly connected to the corresponding terminal module to enable reverse polarity protection.
FAQ
What is the primary function of the 6ES7132-4BD02-0AA0?
This module acts as a digital output interface within the ET 200S distributed I/O system, allowing a PLC or controller to drive field devices like contactors, solenoid valves, and indicators.
What type of terminal module is required?
The module is designed to plug into a compatible ET 200S terminal module (Type A or B), which provides the physical screw or spring-clamp terminals for field wiring.
What are the switching capabilities of this module?
The module supports resistive loads up to 800 Hz, lamp loads up to 10 Hz (max 5 W), and inductive loads up to 2 Hz.
