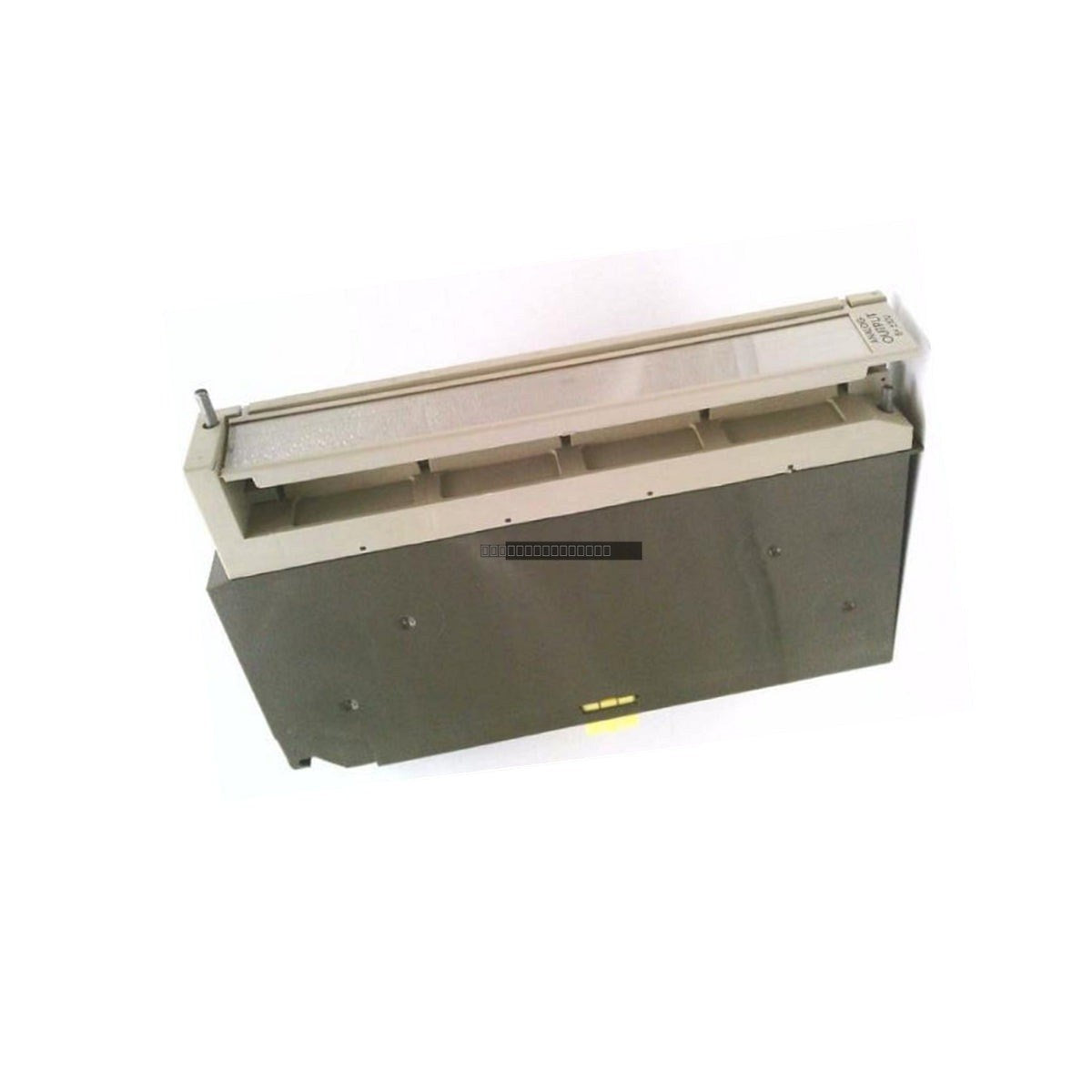

The Siemens 6ES5470-7LC11 is a specialized analog output module designed for integration within the Simatic S5 programmable logic controller (PLC) ecosystem. This module provides 8 independent output channels, facilitating the conversion of digital control data into precise 1-5 V analog signals. It is engineered to maintain stability and accuracy in demanding industrial environments, serving as a critical component for legacy systems that require reliable control over actuators, valves, and other analog-driven field instrumentation.
Features
Provides 8 high-precision analog output channels.
Standardized 1 to 5 V output signal range for compatibility with legacy field devices.
Galvanic isolation via optocouplers to protect the CPU from field-side electrical interference.
On-board diagnostic LEDs for real-time monitoring of communication status and channel health.
Integrated short-circuit protection for individual output loops to enhance system safety.
Applications
This module is widely utilized in legacy automation systems across various sectors, including chemical processing, power generation, and heavy manufacturing. It is primarily used to drive proportional control elements such as control valves, variable speed drives, and positioners, ensuring accurate process regulation in systems where Simatic S5 architectures remain in operation.
Technical Specifications
Model
6ES5470-7LC11
Brand
Siemens
Series
Simatic S5
Channels
8
Signal Range
1 to 5 V
Power Consumption
3.5 W
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
Verify that the module is correctly seated in the designated S5 chassis slot and secured using the integrated locking mechanism.
Use shielded cabling for all analog output connections to minimize EMI and noise interference.
Maintain proper ventilation in the control cabinet to keep ambient temperatures within the 0 to 60 deg C operating range.
Follow standard ESD (electrostatic discharge) prevention protocols when handling the module to protect internal circuitry.
FAQ
What is the primary function of the 6ES5470-7LC11? This module acts as an interface between the Simatic S5 CPU and external field devices, converting digital values into 1-5 V analog signals to control industrial processes.
Is this module compatible with other Simatic series? The 6ES5470-7LC11 is specifically engineered for the Simatic S5 platform. It is not designed for direct use in S7 or other modern Siemens automation series.
What should I do if a channel fault LED illuminates? Check the field wiring for short circuits or open loops. If the wiring is intact, verify the module's seating in the backplane and consult the S5 system diagnostic logs for specific error codes.
