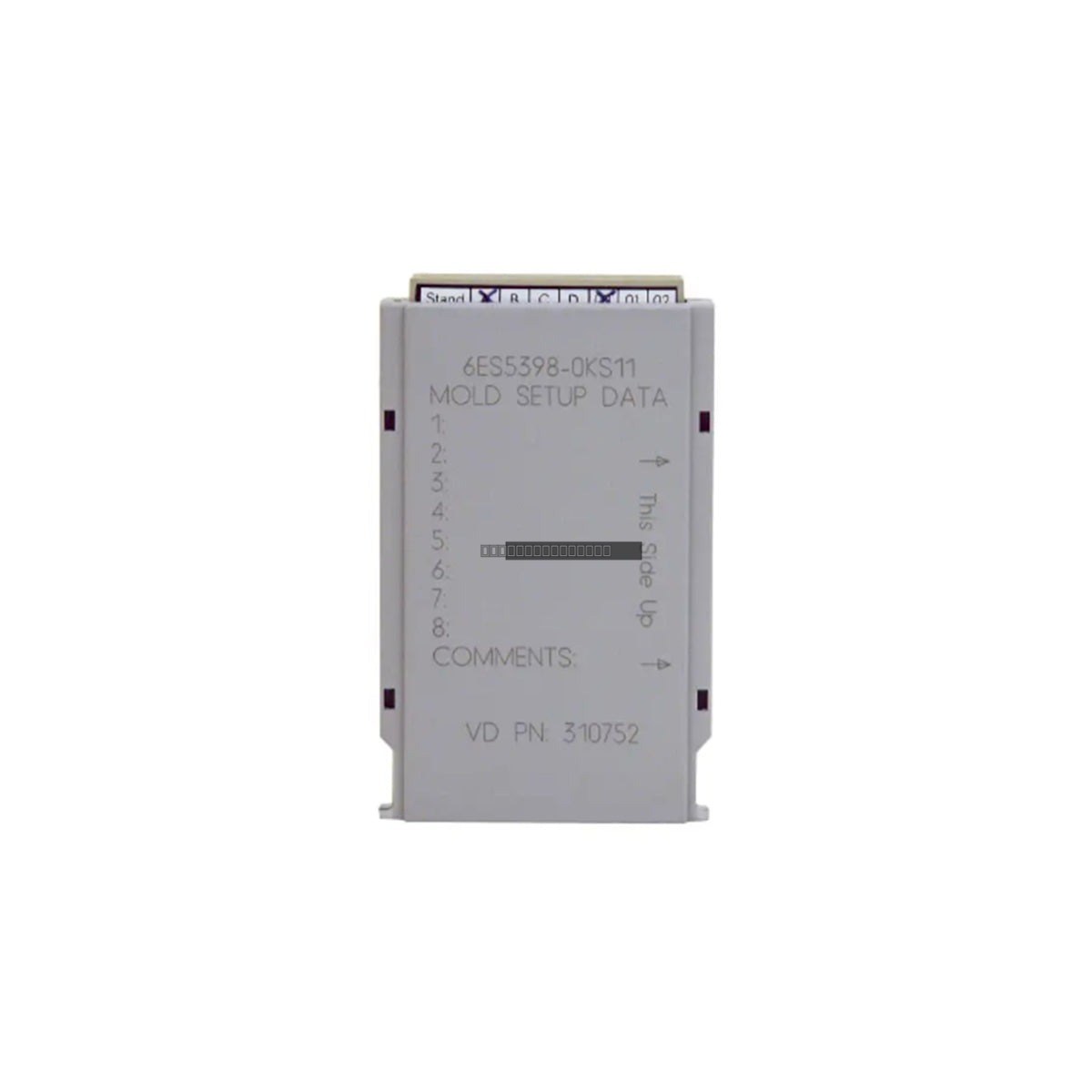

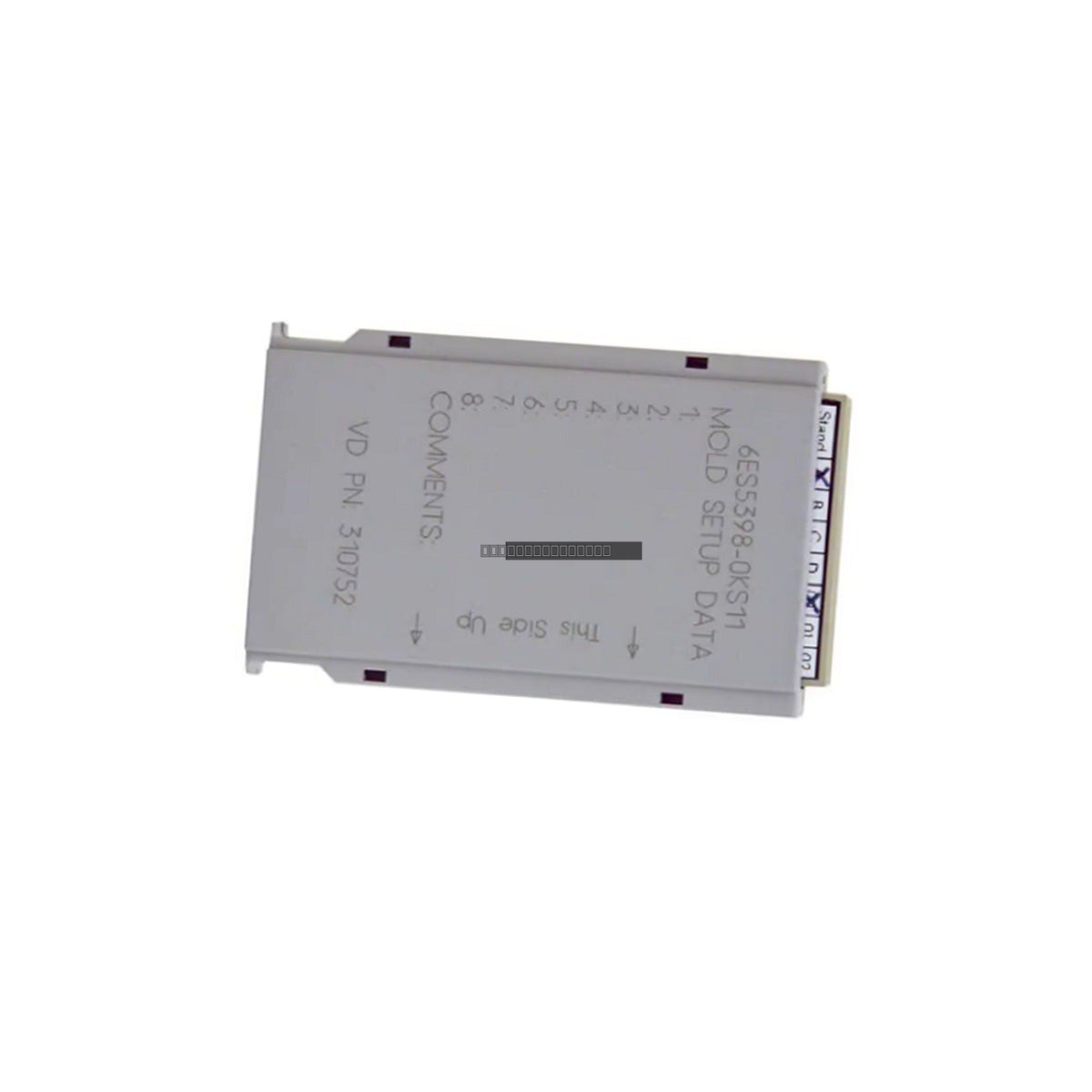

The Siemens 6ES5398-0KS11-V is a dedicated non-volatile memory cartridge designed for the Simatic S5 PLC platform. This module serves as a reliable storage medium for user programs, system configurations, and critical operational parameters. By providing a stable, solid-state repository for STEP 5 control code, it ensures that your automation logic remains intact even in the event of CPU power loss or backup battery failure. This cartridge is an essential component for maintaining high availability in legacy S5-based control systems, facilitating rapid system restarts and minimizing downtime in industrial automation applications.
Features
Engineered for seamless integration with Siemens Simatic S5 processor units.
Non-volatile memory architecture ensures data retention without the need for external battery backup.
Robust plug-in design resistant to high-vibration environments and repeated insertion cycles.
High-speed interface for efficient read/write access to system parameters and diagnostic routines.
Shielded casing provides protection against electromagnetic interference (EMI) and static discharge.
Applications
This memory module is widely utilized in legacy industrial control environments, including:
Power generation and distribution control systems.
Mining and heavy machinery automation.
Petroleum refining and petrochemical processing plants.
Automated manufacturing lines relying on S5 architecture.
Technical Specifications
Model
6ES5 398-0KS11-V
Brand
Siemens
Series
Simatic S5
Memory Type
Non-volatile solid-state
Power Consumption
0.5 W (via CPU)
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 70 deg C
Humidity
95% non-condensing
Installation Guidelines
Ensure the CPU is powered down before inserting or removing the memory cartridge to prevent electrical damage.
Align the module carefully with the CPU memory sub-bus slot to avoid bending the contact pins.
Push the cartridge firmly until it is fully seated; ensure the locking mechanism is engaged if applicable.
Maintain a clean, dry environment to prevent corrosion of the contact terminals.
Avoid exposure to extreme thermal fluctuations during storage or operation to maintain semiconductor longevity.
FAQ
Does this cartridge require an external battery? No, this model uses non-volatile memory technology that retains data without requiring an external battery backup.
Is this compatible with all S5 CPUs? This cartridge is designed for the Simatic S5 series. Please verify your specific CPU manual to ensure the cartridge capacity and type match your processor's requirements.
