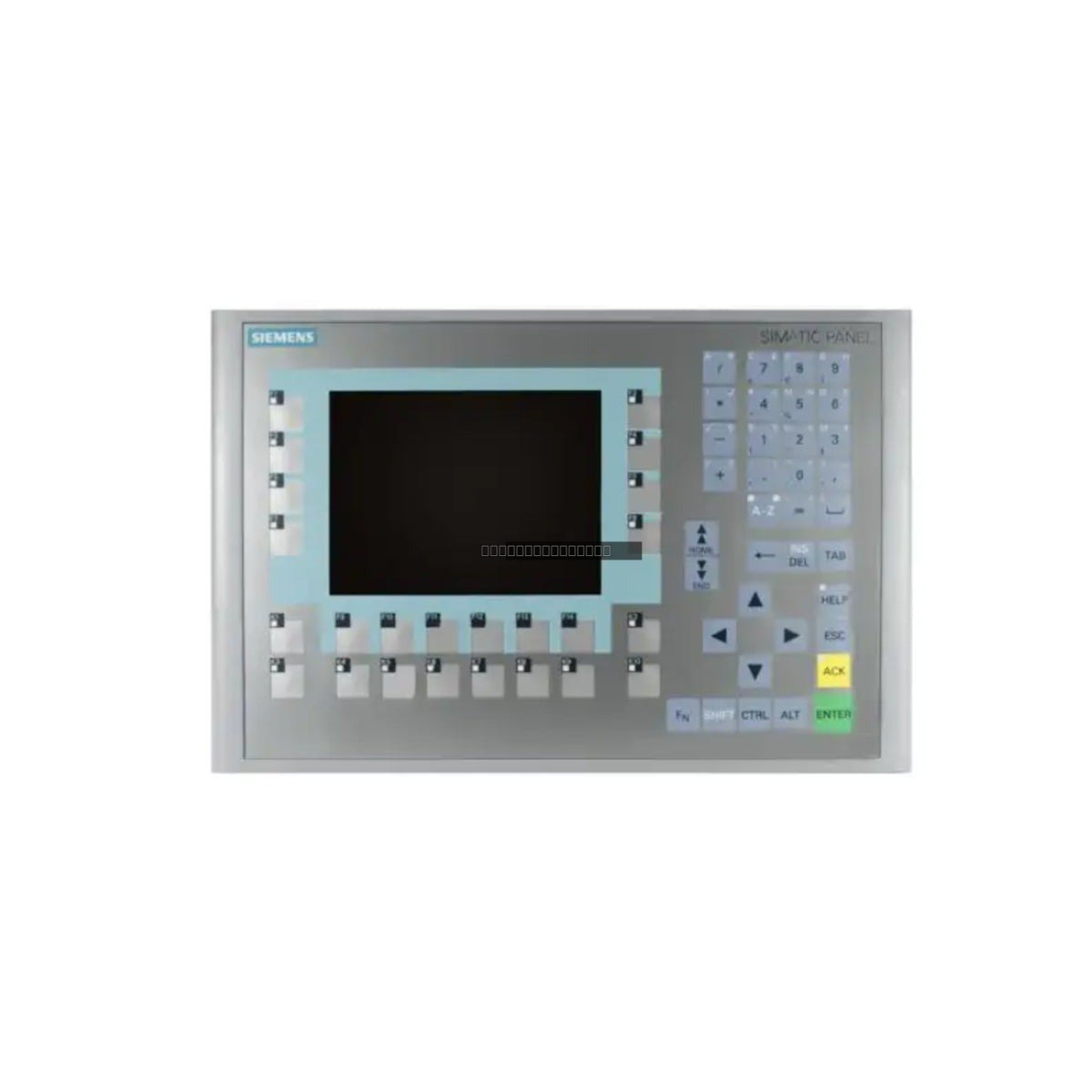

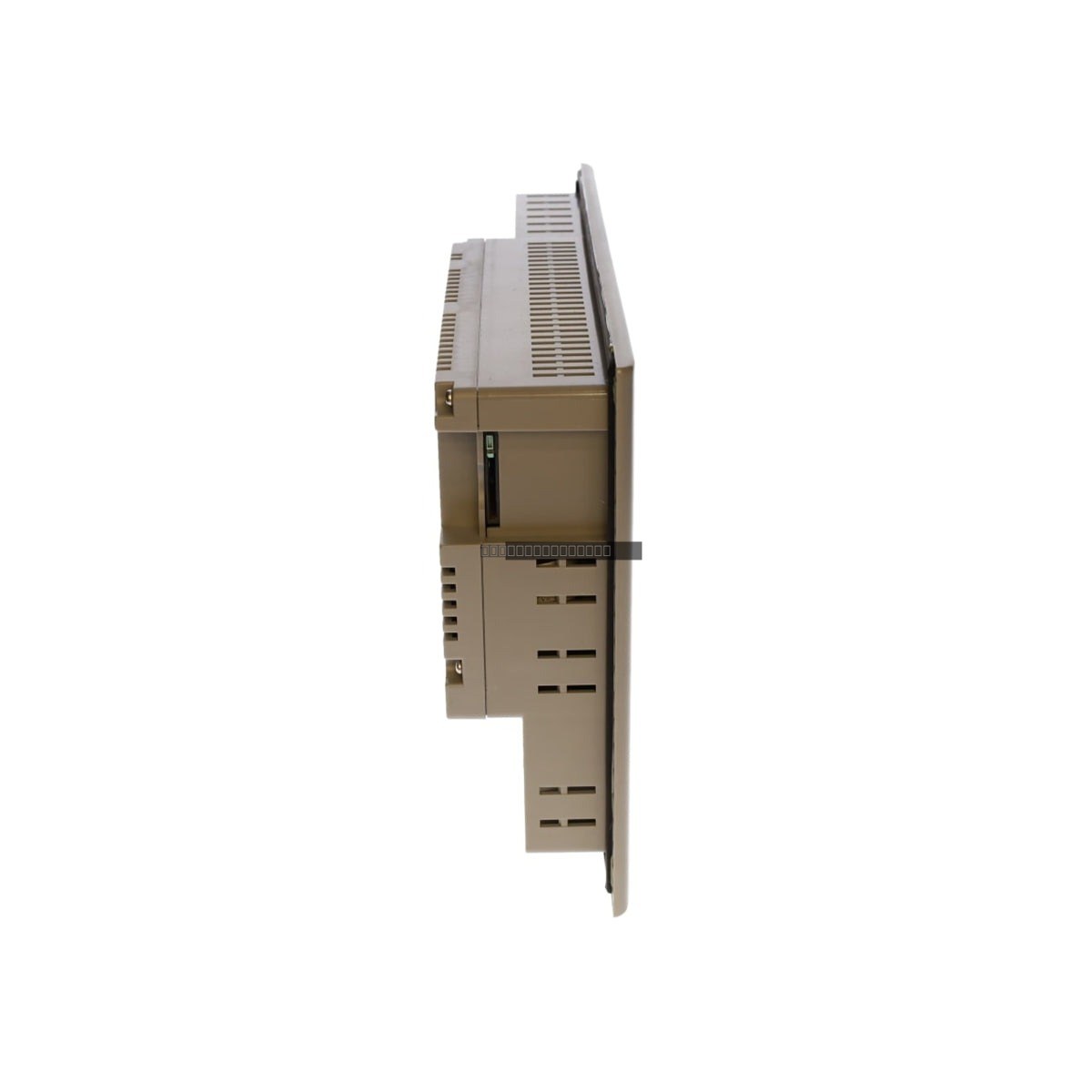

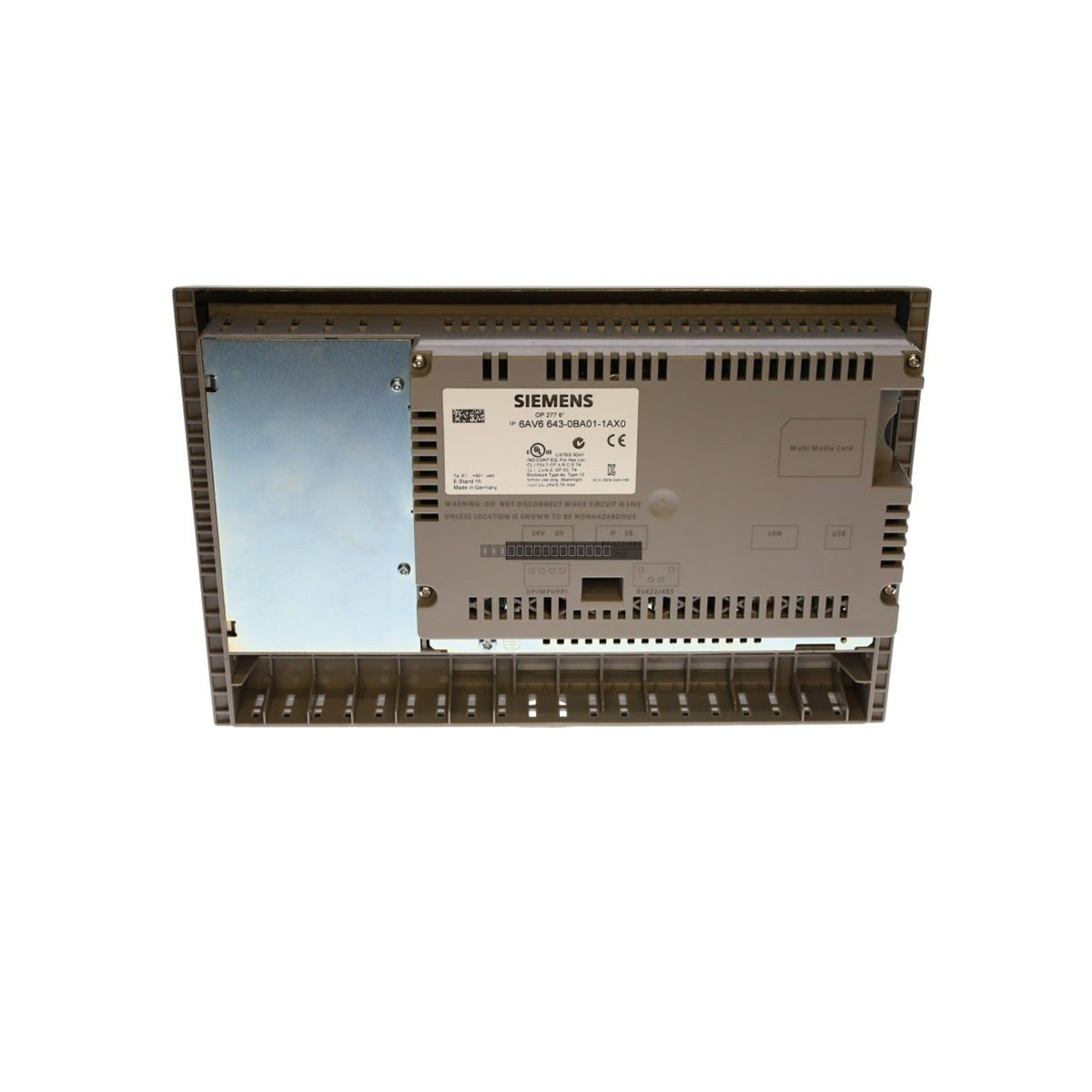

The Siemens 6AV6643-0BA01-1AX0 is a robust SIMATIC OP 277 operator panel engineered for reliable human-machine interface (HMI) tasks in industrial automation. Featuring a 5.7-inch TFT display, this unit provides clear, high-contrast visualization for process monitoring, alarm management, and machine control. Designed for demanding environments, it ensures consistent performance in sectors such as manufacturing, automated assembly, and process engineering.
Features
5.7-inch TFT LCD display for clear status and telemetry visualization.
4 MB of integrated configuration memory, suitable for complex alarm logs, recipes, and graphic projects.
High-durability design suitable for industrial floor operation.
Compatible with WinCC flexible 2005 Standard SP1 or later software environments.
Operates on a standard 24 VDC power supply.
Applications
This HMI is widely utilized in industrial facilities to facilitate operator interaction with PLC-based control systems. Common applications include monitoring production cycles, managing machine-level parameters, and providing real-time diagnostics in automotive, chemical, and water management systems.
Technical Specifications
Model
6AV6643-0BA01-1AX0
Brand
Siemens
Series
SIMATIC OP 277
Display Type
TFT LCD
Display Size
5.7 inch
Memory
4 MB
Input Voltage
24 VDC
Operating Temperature
0 to 50 deg C
Installation Guidelines
Ensure the panel is mounted in a suitable enclosure cutout to maintain the required ingress protection rating.
Use shielded communication cables to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Verify that the 24 VDC power source is stable and properly grounded before connecting the device.
Perform all wiring and maintenance while the device is powered down to prevent electrical damage or data corruption.
Ensure adequate ventilation around the unit to prevent overheating during continuous operation.
FAQ
What software is required to configure this HMI? The 6AV6643-0BA01-1AX0 is configured using Siemens WinCC flexible software, specifically version 2005 Standard SP1 or higher.
What is the primary display technology for this unit? This model utilizes a 5.7-inch TFT (Thin Film Transistor) LCD display, chosen for its reliability and clarity in industrial control applications.
