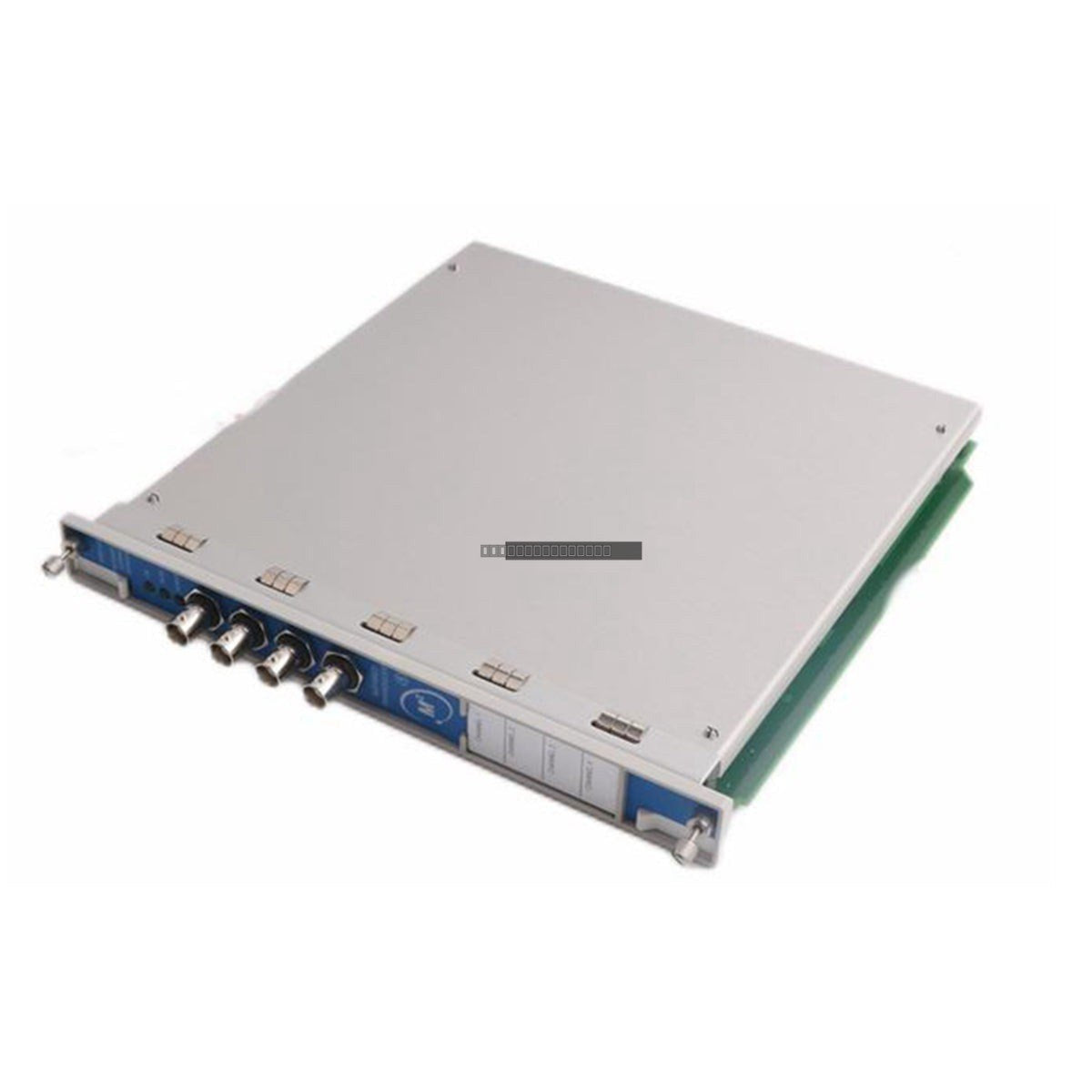

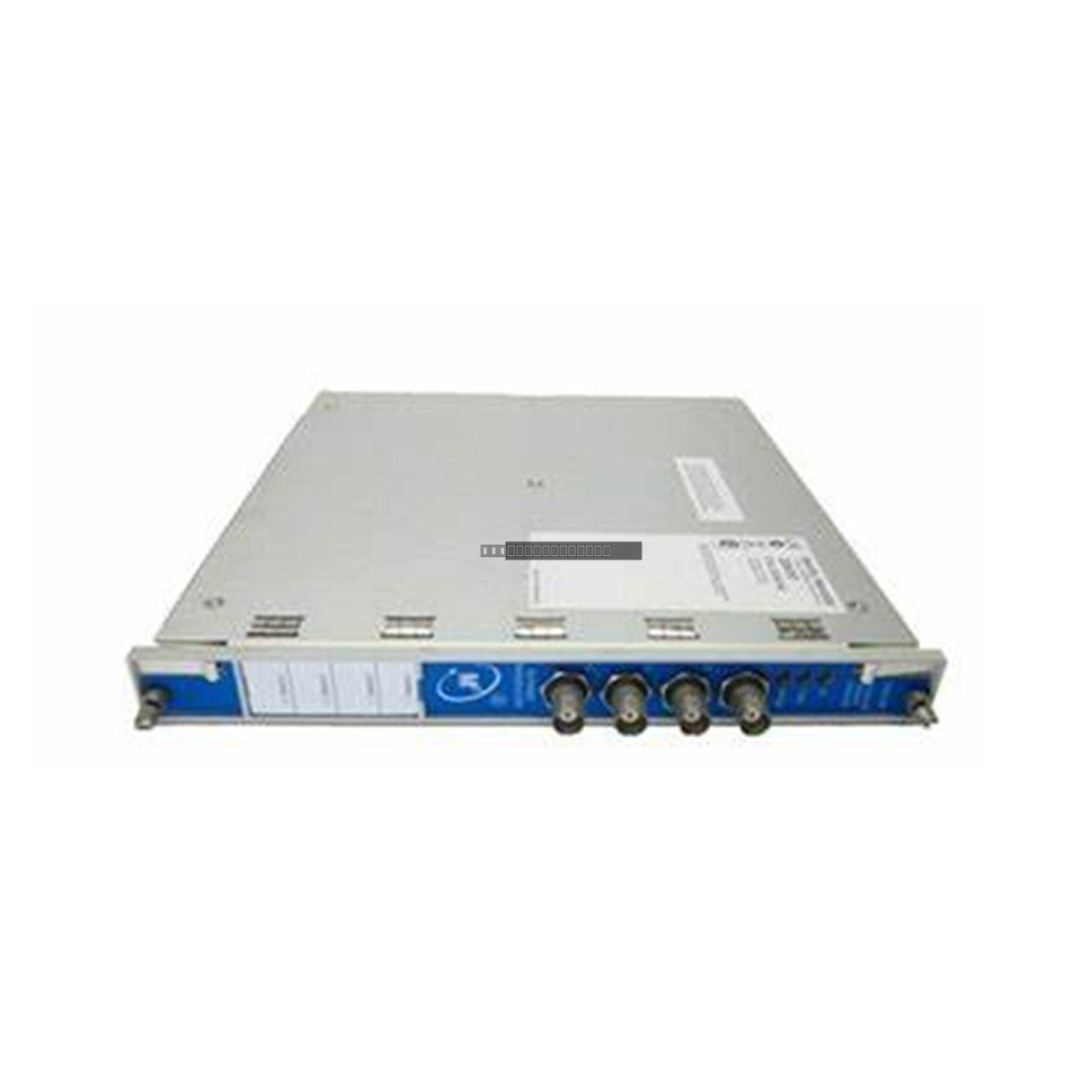

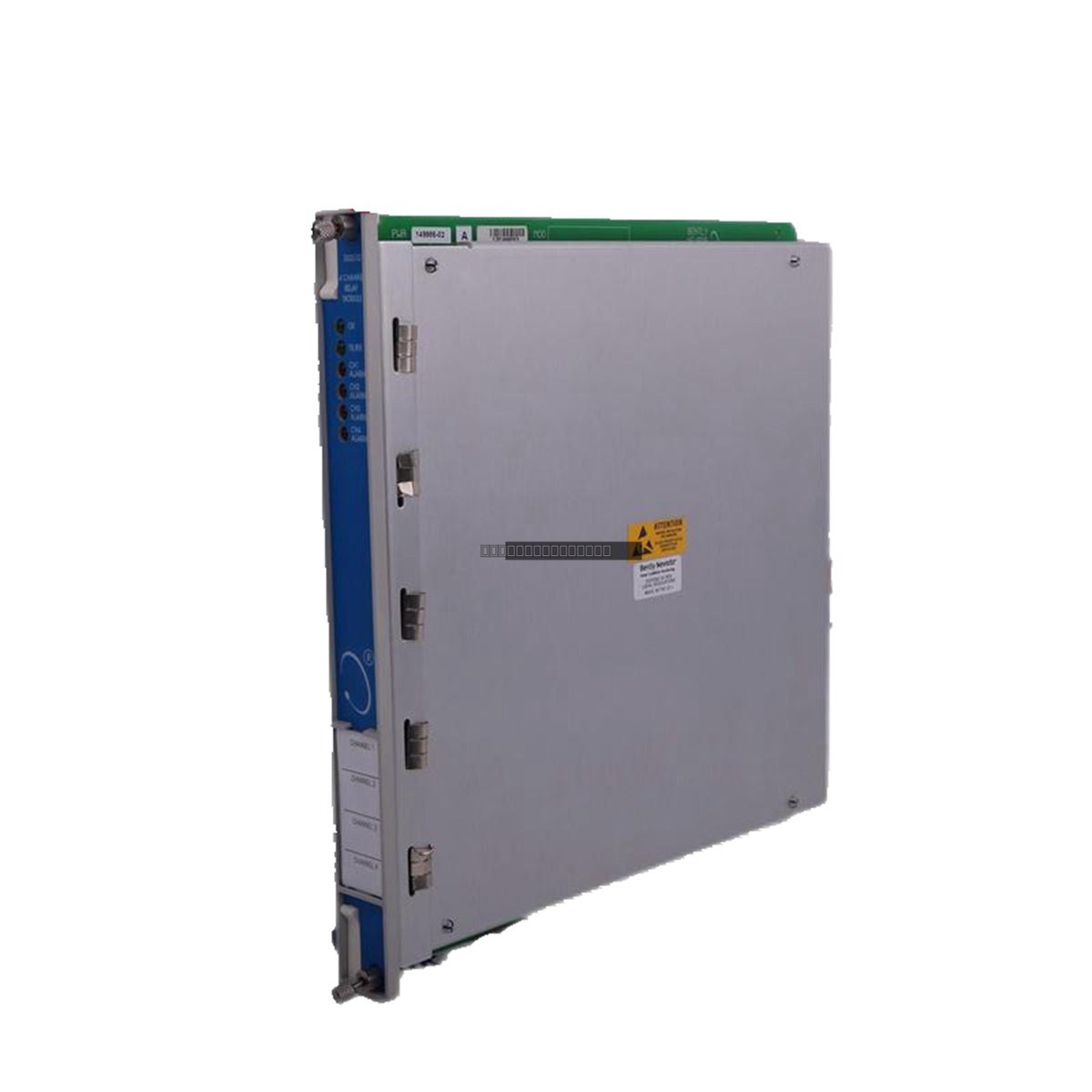

The Bently Nevada 125972-02 is a 3500/42 series Proximitor/Seismic Monitor module engineered for critical machinery protection. This four-channel interface module is designed to accept inputs from proximity probes, seismic transducers, and velocity sensors, providing real-time signal conditioning for vibration and position monitoring in industrial rotating equipment.
Features
Four independent, software-configurable monitoring channels.
Programmable alarm setpoints (Alert and Danger) with integrated voting logic for machinery shutdown or alarm annunciation.
Full integration with the Bently Nevada 3500 rack system backplane for power and data communication.
Supports advanced diagnostic capabilities for rotating equipment, including turbines and compressors.
Applications
This module is primarily utilized in heavy industrial environments for monitoring shaft vibration, axial position, and seismic casing vibration. It is a standard component in 3500 rack systems used to protect critical assets such as centrifugal compressors, steam turbines, and large-scale industrial pumps.
Technical Specifications
Operating Temperature
-30 degC to +65 degC
Storage Temperature
-40 degC to +85 degC
Operating Humidity
95% non-condensing
Channel Count
4 independent channels
Compatibility
Bently Nevada 3500 Series Rack
Installation Guidelines
Ensure the 3500 rack is powered down before inserting or removing the 3500/42 module to prevent electrical damage.
Handle the module using proper ESD (Electrostatic Discharge) mitigation techniques to avoid damaging internal circuitry.
Verify that the I/O module is correctly seated in the corresponding slot of the 3500 rack.
Ensure all signal wiring is routed away from high-voltage cables or sources of significant electromagnetic interference (EMI).
Use shielded cables for sensor inputs to maintain signal integrity and adhere to standard grounding practices for instrumentation loops.
FAQ
What is the primary function of the 3500/42 monitor?
The 3500/42 is designed to condition raw signals from various vibration and position sensors, compare these signals against user-defined thresholds, and provide alarm outputs for machinery protection within the 3500 rack environment.
Does this module require external power?
No, the 3500/42 module receives its operating power directly from the 3500 rack power supply via the backplane assembly.
