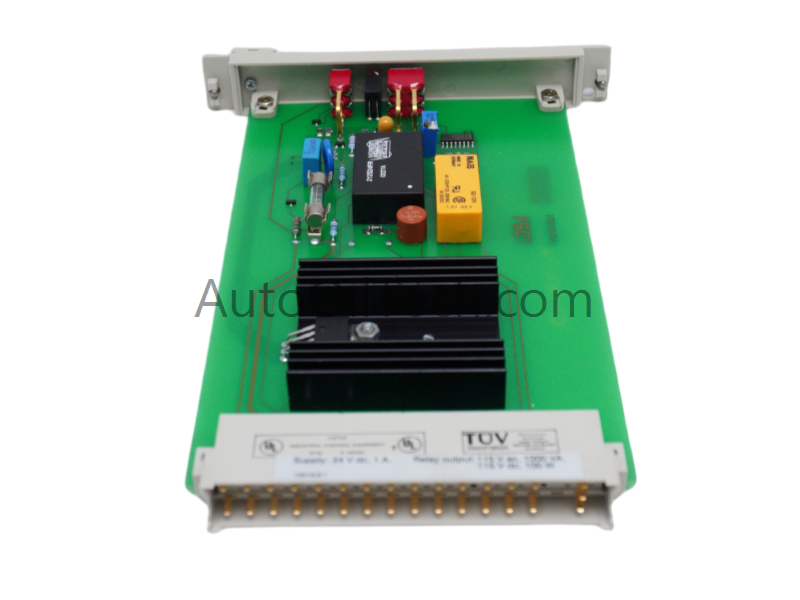

10310/1/2 | Honeywell | Earth Leakage Detector Module

Description

The Honeywell 10310/1/2 Earth Leakage Detector (ELD) Module is engineered to detect and monitor leakage currents in electrical systems, providing enhanced safety and reliability for industrial automation and process control environments.

Specifications

• Manufacturer: Honeywell

• Product Number: 10310/1/2

• Type: Earth Leakage Detector (ELD) Module

• Approvals: CE certified

• Supply Voltage: 24 VDC (max. 30 VDC)

• Supply Current: Max. 60 mA

• Reset Input Voltage: 18–70 VDC

• Reset Input Current: 1.1 mA at 24 VDC

• Max. Output Voltage: 115 VDC

• Max. Output Current: 2 A

• Ambient Temperature: −55 °C to +65 °C (−67 °F to +149 °F)

• Dimensions (L × W × H): 7 cm × 4.5 cm × 10 cm

• Weight: 3 kg

• Shipping Weight: 4 kg

Features

• Leakage Detection: Monitors earth leakage currents to prevent electrical hazards

• Flexible Reset Range: Accepts 18–70 VDC reset input for versatile integration

• High Output Capacity: Supports up to 115 VDC, 2 A for relay and protective circuits

• Extreme Temperature Tolerance: Operates reliably from −55 °C to +65 °C

• Compact Design: Small footprint for easy installation in control panels

• Industrial Durability: Built for continuous duty in demanding environments
