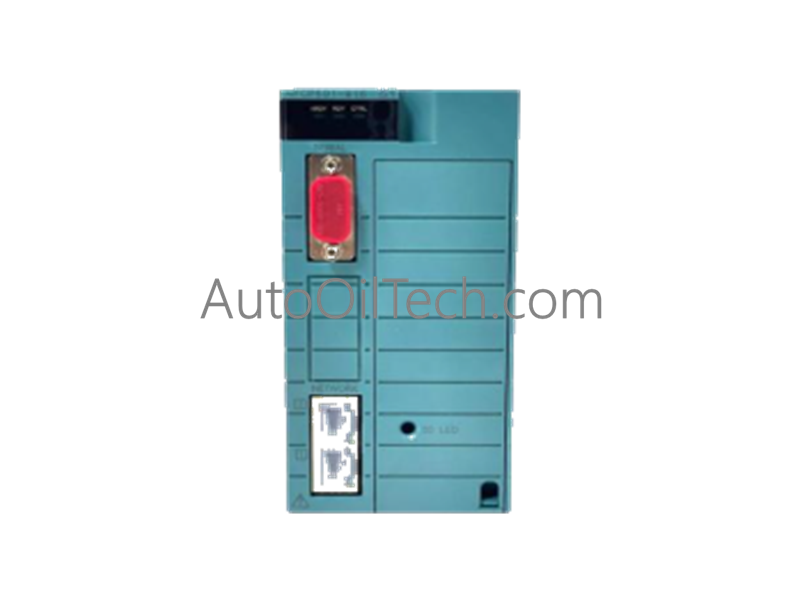

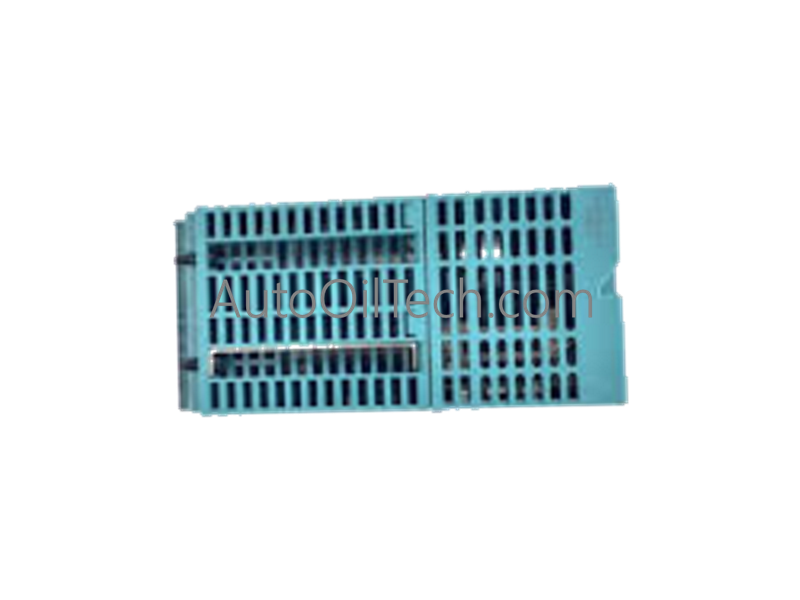

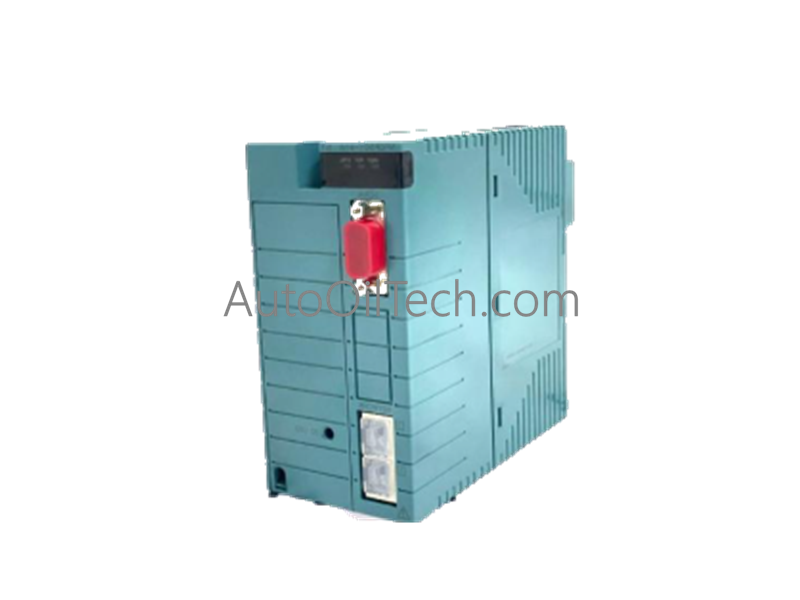

The Yokogawa SDV541-S63/PRP, also cataloged as the SDV541 Digital Output Module, operates as a dedicated hardware component for high-integrity discrete signal actuation within ProSafe-RS Safety Instrumented Systems (SIS). The rack-mounted sub-assembly provides 16 isolated channels natively at the hardware tier to drive safety-critical field elements like solenoid valves, interposing relays, and trip circuits.
Hardware Specifications
Parameter
Specification
Model
SDV541-S63/PRP
Brand
Yokogawa
Origin
Japan
Weight
3.0 kg shipping mass
Dimensions
Standard FIO node slot-integrated module layout geometry
Operating Temp
-20 to 70 deg C continuous operational envelope
Protection Class
Conformal coating conforming to ISA Standard G3 environmental resistance
Channel Density
16 discrete output channels
Output Voltage Rating
24 VDC nominal loop power
Isolation Configuration
Complete module-to-module and channel-to-logic electrical isolation
Interface Adapter
Integrated signal cable interface adapter (no explosion protection)
Mechanical Coding
Option /PRP equipped with a prevention pin for false insertion protection
Product Type
Digital Output Cards
Process Control & DCS Instrumentation Interface
Channel-to-Channel and Module Isolation Control The electronic topology incorporates comprehensive isolation barriers between the 16 output circuits and the internal logic processing core. This design isolates transient induction spikes, field ground loops, and high-voltage common-mode faults up to industrial safety limits, preventing external line failures from disrupting the primary node communication backplane.
4-20 mA HART Loop Protocol Coexistence Zone The module manages internal discrete solid-state switching matrices completely segregated from adjacent analog 4-20 mA HART loop protocol signaling routes. This physical board shielding layout suppresses crosstalk and ensures that high-speed inductive switching noise from 24 VDC solenoid loops does not corrupt parallel instrumentation buses.
