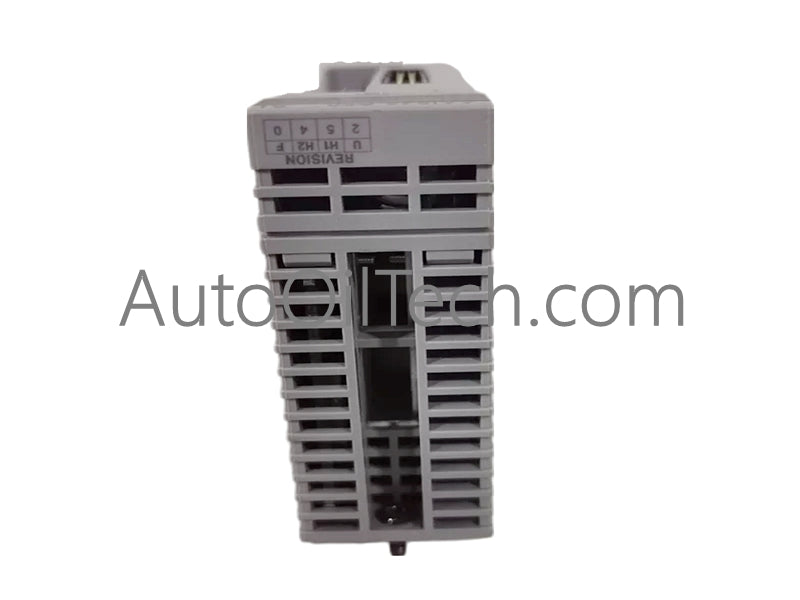

The Yokogawa SB401-50 S1, also cataloged as the SB401 ESB Bus Interface Module, operates as a dedicated hardware component for high-speed inter-unit communication within CENTUM VP control node architectures.
Suffix Breakdown & Model Matrix
Parameter / Suffix Code
Specification Breakdown
Base Model (SB401)
ESB Bus Interface Module for Field Control Unit (FCU)
Safety / Environment (-5)
Standard type with no explosion protection
Functional Type (-0)
Basic type operational configuration
Style Code (S1)
Style 1 hardware revision level
Hardware Specifications
Parameter
Specification
Model
SB401-50 S1
Brand
Yokogawa
Origin
Japan
Weight
Shipping Weight 2 kg
Dimensions
Standard CENTUM VP module form factor
Operating Temp
0 to 55 deg C
Power Consumption
5 VDC internal system bus draw, 0.5 A max
Communication Interface
ESB Bus master interface for local I/O expansion nodes
Transmission Distance
Up to 10 m via standard dedicated ESB bus cable
4-20 mA HART Loop Protocol & Channel Isolation
The module maintains optical channel-to-channel isolation and galvanic isolation barriers between the internal logic backplane and field-facing bus links. Dedicated signal conditioning circuits filter potential high-frequency EMI, preserving data integrity across 4-20 mA HART loop protocol communications passing through connected analog input and output slave nodes. Integrated cold junction compensation (CJC) processing algorithms operate deterministically on peripheral I/O units served across the ESB bus extension link.
Frequently Asked Questions
Q: Can the SB401-50 S1 module be inserted or removed under power (hot-swapped) during system operation?
A: Hot-swapping is permitted only when installed within a redundant configuration where the active master bus interface maintains primary communication without interrupting slave node polling cycles.
Q: What specific cable type and length constraints apply to the ESB bus link managed by this module?
A: Dedicated Yokogawa optical/coaxial ESB bus cables must be utilized, with total segment length strictly limited to 10 m for local extension nodes to prevent propagation latency violations.
Field Installation Guidelines
Mount the module into the designated slot of the Field Control Unit (FCU) rack, ensuring full backplane connector engagement before tightening the top and bottom retaining screws to 0.5 Nm torque. Signal cables must maintain a minimum 100 mm separation from high-voltage AC power lines. Ground shielding wires directly to the system protective earth (PE) bus bar with minimum 2.5 mm sq copper conductors. Ensure cabinet ambient airflow remains within 0 to 55 deg C operating limits without direct thermal obstruction.
