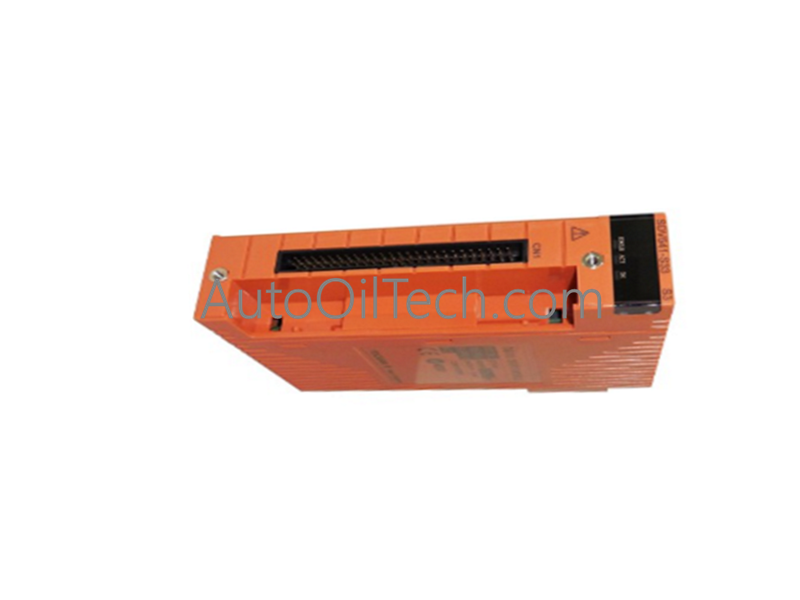

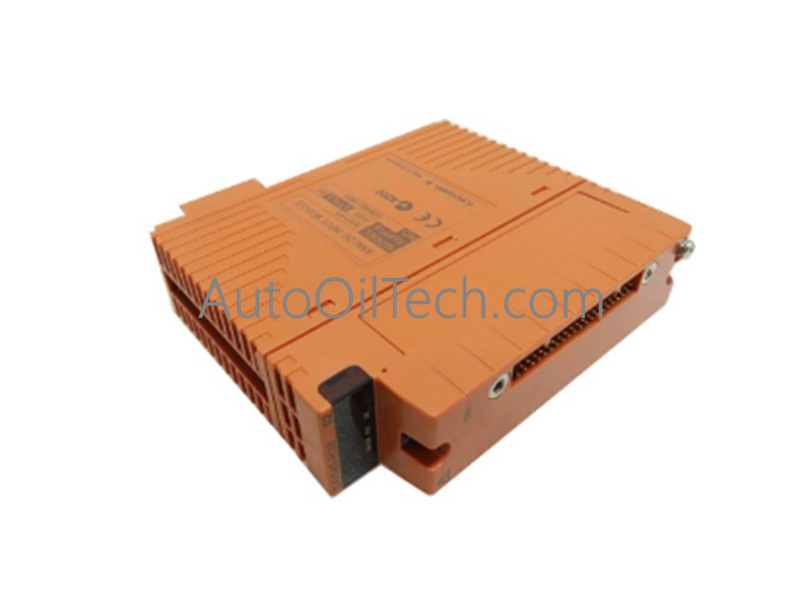

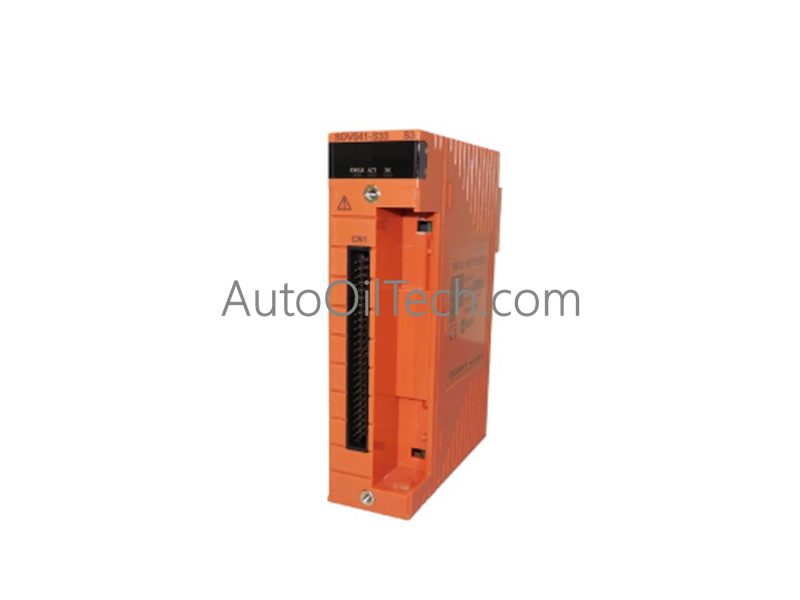

The Yokogawa SAI533-H33, also cataloged as the SAI533 Analog Output Module, operates as a dedicated hardware component for field signal generation and valve actuator drive execution within ProSafe-RS Safety Instrumented Systems (SIS). Current manufacturing configurations classify the SAI533-H63/PRP assembly as the direct technical successor module.
Hardware Specifications
Parameter
Specification
Model
SAI533-H33 (Functional Update: SAI533-H63/PRP)
Brand
Yokogawa
Platform
ProSafe-RS Safety Control System
Origin
Japan (JP)
Weight
Approx. 0.26 kg (Base Module) / 2.00 kg (Full Shipping Box)
Dimensions
130 mm x 124 mm x 32.8 mm
Operating Temp
-20 to +70 deg C (-4 to +158 deg F) / ISA Standard G3 Compliant
Output Type
Analog Current Output (Supports Dual Redundancy)
Number of Channels
8 channels, module isolation
Rated Output Range
4-20 mA
Precision Range
1.25 to 23 mA (Maximum guaranteed envelope)
Accuracy Limits
+/- 48 uA
Data Update Period
40 ms
Allowable Load Resistance
230 to 600 Ohm
Temperature Drift
+/- 16 uA per 10 deg C variation
Withstand Voltage
1.5 kV AC between output loop and system logic for 1 minute
Current Consumption
320 mA max (5 VDC system rail), 300 mA max (24 VDC system rail)
Interface Options
-H33: Pressure clamp terminal / MIL cable; -H63: Dedicated signal cable interface adapter
Yokogawa Process Control and DCS Optimization
4-20 mA HART Loop Protocol Integration: The output circuit functions as an interference-free HART passthrough infrastructure. It permits Safety Control Station (SCS) logic execution to coexist with high-frequency frequency-shift keying (FSK) digital telemetry, allowing Asset Management Systems or Plant Resource Manager (PRM) clients to run Partial Stroke Tests (PST) on safety valve positioners without interrupting safety shutdown logic loop readiness.
Channel-to-Channel and Module Isolation Matrix: The hardware features a 1.5 kV AC isolation boundary separating the output channels from the internal backplane logic components. This topology blocks transient voltage spikes and field-side grounding loops from bleeding into the primary safety network nodes, ensuring local circuit faults remain contained to the specific field loop terminal points.
