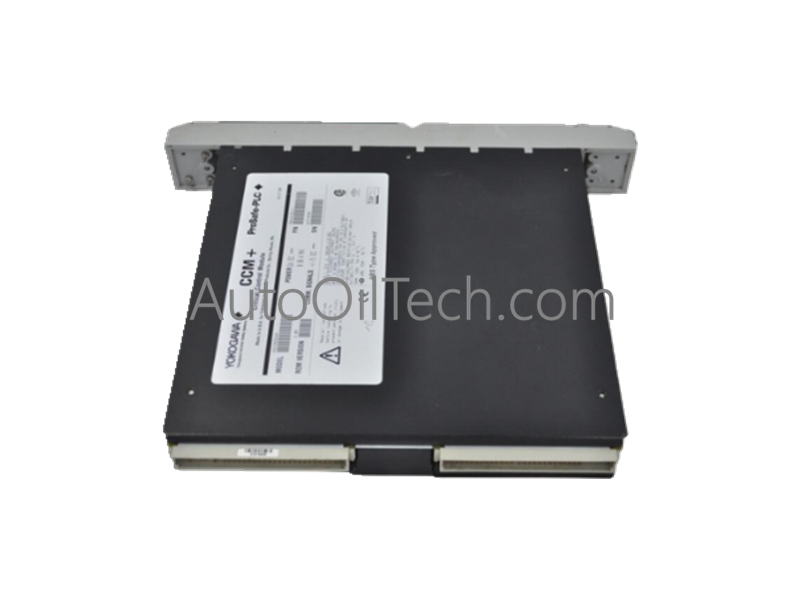

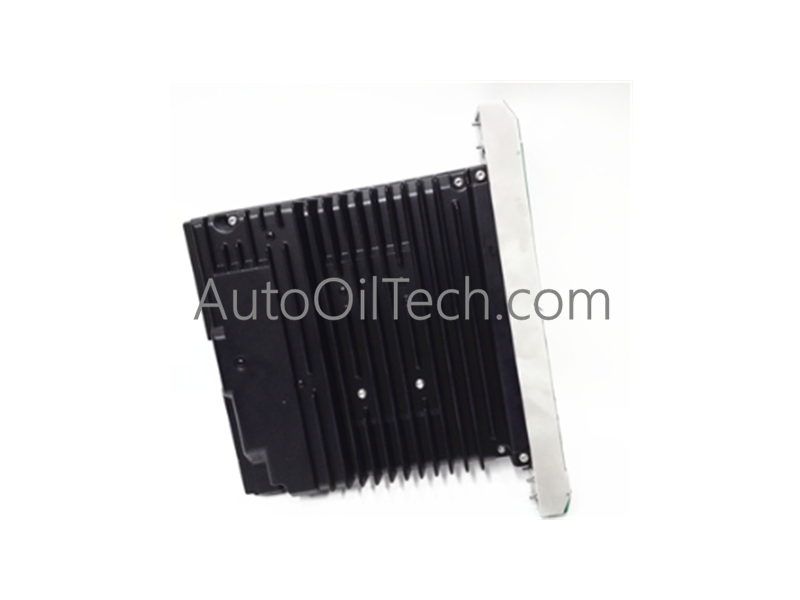

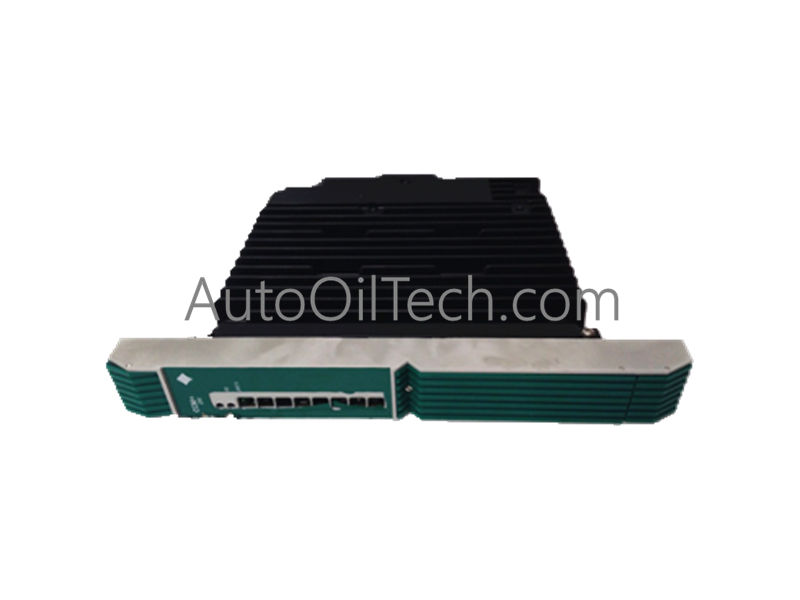

Yokogawa PSCCM22AAN Critical Control Module
No reviews
In stock!
- Part Number: PSCCM22AAN
- Brand: Yokogawa
- Type: Critical Control Module
- Dimensions: 3.2x10.7x13cm
- Country of Origin: Japan
- Barcode: 8537101190
Share
Additional Specifications
| Color / Pattern |
|
| Power Source |
|
| Controller Design |
|
Product Description
Yokogawa PSCCM22AAN Critical Control Module
The Yokogawa PSCCM22AAN, also cataloged as the PSCCM22AAN critical control module, serves as the primary subsystem routing component used to execute deterministic digital and analog control‑signal distribution across CENTUM VP and ProSafe‑RS platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | PSCCM22AAN |
| Brand | Yokogawa |
| Origin | Japan (typical Yokogawa manufacturing origin for control modules) |
| Weight | Panel‑grade lightweight module; no numeric value specified |
| Dimensions | Standard Yokogawa wiring‑nest form factor; no numeric value specified |
| Operating Temp | Control‑room rated thermal range; no numeric value specified |
| Power Consumption | Passive routing module; negligible consumption from backplane |
| Module Type | Critical control module |
| Backplane Interface | Yokogawa standardized backplane connector |
| Terminal Type | Pressure‑clamp terminal block |
| Signal Types | Digital contact states, analog references, excitation/return conductors |
| Channel Isolation | Internal PCB trace spacing for impedance separation |
| PCB Construction | Multi‑layer PCB with controlled‑impedance routing |
| Mounting | Panel‑mount or nest‑mount depending on system architecture |
| Environmental Behavior | Non‑condensing humidity operation |
| Grounding Scheme | Common reference ground via backplane; shield termination at terminal block |
| Compatibility | CENTUM VP / ProSafe‑RS subsystem wiring nests |
| Product Type | Critical Control Modules |
4‑20 mA HART Loop Protocol & Channel Isolation
Within Yokogawa architectures, PSCCM‑series modules align with channel‑to‑channel isolation practices used across CENTUM VP and ProSafe‑RS wiring nests. Although the module does not perform analog processing, its internal routing maintains stable impedance characteristics required for adjacent 4‑20 mA HART loops. Isolation spacing prevents cross‑talk between digital excitation lines and analog loop conductors, supporting deterministic control behavior when paired with Yokogawa subsystem I/O cards.
Frequently Asked Questions
Q: Can the PSCCM22AAN be inserted or removed while the control panel remains energized? A: Critical‑control modules are not designed for hot‑swap. Removal or insertion should occur only when the associated segment is de‑energized to avoid transient loading on the backplane.
Q: Does the module support redundant control configurations? A: Yes. PSCCM‑series modules provide passive routing compatible with simplex or redundant control architectures without requiring hardware modification.
Q: How does channel isolation affect mixed digital/analog wiring? A: Isolation spacing prevents impedance coupling, ensuring stable behavior when digital contact lines and analog loops coexist within the same wiring nest.
Field Installation Guidelines
- Maintain shield continuity on analog and digital wiring to reduce induced noise from adjacent high‑current conductors.
- Verify correct landing of excitation, return, and signal conductors before energizing the panel.
- Ensure backplane connectors are fully seated to maintain stable control‑signal timing.
- Route digital contact wiring separately from analog loops to avoid impedance coupling.
- Inspect terminal surfaces for contamination or mechanical wear prior to installation.
