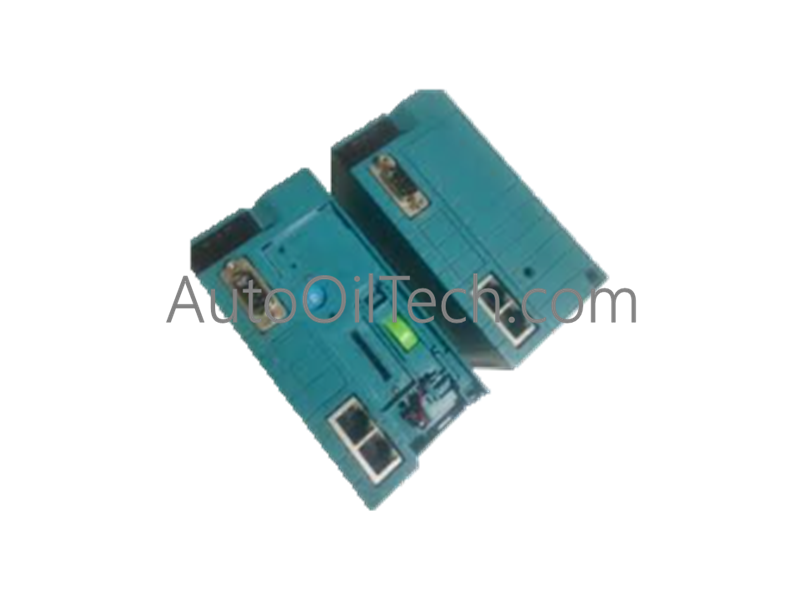

Yokogawa NFBU050-S15 FCN-RTU Base Module

The Yokogawa NFBU050-S15, also cataloged as the NFBU050 Base Module, operates as a dedicated hardware component for backplane bus routing and module mounting within Yokogawa FCN-RTU autonomous controller systems. The short base assembly establishes direct physical and electrical interconnections for low-power remote terminal unit modules in space-restricted control cabinets. It routes system power distribution and local data bus communication across the backplane without causing transmission signal latency.

Suffix Breakdown & Model Matrix

Hardware Specifications

Channel-to-Channel Isolation and Bus Signal Integrity

The Yokogawa NFBU050-S15 backplane design incorporates channel-to-channel isolation trace topology to prevent field noise propagation across installed I/O cards. Operating within low-power FCN-RTU remote control nodes, the base module maintains signal line shielding against high-frequency electromagnetic interference (EMI). The integrated power traces distribute DC logic voltage while supporting pass-through for 4-20 mA HART loop protocol signals, preventing crosstalk between field instrumentation paths and primary backplane communication channels.

Frequently Asked Questions

Q: What mounting hardware is required to secure the Yokogawa NFBU050-S15 base module?

A: The NFBU050-S15 is equipped with integrated mounting clips designed for standard 35 mm DIN rail installation inside control enclosures.

Q: Can the Yokogawa NFBU050-S15 base module be installed in hazardous locations requiring explosion-proof certification?

A: No, option code 5 specifies a basic hardware build that lacks explosion-proof rating certifications for hazardous classified zones.

Q: How does the short base architecture affect module capacity in compact cabinets?

A: The short base footprint optimizes backplane length, allowing full FCN-RTU bus connectivity in high-density or spatial-constrained field control cabinets.

Field Installation Guidelines

1. Snap the NFBU050-S15 base module firmly onto a grounded 35 mm DIN rail until the spring-loaded locking latches engage completely.
2. Verify that the DIN rail is continuously bonded to the main cabinet protective earth (PE) bar using a heavy gauge copper jumper.
3. Align adjacent FCN-RTU expansion bases or power modules with the side connector guides before sliding them together to complete backplane bus coupling.
4. Insert I/O and CPU cards straight into their designated base slots, ensuring top and bottom retaining levers click into place.
5. Maintain a minimum vertical clearance of 50 mm above and below the base module to facilitate passive thermal dissipation.
